6. The inverter needs to be installed on a firm and sturdy surface, such as wall and metal bracket etc.
7. The installation surface should be perpendicular to the horizontal line. Ensure it is mounted with a tilt angle
backwards of no more than 15° to facilitate heat dissipation. Refer to Figure 9.
8. The installation should ensure that the inverter is reliably grounded, and the material of grounded metal
conductor should be consistent with the metal material reserved for the grounding of the inverter.
Ensure there is sufficient space for heat dissipation. In generally, below space requirement should be met:
Side
Left / Right
Top / Bottom
www.phocos.com

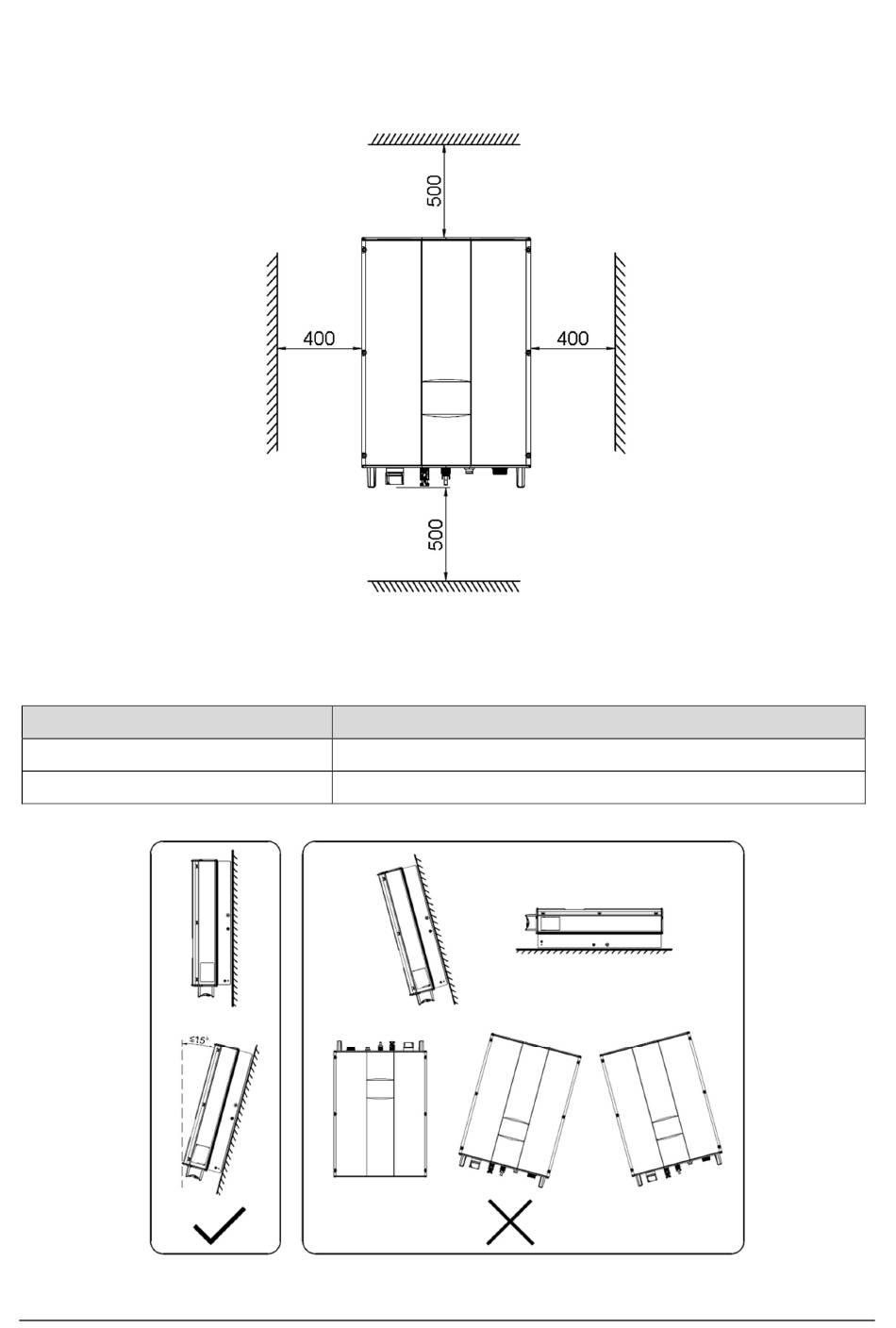

Figure 8: Installation location space around inverter (mm)
Minimum Clearance
400 mm
500 mm
Figure 9: Installation orientation
