Before Installation - Phocos Any-Grid Series User And Installation Manual

No. Name
1 Inverter
2 Installation bracket
3 User and installation manual
4 Assembling bolt M5x20
5 Expansion bolts M6x60
6 Communication connector
7 DC connector (PV)
8 AC connector

Before Installation

Installation Tools
No. Installation Tool
1 Marking pen
2 Electric drill
3 Hammer
4 Monkey wrench
5 Allen driver
6 Straight screwdriver
7 Megger
8 Multimeter
9 Electric soldering iron
10 MC4 connector wire crimper
Installation Location
1. The height of the installation position should ensure that the line of sight is at the same level as the LCD for
viewing the parameters of inverter conveniently.
2. Select a well-ventilated place sheltered from direct sun radiation and rain.
3. Allow sufficient space around the inverter to enable easy installation and removal from the mounting
surface and air convection. Refer to Figure 8.
4. The ambient temperature of installation should be -25 °C ~ 60 °C
5. The installation site should be away from electronic devices which can generate strong electromagnetic
interference.
www.phocos.com

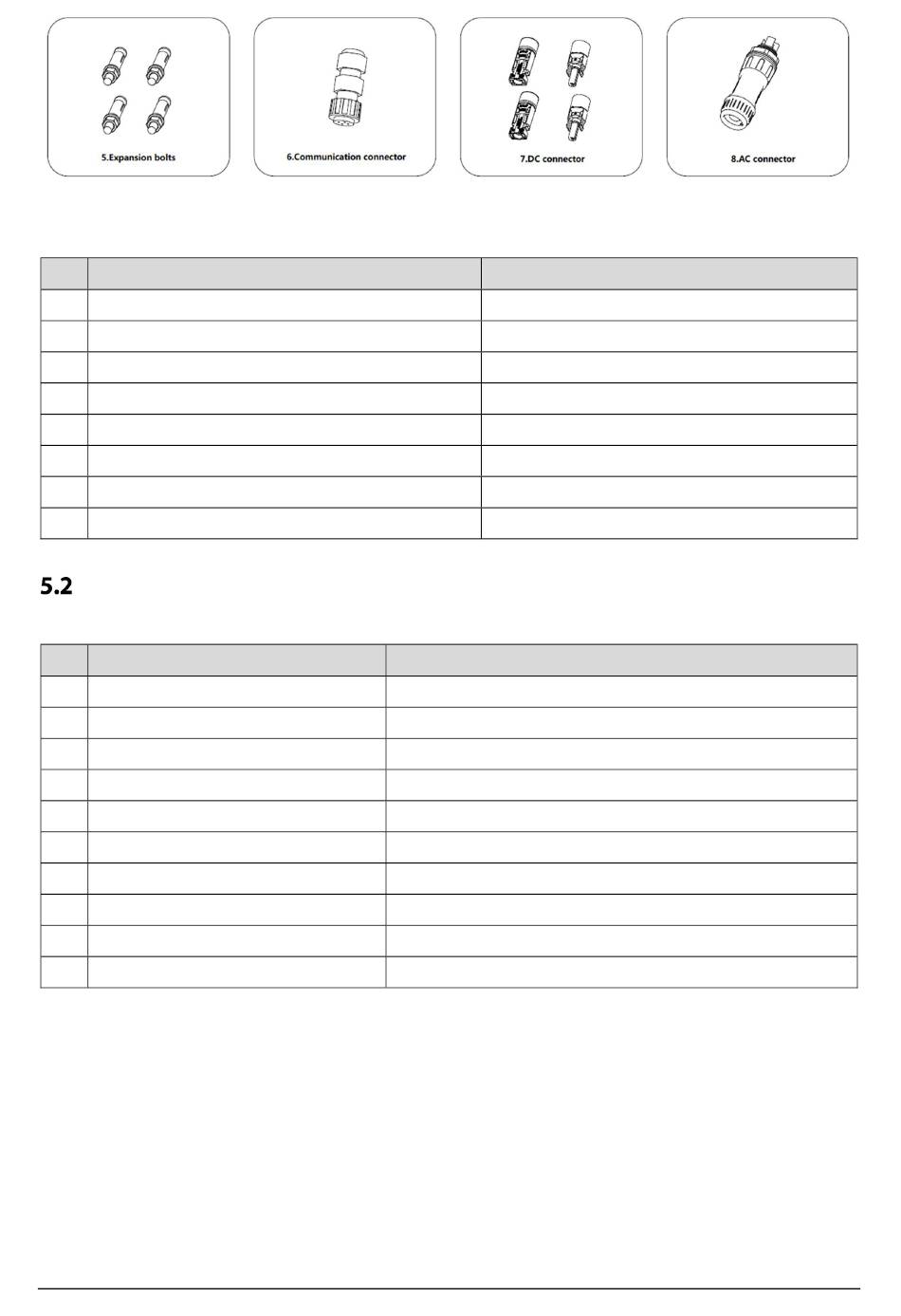

Figure 7: Inverter packing list
Quantity
1 pc.
1 pc.
1 pc.
2 pcs.
4 pcs.
1 pc.
2 pairs
1 pc.
Instruction
Mark the installation hole
Drill in the bracket or wall
Hammer on the expansion bolts
Fix the installation bracket
Fasten the screws, remove and install AC wiring box
For AC wiring
Measuring insulation performance and impedance
Check the circuit and AC and DC voltage
Solder communications cable
Crimp DC / PV terminals
10 | P a g e
