AMP Research Power Step Installation Manual page 9

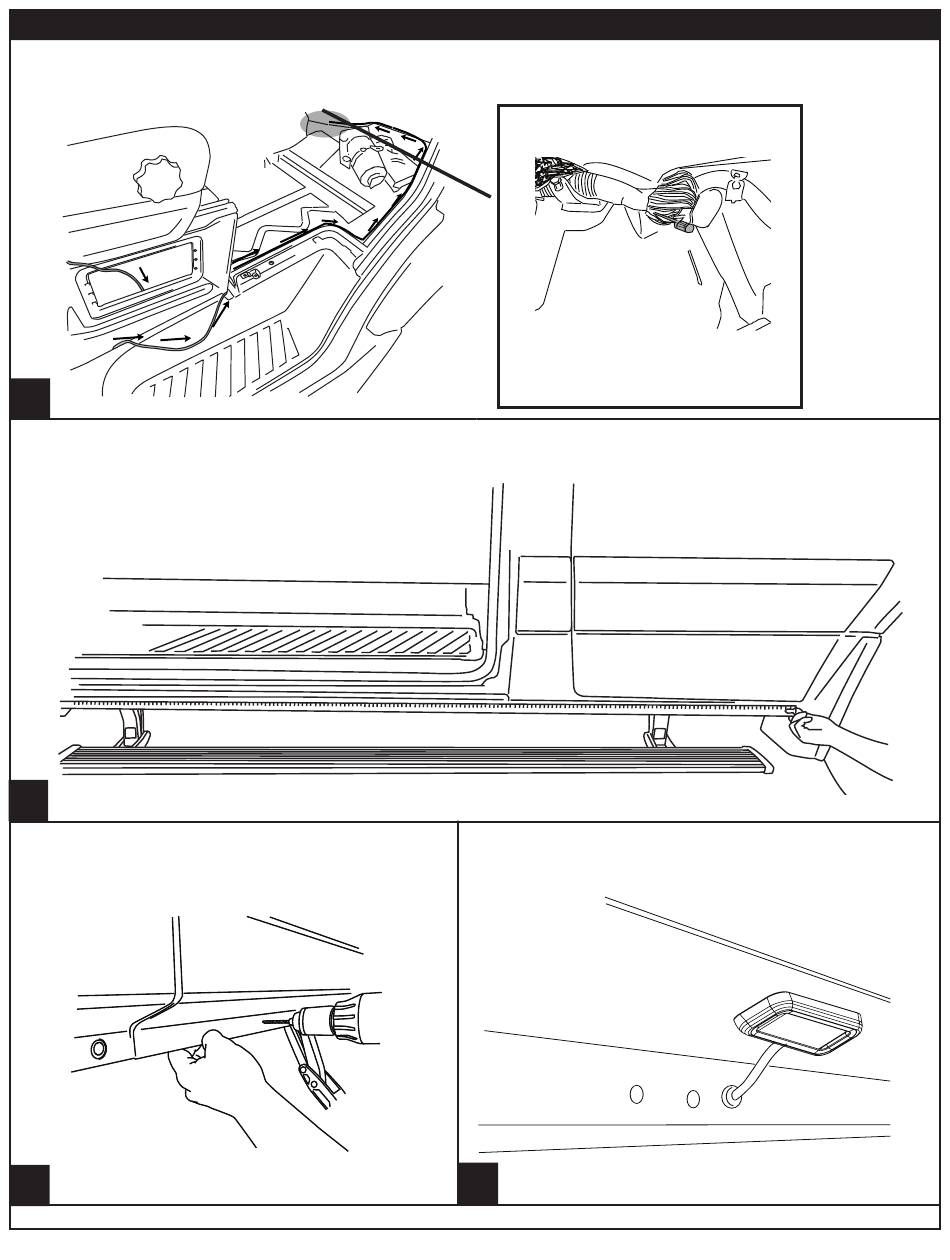

Front Door: Located in the loom in passenger foot well. Remove mat covering jack. Route Blue Trigger wire
up through opening in side of seat base. Route under floor paneling and route up towards foot well. Factory
wire will be Blue with a Green stripe
23 28
Measure from the front edge of door line on the pinch weld to the specified lengths below. Measure at 12"
for the front LED Light and 60" for the rear LED Light.
30
28
24
Drill a 9/32" hole through the pinch weld at marked
locations. Debur all holes.
32 28
25
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P – S P R I N T E R
T M
Affix lamp (16) to rocker panel surface. Make sure
lamp is affixed to a flat, clean surface.
28
26
33
9/10 IM75163 rev 01.02.20
