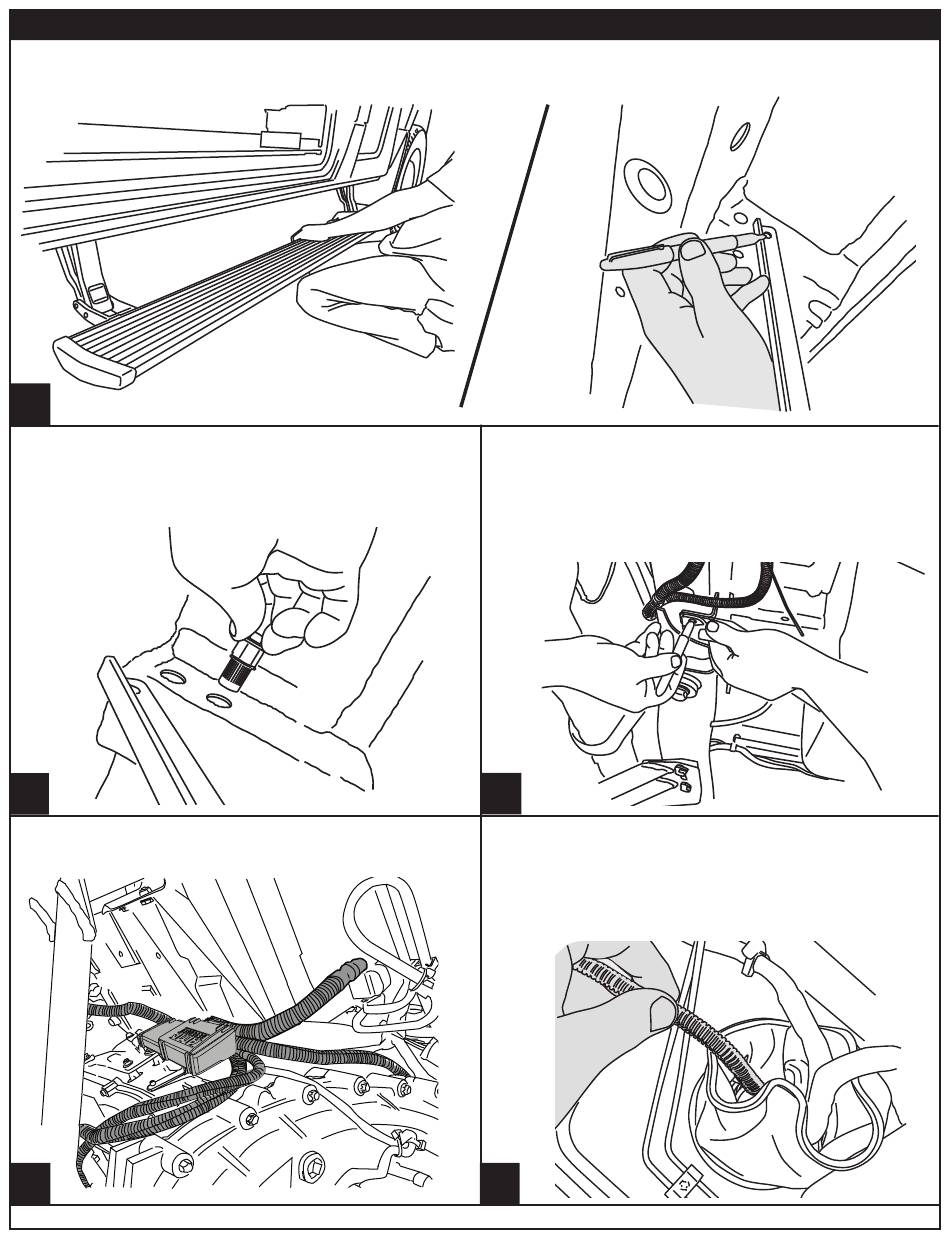

Using light pressure pull out from the inside edge of the running board to get the step in the level position.
Hold the running board in position. Mark upper hole location in rear bracket.
10
12
Remove bracket bolts on side of upper mount to rotate
out of way. Center punch, Pre drill with 1/8" and then
final drill to 17/32". Install rivet nut. Install longer flange
bolt and reassemble bolts on bracket at linkage.
10
13
Mount controller under vehicle attach to loom that runs
along the bottom of the battery box.
10
15
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
–
S P R I N T E R
T M
With front bracket in place mark hole. Center punch,
Pre drill with 1/8" and then final drill to 17/32". Install
rivet nut. Install longer flange bolt and reassemble
bolts on bracket at linkage. Note: 2 Washers
are provided to space out multiple layers of
sheetmetal.
10
10
14
Run Positive and negative terminals up through the
large rubber boot just rearward of where controller
is mounted. Zip tie around boot may need to be
removed to route wire through. If so use one
supplied and re-seal boot.
10
16
7/10
IM75163 rev 01.02.20
