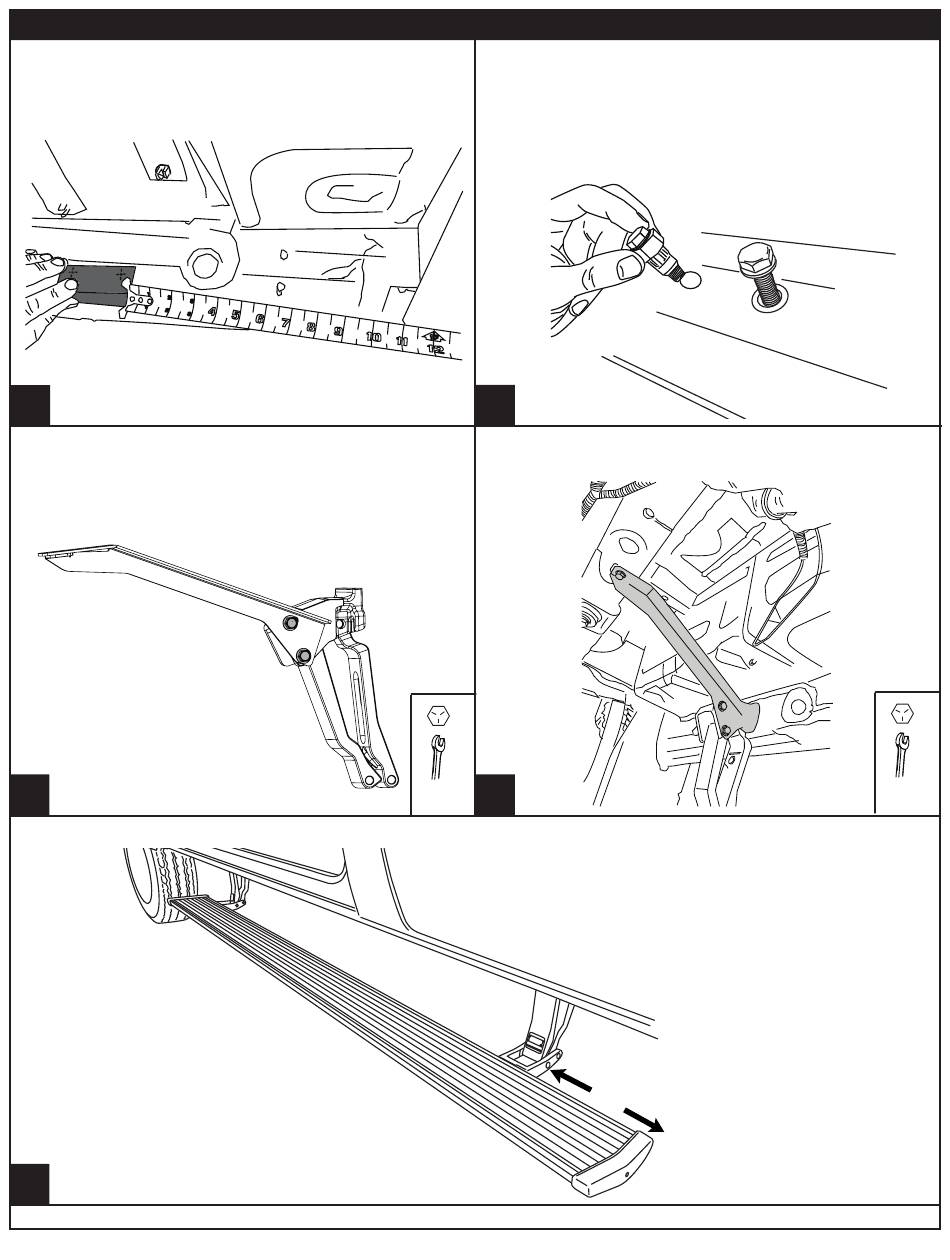

Front Idler Linkage Install: Locate front linkage
mounting position. Location is approx 11" forward of
tab in unibody crossmember as show. Tape template
in place and center punch holes.
1
7
Using supplied Flange bolts install bracket onto Idler
linkage Upper mount. Do not tighten to allow for
adjustment. Use shorter bolts to prevent bolt and
linkage arm interference.
2
9
Install Running board onto lower mounts. Measure 9 inches from end of board to side of linkage as shown
below.
4
11
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
–
T M
Pre Drill holes with an 1/8" Drill and then drill to
17/32". Then insert rivet nuts into position. Refer
to install card in rivet nut tool bag. Then pre
thread m8 screws and washers into position
1 8
Set front idler linkage over bolts. Using a 13mm box
wrench snug up two bolts on linkage.
3
10
13mm
6/10
S P R I N T E R
Warning: Rivet nuts not
properly collapsed will not
hold securely to sheet metal.
9"
IM75163 rev 01.02.20
13mm
