Final System Check - AMP Research Power Step Installation Manual

Using supplied butt connectors (17), connect the
lamp wires. Red to Red, Black to Black
28
27
Reinstall fuse.

FINAL SYSTEM CHECK

Check that all doors activate the PowerStep and the LED lights work when doors open and close.
NORMAL OPERATION: When the doors open, PowerStep automatically deploys from under the vehicle.
When the doors are closed, PowerStep will automatically return to the stowed/retracted position. Note that
CORRECT OPERATION OF LIGHTS: All four lamps will illuminate upon opening any door of vehicle. Lamps
will stay on until restowing of both Power Steps or until 5 minutes has expired with the doors open. When the
lights timeout after 5 minutes, they can be reillumintated by closing and opening any door of vehicle.
28
29
www.amp-research.com
A M P R E S E A R C H P O W E R S T E P
17
Check that all doors activate the Power Step and the LED Lights work when
doors open and close. Reinstall any remaining trim panels.
– S P R I N T E R
T M

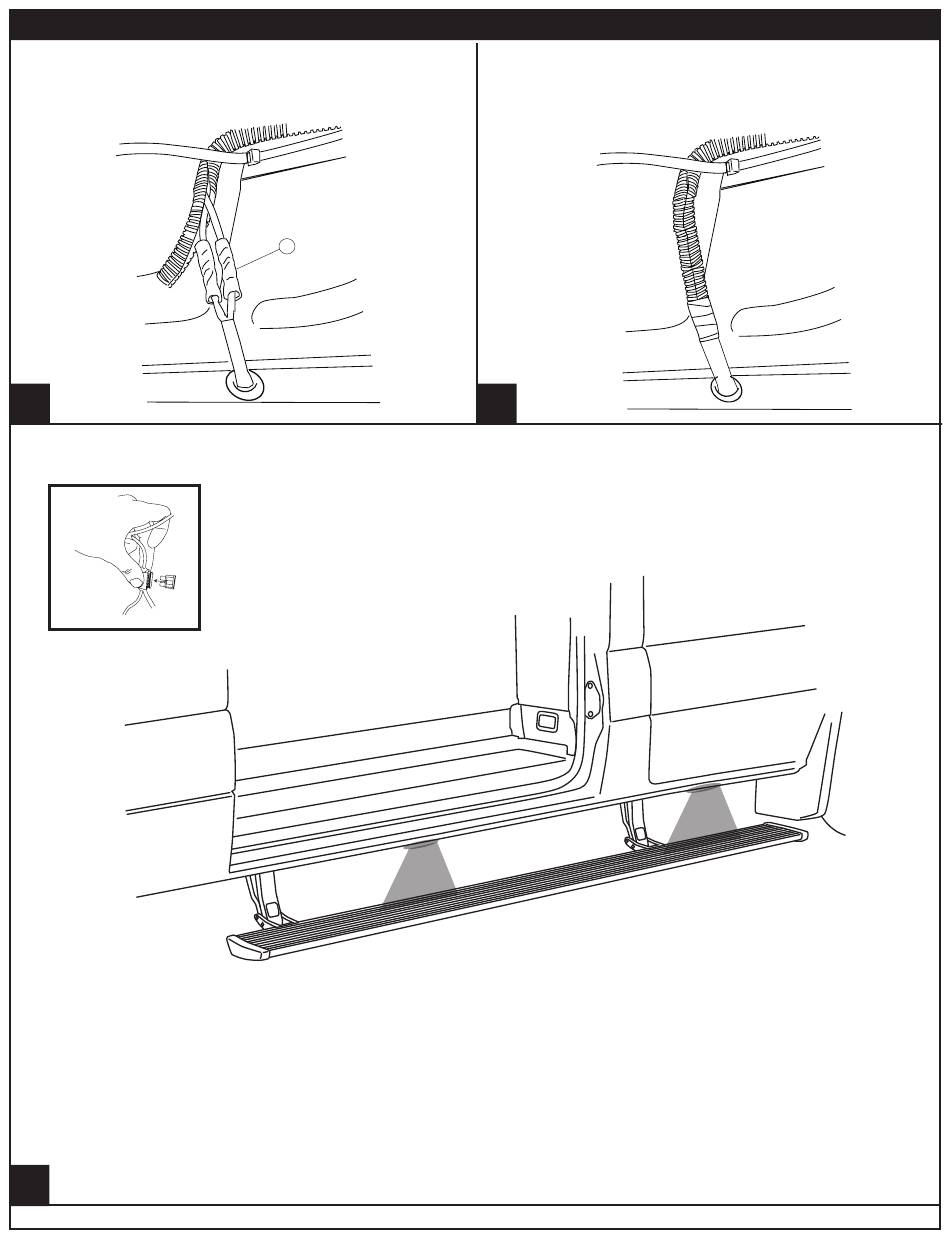

Close and wrap with conduit and electrical tape.
Secure all loose wires with cable ties, with lamp
wires pulled upward to avoid any wire snagging.
29
28
10/10 IM75163 rev 01.02.20
