AMP Research Power Step Installation Manual
Hide thumbs
Also See for Power Step:
- Installation manual (16 pages) ,
- Installation manual (10 pages) ,
- Installation manual (11 pages)
Advertisement
Quick Links
A U T O M A T I C R E T R A C T I N G R U N N I N G B O A R D
!
The manufacturer strongly recommends that this product
be professionally installed.
!
This product is designed to enhance the appearance of the
vehicle. Do not rely in any way on the components of this
product to contain occupants within the vehicle, or to
protect against injury of death in the event of an accident.
Never operate vehicle in excess of manufacturer's
specifications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely, all installation instructions
provided when installing this product. Failure to do so
could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling, check to
make sure it has been properly installed.
WARNING
!
Failure to carefully follow the electrical installation steps
could result in severe electrical shock which could harm
the installer and/or damage the vehicle.
www.amp-research.com
WARNING
WARNING
I N S T A L L A T I O N G U I D E
VEHICLE APPLICATION
Chevrolet SIlverado /
GMC Sierra
1999-2005
Product # 10-03057-10 (Crew Cab)
10-03057-11 (Extended Cab)
Chevrolet Tahoe / Suburban
Chevrolet Avalanche
GMC Yukon / Yukon XL
Cadillac Escalade Ext / ESV
2001-2005 (2003-2005 for Cadillac)
Product # 10-03036-10 (Suburban,
Yukon XL, Avalanche w/o cladding,
Escalade)
10-03036-11 (Avalanche w/ cladding,
Tahoe, Yukon)
CONTENTS
Parts List
Tools Required
Installation
Warranty
TECHNICAL SUPPORT
AMP Research Customer Service
(888)983-2204
1/11
PG
2
4
5
11
IM3057 rev 09.27.05
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMP Research Power Step
Summary of Contents for AMP Research Power Step
- Page 1 After installing or reinstalling, check to make sure it has been properly installed. TECHNICAL SUPPORT WARNING AMP Research Customer Service (888)983-2204 Failure to carefully follow the electrical installation steps could result in severe electrical shock which could harm the installer and/or damage the vehicle.
- Page 2 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P USED ON SILVERADO USED ON SILVERADO AND SIERRA AND SIERRA HEAVY DUTIES ONLY.
- Page 3 A M P R E S E A R C H P O W E R S T E P G M C / C H E V R O L E T BRACKET SHAPE VARIES www.amp-research.com 3/11...
- Page 4 A M P R E S E A R C H P O W E R S T E P G M C / C H E V R O L E T 7 mm 13 mm 5 mm 3/16" SILICONE SEALER 1/8"...
- Page 5 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P Steps 1-3 for Heavy Duty Trucks only! For all other vehicles skip to Step 4.
- Page 6 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P CAUTION: Remove step plates on inside of cab and move vehicle wire harnesses out of the way before drilling in Steps 8 &...
- Page 7 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P Remove power fuse. Attach power lead RED Remove left hood support on driver side and wire to positive lead in the junction box.
- Page 8 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P IMPORTANT: Steps 20 and 21 are for Crew Cabs only. Light blue and Green wires will not be used otherwise.
- Page 9 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P Feed longer wire of Step 19 through tube into Pull back the door weather guard.
- Page 10 G M C / C H E V R O L E T A M P R E S E A R C H P O W E R S T E P Replace power fuse. Check that both doors activate the powerstep. Reinstall any remaining trim panels. Repeat the adjustments of Step 12 if the stowed step position is not even.
Need help?
Do you have a question about the Power Step and is the answer not in the manual?
Questions and answers

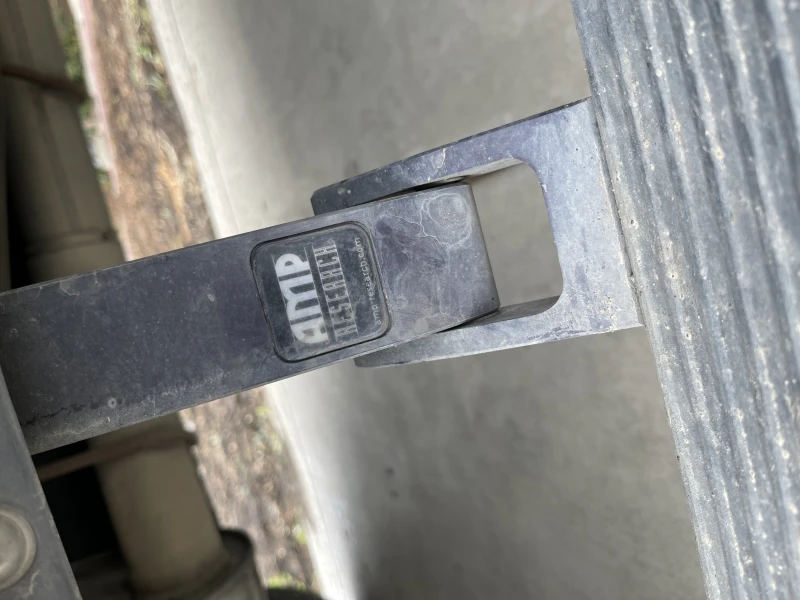

Amp-research power steps only works sometimes
