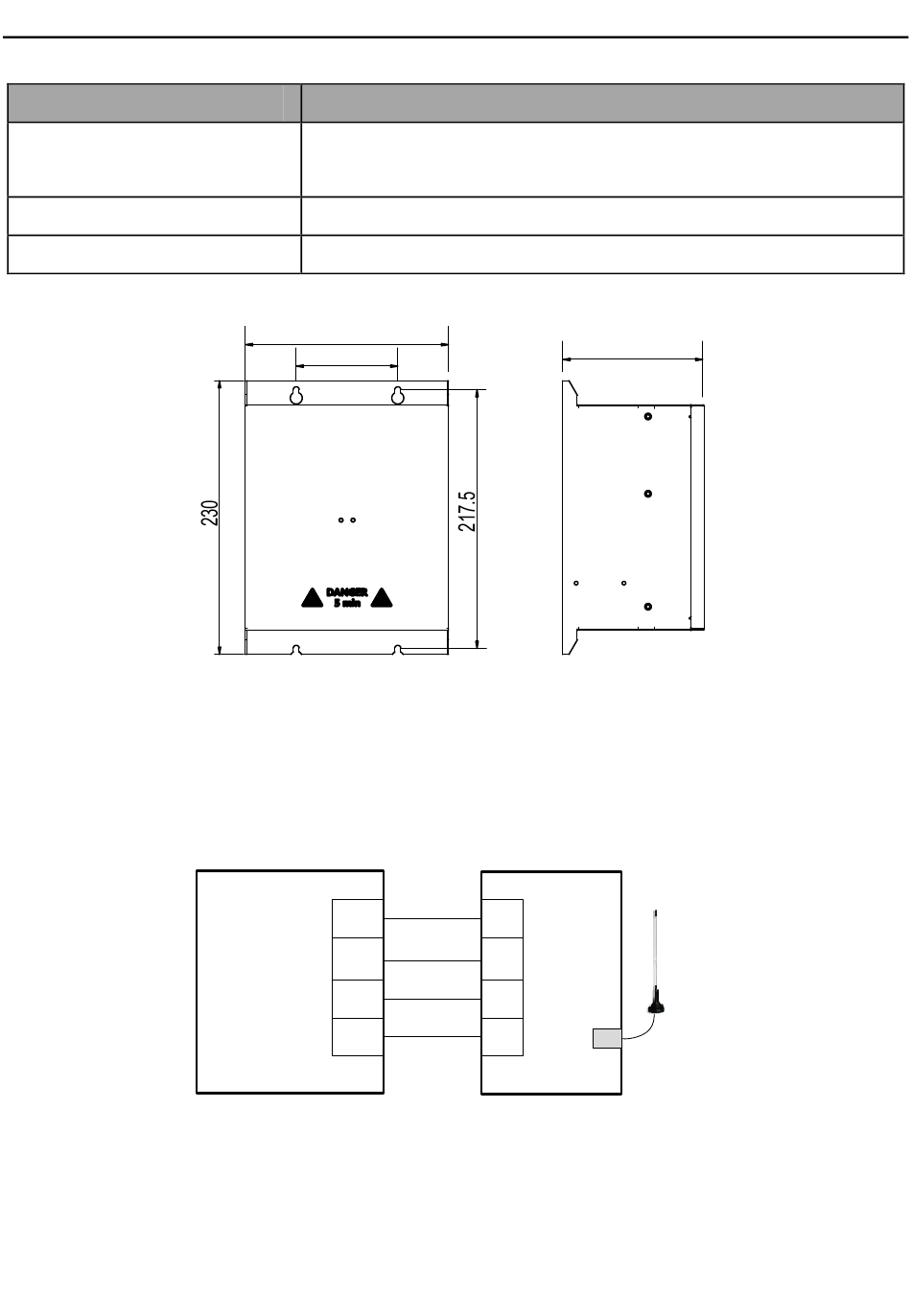

The figure below shows the installation dimensions of the boost module.
A.2 GPRS module and monitoring APP
The pumping VFDs support the installation of the GPRS module to implement remote
monitoring. The GPRS module connects to the VFDs through 485 communication. The VFD
operation state can be monitored on the APP in the mobile phone or web page in real time.
Method for connecting the GPRS to the VFD:
For more information, see the GPRS/GPS adaptor operation guide matching the GPRS
module or contact the local office. When consulting, provide the product models and serial
numbers.
Instruction of LEDs
The boost module has been powered on, and the control
circuit is working.
The boost module is running.
The boost module is faulty.
170
85
RUN FAULT FAULT
24V
COM
GD100-PV
485+
VFD
485-
Figure A-2 Connecting the GPRS module to the VFD
Description
24V
GND
GPRS
A
module
B
66
Options and use
117
Antenna
