Setup using the web interface
4.1.5

To deploy, stow, stop or jog the antenna

On this page you can deploy, stow or stop the antenna.
• Deploy: Prepare the antenna for pointing after it has been stowed, stopped or jogged.
• Stow: Stow the antenna before disassembly.
• Stop: Stop the antenna immediately.
• Jog: Move the antenna in azimuth and elevation.
There is also a reset button for resetting the azimuth and elevation offset. An offset of 0
corresponds to the current position.
With keypad and display
1. Press OK to scroll to the Command page and press OK again to access page.
2. Press  until Deploy is selected, and press OK to initiate the selection.
What to expect during deployment:
The antenna system starts up and goes through a brief initialization procedure:
POWERING UP
ANTENNA POST
MANUAL POINTING
ACQUISITION OK
With the web interface
1. Connect a PC to the LAN1 connector.
2. Open an Internet browser and type the default IP address: http://192.168.0.1, user
name admin and the password 1234.
3. From the DASHBOARD, go to the page SERVICE > ANTENNA.
4. Click the button Deploy, Stow or Stop.
5. To jog the antenna click Enable jog mode. Homing must be finished.
4-
10

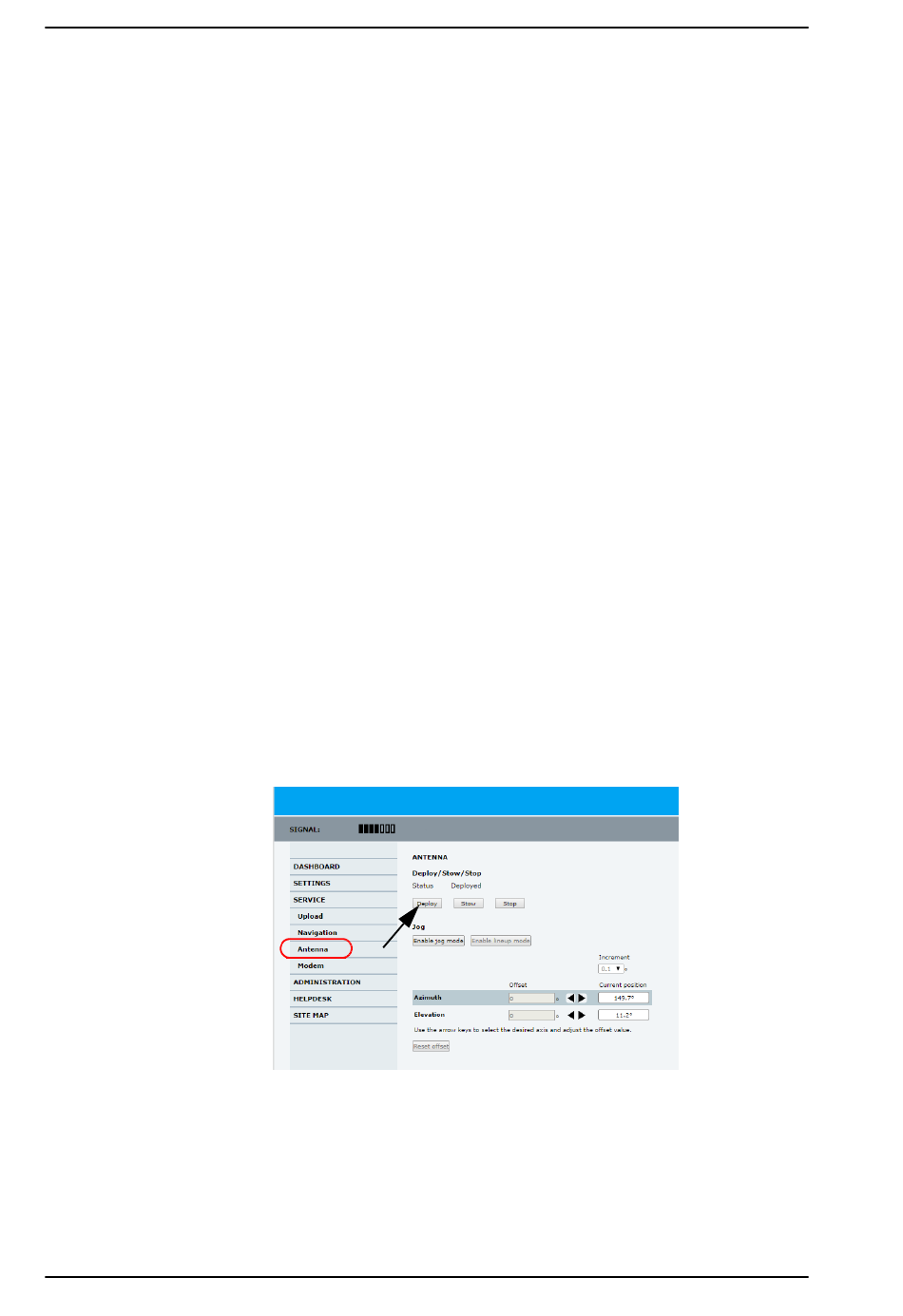

Figure 4-7: Web interface: SERVICE > Antenna, Deploy
