Start up with auto-acquisition

13.Connect the AC Power Adaptor to the electronics enclosure.
14.Use the four RJ-45 ports for making IP-data connections; there are two separate
functions accessible using these ports:
LAN1 (leftmost) for access to the web interface (setup and troubleshooting)
LAN2 to LAN4 for Internet use etc.
Note
3.3 Start up with auto-acquisition
The system is set to automatically point and acquire a connection.
To start up the antenna, do the following:
1. Press the On/Off button.
3-6

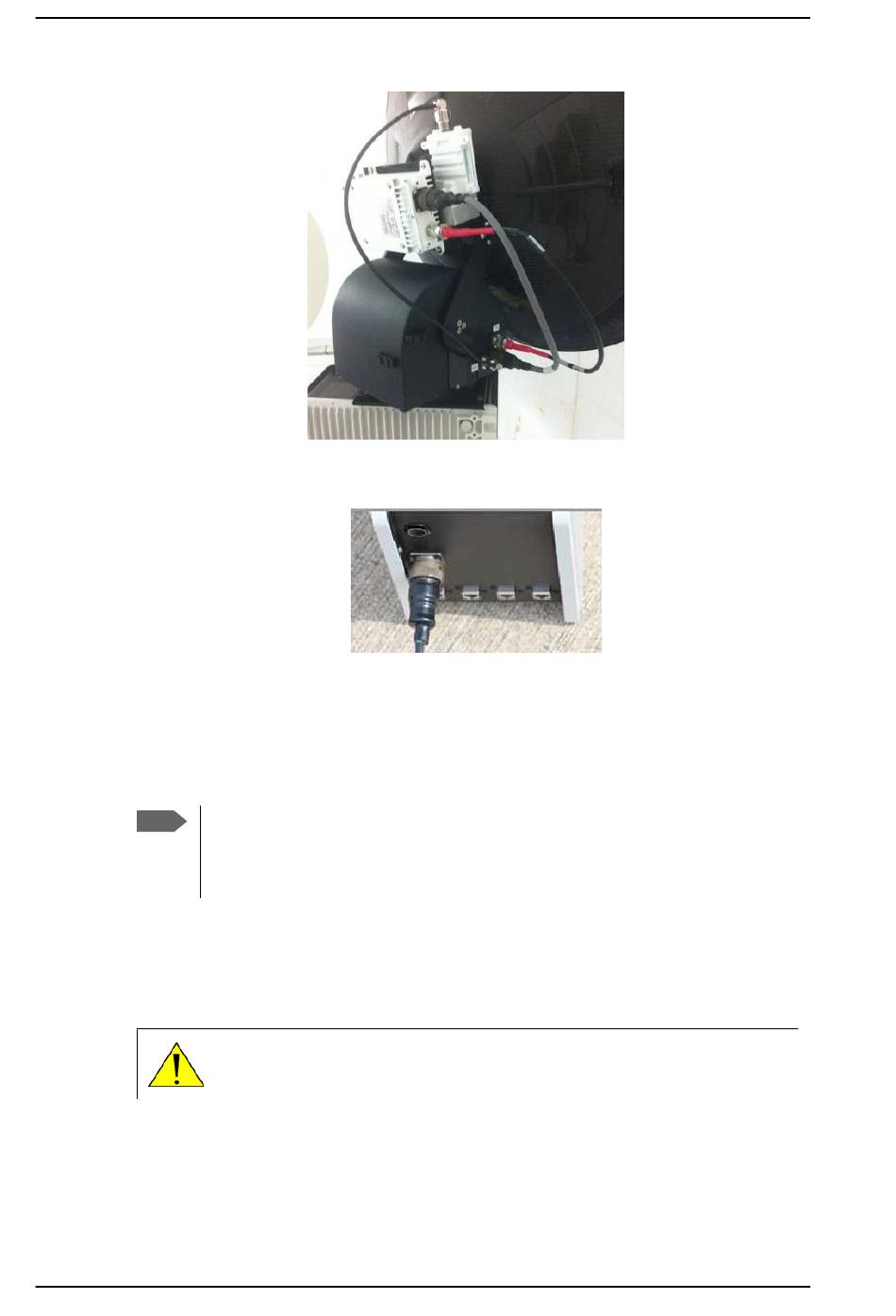

Figure 3-8: Tx, Rx RF and BUC cables
Figure 3-9: AC power connection
The three standard LAN ports (LAN2 to LAN4) are for Internet and other user data
traffic. The web interface can only be accessed via LAN1. Wi-fi connection must
be configured, see To configure the LAN network on page 4-6 and WLAN settings
on page 4-9.
WARNING! Be aware of pinch points while the antenna is being
positioned, deployed or stowed.
Chapter 3: Assembly & start up 98-143492-B
