7. Re-engage the thumbscrews to lock the brackets into place.
8. Unpack the four interchangeable panels.
9. Release the four locking mechanisms on the reflector hub, insert the two bottom panels
and re-secure the locking mechanism on the reflector hub.
10.Latch the two bottom panels using the two smaller latches along the edge of the each
panel to carefully secure the reflector panels into place.
11.Insert and latch the two upper panels.
12.Connect the three cables as shown in the following figure:
• BUC Power grey cable to MIL connector
• Tx: IFL RG-6 red cable to BUC's Transmit port
• Rx: IFL RG-6 blue cable to LNB's Receive port.
98-143492-B

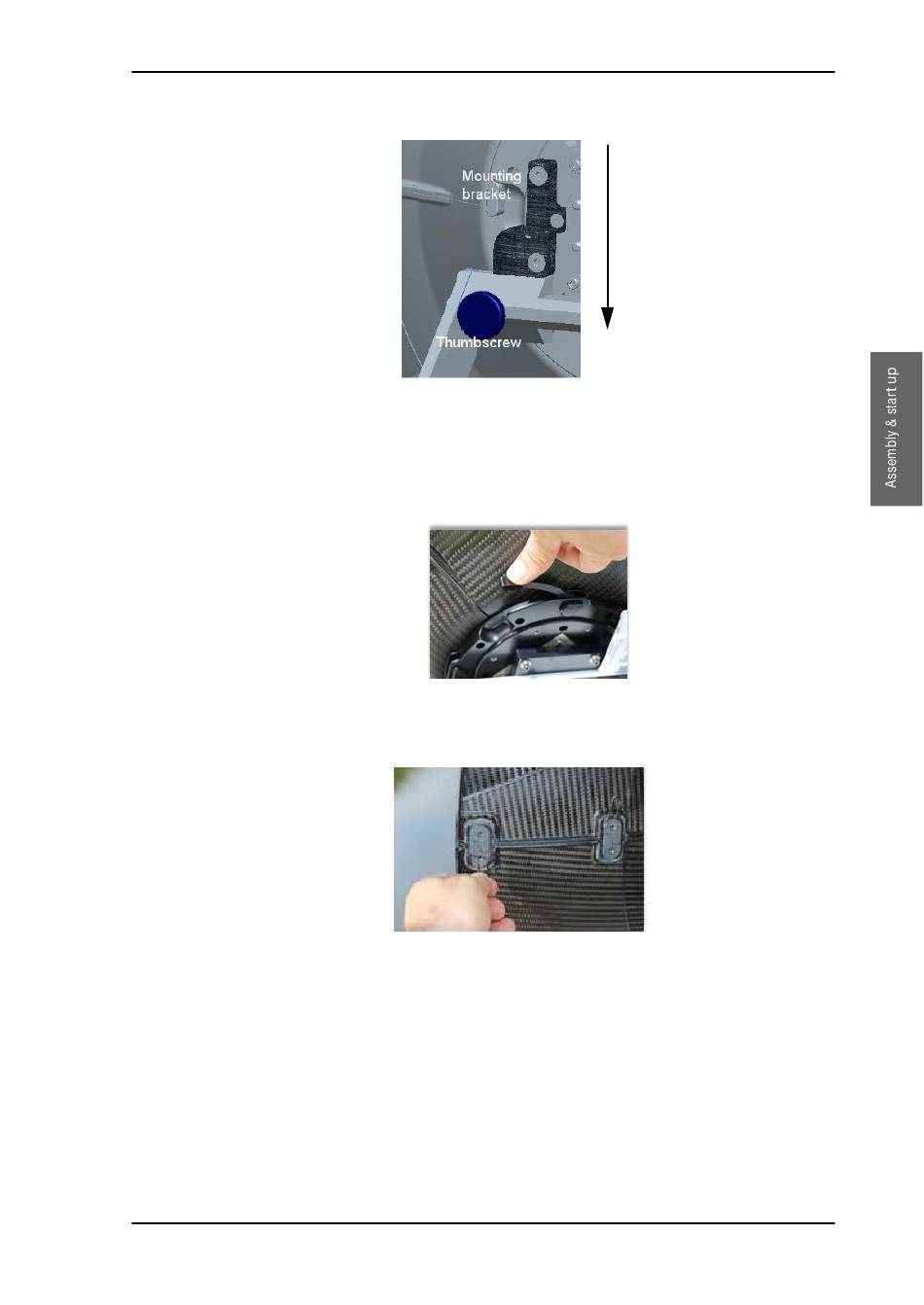

Figure 3-5: To mount the antenna positioner
Figure 3-6: Center hub with four latches for the 4 panels
Figure 3-7: Latches to interconnect the four panels
Chapter 3: Assembly & start up
To assemble the EXPLORER 5075GX
3-5
