Appendix E DC Power
Supply Installation
This appendix describes the installation of the DC power supply wiring for Option 3.
Make sure all items are available to prepare the cable entry housing. Descriptions and
diagrams of the items included with the router or necessary for the DC wiring are found in
Table E-1. "At a Glance" instructions are in
steps in Table E-2 on page
Name
DC Terminal block
3 DC input wires
Terminal block plug
Cable Entry Housing
Strain Relief and
Cable Tie
Installation, Support, and Maintenance Guide
Evolution X7 Satellite Router
42.

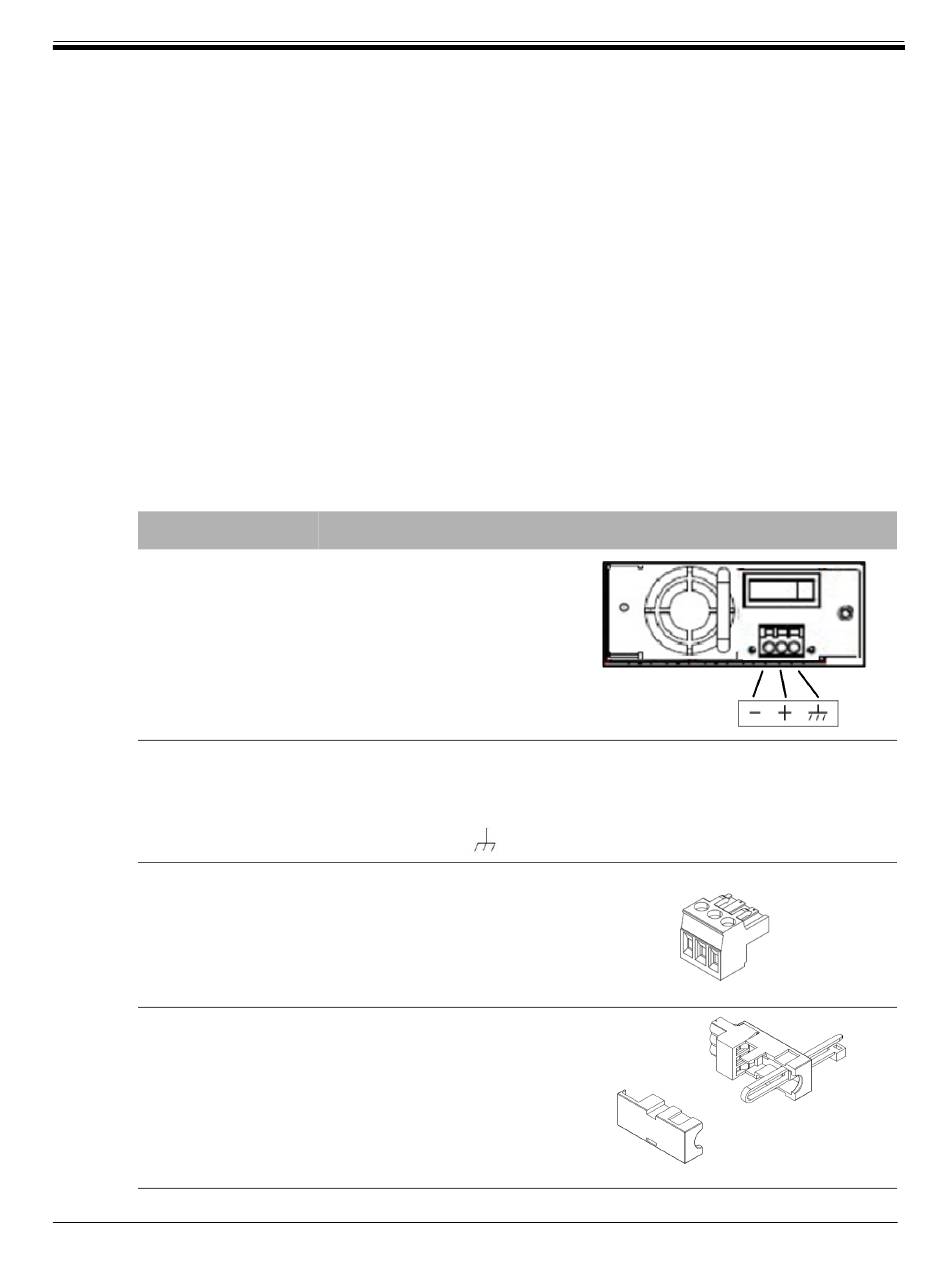

Table E-1. X7 Router DC Power Module Connector Parts

Description
Rear panel, DC terminal block
area
Appropriately labeled wires,
such as:
• red = positive +
• black = negative -
• blue = ground -
Included in kit, P/N Phoenix
1779848
Cable Entry Housing Strain
Relief and Cable Tie, included
in kit, P/N 1803947, and cable
tie
Figure E-1 on page 42 with corresponding detailed
Diagram or Reference
14-18 AWG (American Wire Gauge)
Reference:
http://en.wikipedia.org/wiki/American_
wire_gauge
41
