Summary of Contents for iDirect Evolution X1
- Page 1 Installation and Safety Manual Evolution X1 Outdoor Satellite Router Router Products July 24, 2012...
- Page 2 Copyright © 2012 VT iDirect, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. Information contained herein is subject to change without notice. The specifications and information regarding the products in this document are subject to change without notice. All statements, information, and recommendations in this document are believed to be accurate, but are presented without warranty of any kind, express, or implied.
- Page 3 To verify the latest version, access the TAC Web site at http://tac.idirect.net. Who Updated? Revision Date Released Reason for Change(s) July 24, 2012 Initial release. JScott iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
- Page 4 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 5: Table Of Contents
4.1 X1 Outdoor Satellite Router Connectors ......14 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... - Page 6 5.4.1 Additional Components Normally Required ......23 5.5 Installing the iDirect Evolution X1 Outdoor Satellite Router ....23 5.5.1 Pre-Installation Guidelines for Mounting Configurations .
- Page 7 B.7 Declaration of Conformity ........56 Appendix C. Preparing the Coax Cable ..... 57 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
- Page 8 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
- Page 9 Figure 16. AC Power Gland Assembly ....... . . 35 Figure 17. iDirect Evolution X1 Outdoor Satellite Router Product Label ... 51 Figure 18.
- Page 10 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
- Page 11 Table 5. RF Specifications .........12 Table 6. iDirect Evolution X1 Outdoor Satellite Router Panel ....14 Table 7.
- Page 12 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 13: About This Manual
Intended Audience This manual is intended for use by the VSAT (Very Small Aperture Terminal) equipment installer, System Engineer, and Network Operator responsible for maintaining the iDirect Network. Only qualified service personnel should install and operate the X1 Outdoor Satellite Router solutions. -
Page 14: Document Conventions
Document Conventions This section illustrates and describes the standard conventions used throughout this document. Review the documentations conventions table prior to using this manual—it provides information on how to interpret standard conventions used in iDirect documents. Convention Description Example Used when the user is... -
Page 15: Safety Definitions
Getting Help iDX Software user’s guides, installation procedures and guides, an FAQ page, and other documentation that supports iDirect products, are available on the TAC Web site located at: http://tac.idirect.net. To find answers to questions or information, contact the iDirect Technical Assistance Center (TAC) at (703) 648-8151. - Page 16 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 17: Introduction
1 Introduction The iDirect Evolution X1 Outdoor Satellite Router is a cost-effective remote bundle ideal for large, narrowband networks for SCADA, Point of Sale and ATM applications. The X1 Outdoor Satellite Router features DVB-S2/ACM and TDMA, basic routing, VLAN functionality and Quality of Service (QoS), and is embedded in a IP67 weatherproof enclosure enabling an extended temperature range, and passive cooling. - Page 18 Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 19: Safety Information
2 Safety Information Follow the safety guidelines in this chapter carefully during installation of the iDirect Evolution X1 Outdoor Satellite Router. These guidelines help to protect the X1 Outdoor Satellite Router from potential damage and help to ensure personal safety. These safety measures have been translated into multiple languages (see Appendix A,... -
Page 20: Installation Guidelines
är kopplad till kabel-TV nät kan i vissa fall medfőra risk főr brand. Főr att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator finnas mellan utrustningen och kabel-TV nätet. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 21: Electrical Safety
Electrical Safety Follow the warnings and cautions in Table 2 on page 6 to ensure personal safety and protect the equipment from electrical hazards. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 22: Physical And Environmental Considerations
Route power supply cords so they are not likely to be walked on or pinched by items placed upon or against them; pay particular attention to cords at plugs, convenience receptacles, and at the point where they exit the product. • Overloading iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 23: Safety Guidelines To Observe During Servicing
• Accessories To avoid personal injury or damage to the iDirect Evolution X1 Outdoor Satellite Router, do not place the chassis on any unstable rack, cart, stand, table, or bracket. Any mounting of the product should follow the manufacturer’s instructions. -
Page 24: Conditions Requiring Service
• If the X1 Outdoor Satellite Router has been dropped or if the chassis has been damaged. • When the X1 Outdoor Satellite Router exhibits a distinct change in performance. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 25: Specifications
X1 Outdoor Satellite Router. This chapter contains the following sections: • Section 3.1, Mechanical and Environmental Specifications, page 10 • Section 3.2, Power Specifications, page 11 • Section 3.3, RF Specifications, page 12 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 26: Mechanical And Environmental Specifications
Mechanical and Environmental Specifications Mechanical and Environmental Specifications Ensure that the installation site can accommodate the mechanical and environmental specifications of the X1 Outdoor Satellite Router. The iDirect Evolution X1 Outdoor Satellite Router mechanical and environmental specifications are presented in Table Table 3. -
Page 27: Power Specifications
4% (recovery within 1% less than 500msec for 50-75% and 75-50% load step) AC Input Connector IP67 AC Connector AC Power Cord 18 AWG, country dependent, see Table 11 on page 20 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 28: Rf Specifications
RF Specifications RF Specifications The iDirect Evolution X1 Outdoor Satellite Router RF specifications are described in Table Table 5. RF Specifications Category Description Bundled ODU/Antenna BUC: Ku-Band 1.5 W or 3W universal (13.75 - 14.5 GHz) LNB: Ku-Band universal PLL (multiple sub-bands) -
Page 29: Physical Interfaces
This chapter contains the following sections: • Section 4.1, X1 Outdoor Satellite Router Connectors, page 14 • Section 4.2, Power Module Unit Connectors, page 16 • Section 4.3, Ethernet Cable Pinout Details, page 17 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -

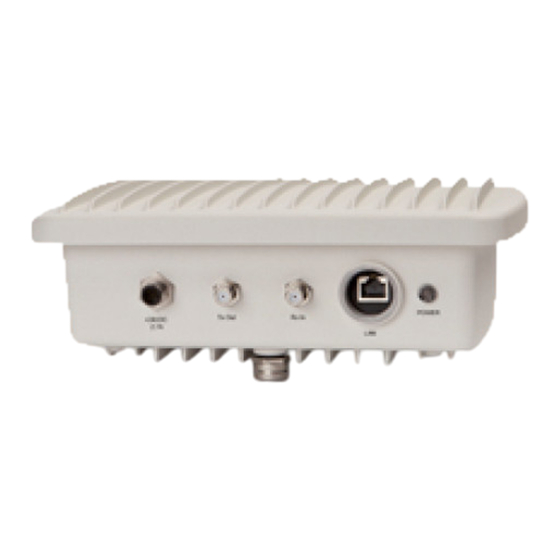

Page 30: X1 Outdoor Satellite Router Connectors
AC or DC Power TX Out 75 ohm, F-Type L-Band Transmit signal to Block Up Converter (BUC) capable of 10 MHz Reference and +24 VDC @ 1.5 Amps maximum over operating temperature iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 31: Figure 3. Reset Button Within The Rj45 Lan Connector
X1 Outdoor Satellite Router Connectors Table 6. iDirect Evolution X1 Outdoor Satellite Router Panel (continued) Label Connector Type Interface and Purpose RX In 75 ohm, F-Type L-Band receive signal from LNB capable of 22KHz DiSEqC tone and +24VDC @ 170mA maximum over... -
Page 32: Power Module Unit Connectors
The Power Module interface connectors are shown in Figure 4 and the pin assignments for the AC power connector are defined in Table 8 on page 17. Figure 4. Power Module with Connectors Labeled iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 33: Ethernet Cable Pinout Details
Ethernet port and Figure 5 shows the pin order. Table 9. Ethernet Port Pinouts RJ-45 Pin Description Figure 5. RJ-45 Cable Connectors, Plug and Receptacle iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... - Page 34 Ethernet Cable Pinout Details iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 35: Installation
5 Installation This chapter describes the guidelines and procedures for installing the iDirect Evolution X1 Outdoor Satellite Router at a VSAT location. This chapter contains the following sections: • Section 5.1, Tools and Supplies, page 20 • Section 5.2, Unpacking iDirect Evolution X1 Outdoor Satellite Router Equipment, page 21 •... -
Page 36: Tools And Supplies
18AWG - 18 American Wire Gauge Reference http://en.wikipedia.org/wiki/American_wire_gauge F-type weatherproof outdoor connectors with weatherproofing gasket (O-ring), such as: Holland SLCU6-Q0, see labeled figures A and B in Figure 22 on page 60 iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 37: Unpacking Idirect Evolution X1 Outdoor Satellite Router Equipment
• Remove the tape and any exterior covering from the box lid. Note: Save the iDirect Evolution X1 Outdoor Satellite Router shipping boxes after unpacking the system. These boxes will be needed in the event of moving or shipping the system in the future. -
Page 38: Other Components Typically Included In An Order
Other Components Typically Included in an Order 3. 2 (two) hardware mounting kits (one for the iDirect Evolution X1 Outdoor Satellite Router and one for the Power Module for wall or pole mounting, see Figure 7 on page 22, items labeled A and E. -
Page 39: Additional Components Normally Required
Installing the iDirect Evolution X1 Outdoor Satellite Router The iDirect Evolution X1 Outdoor Satellite Router can be mounted to a wall or to a pole. This section provides details on how to accomplish the installation. 5.5.1 Pre-Installation Guidelines for Mounting Configurations When installing the X1 Outdoor Satellite Router, follow these guidelines: •... -
Page 40: Installation Procedures For The X1 Outdoor Satellite Router
If the X1 Outdoor Satellite Router and the Power Module are mounted on the same pole, the X1 CAUTION Outdoor Satellite Router should be installed above the Power Module. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 41: Figure 9. Mounting Kit Parts
4 flat washers for M6 screws • 4 spring (lock) washers for the M6 screws • 1 spacer For easy identification, the mounting kit parts are shown in Figure Figure 9. Mounting Kit Parts iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 42: Figure 10. Attaching The Mounting Plate
To mount the X1 Outdoor Satellite Router to a wall, mount the assembly to the wall using the four wood screws and wood/gyprock plugs as shown in Figure Figure 11. Satellite Router Wall Mount iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 43: Mounting The External Power Module To A Wall Or Pole
4 wood screws • 4 wood/gyprock plugs (anchors) • 4 M5x20 screws • 4 flat washers for M5 screws • 4 spring (lock) washers for M5 screws • 1 spacer iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 44: Figure 13. Mounting The Power Module
X1 Outdoor Satellite Router if installed on poles. Attaching the Mounting Plate To mount the Power Module, first attach the mounting plate using the M6x20 screws as shown Figure Figure 13. Mounting the Power Module iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 45: Figure 14. Power Module Wall Mount
Figure 14. Power Module Wall Mount Pole Mount Mount the Power Module assembly to the pole as shown in Figure 15 (horizontal and vertical mounting options are shown). Figure 15. Power Module Pole Mount iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 46: Connecting The Ethernet Lan Cable
RJ45 clip is already on the cable, the gasket can be easily opened and placed around the cable. C - Lock nut body iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... - Page 47 It is not necessary to fasten too tightly, just so the compression fits securely. Wrap with weatherproofing (self- amalgamate tape) over the connector and cable junctions according to manufacturer’s guidelines. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 48: Preparing And Connecting The Coax Rx And Tx Cables
All cables should be installed with a drip loop. Table 13. Coax RX and TX Cable Installation Step Instructions Diagram Insert F assemblies into RX-in interface and lock the connector. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 49: Connecting The Power Module
34 to connect the DC power cable from Power Module to the X1 Outdoor Satellite Router. After tightening the power connectors, wrap with weatherproofing tape, if necessary, following manufacturer’s guidelines. CAUTION All cables should be installed with a drip loop. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 50: Table 14. Power Module Dc Power To X1 Router Dc Power Installation Instructions
Router DC power connection completed on the X1 Router. Proceed to step 3. Lock the opposite end of the DC power cord into the Power Module. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 51: Connecting The Ac Power To The Power Module
Install power on a GFI (Ground Fault Interrupter) protected circuit. CAUTION All cables should be installed with a drip loop. Figure 16. AC Power Gland Assembly iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 52: Table 15. Power Module Ac Power Cable Installation Instructions
Female Housing Assembly. Table 8 on page 17 shows the pin assignments for the power wires in the Female Housing Assembly. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 53: Powering Up The System
AC power source. The AC cord is specific to the needs of the installation site. Only the mating connector is supplied by iDirect and is referred to, in this manual, as the “AC power gland”. Install power on a GFI (Ground Fault Interrupter) protected circuit. -
Page 54: Checking Conditions Before Powering Up The System
After checking the setup as outlined above, power up the X1 Outdoor Satellite Router as follows: • Connect the iDirect supplied 2 meter DC power cable from the Power Module to the 4-pin power connector on the X1 Outdoor Satellite Router. •... -
Page 55: Configuring The X1 Outdoor Satellite Router
Typically, the only maintenance needed to be performed on the unit, without explicit directions from iDirect, is to maintain the temperature of the X1 Outdoor Satellite Router and keep its external areas free from dust or dirt. - Page 56 For warranty service, obtain a Return Material Authorization (RMA) number from the reseller or iDirect prior to shipping. Direct customers of iDirect, may contact the iDirect TAC directly to obtain an RMA number and shipping instructions. Follow the shipping instructions, complete the RMA form, and attach the form to the outside of the shipping box.
-
Page 57: Appendix A Warnings
Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 58: Installation Warning
Leia as instruções de instalação antes de ligar o sistema à sua fonte de energia. ¡Advertencia! Ver las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Varning! Läs installationsanvisningarna innan du kopplar systemet till dess strömförsörjningsenhet. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 59: Restricted Area Warning
Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 60: Service Personnel Warning
AS/NZS 3260 Cláusula 1.2.14.3 Service Personnel. Varning! Installation och underhåll av denna utrustning får endast utföras av servicepersonal enligt definition i AS/NZS 3260 klausul 1.2.14.3 Service Personnel. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 61: Qualified Personnel Warning
Om te voorkomen dat de ODU oververhit raakt, dient u deze niet in een gebied te bedienen waar de maximaal aanbevolen omgevingstemperatuur van 60° C wordt overschreden. Om luchtstroombeperkingen te voorkomen, dient u minstens 15 cm speling rond de ventilatieopeningen te laten. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 62: Lightning Activity Warning
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity. Waarschuwing Tijdens onweer dat gepaard gaat met bliksem, dient u niet aan het systeem te werken of kabels aan te sluiten of te ontkoppelen. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 63: Safety Extra-Low Voltage Port Warning
Die Ports mit der Bezeichnung "TX Out", "RX In" sind SELV-Schaltkreise (safety extra-low voltage circuits - Sicherheits-Niedrigspannungskreise). SELV-Schaltkreise sollten nur an andere SELV-Schaltkreise angeschlossen werden. Achten Sie darauf, diese Schaltkreise nicht an TNV-Schaltkreise (telphone network voltage - Telefonnetzspannung) anzuschließen. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 64: Ground Conductor Warning
Auf keinen Fall den Erdungsleiter unwirksam machen oder das Gerät ohne einen sachgerecht installierten Erdungsleiter verwenden. Wenn Sie sich nicht sicher sind, ob eine sachgerechte Erdung vorhanden ist, wenden Sie sich an den zuständigen elektrischen Fachmann oder einen Elektriker. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 65: Ac Power Supply Circuit Warning
Beim Anschließen der Geräte an das Stromnetz ist darauf zu achten, daß die Schaltverbindungen nicht überlastet werden. Avvertenza Fare attenzione quando si collegano le unità al circuito di alimentazione, per non sovraccaricare i cablaggi. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... - Page 66 Poner mucho cuidado al conectar los equipos al circuito de alimentación a fin de no sobrecargar el cableado. Varning! Var noga vid anslutning av enheter till matarströmkretsen så att ledningarna inte överbelastas. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
-
Page 67: Appendix B. Compliance
Users who use this product should observe any local regulations that may apply to the distribution or use of encryption products. Figure 17. iDirect Evolution X1 Outdoor Satellite Router Product Label iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 68: Fcc Compliance
FCC Compliance Figure 18. iDirect Evolution X1 Outdoor Satellite Router Power Module Label B.1 FCC Compliance The iDirect Evolution X1 Outdoor Satellite Routers comply with Class B of Part 15 of the FCC (Federal Communications Commission) rules as is identified by use of the FCC logo. -
Page 69: Canadian Labeling Requirements
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. B.4 CE Compliance (European Union) Marking by this symbol indicates the iDirect Evolution X1 Outdoor Satellite Routers are in compliance with the following standards: EMC Emission... -
Page 70: Safety
U.S. and Canadian National Standards on Safety. In addition, the IECEE CB Scheme Test Report and CB Test Certificate for the iDirect Evolution X1 Outdoor Satellite Router is done with TUV Rheinland of North America. This CB Scheme is recognized by the multilateral agreement among participating countries and certification organizations. - Page 71 According to this directive, producers have a certain responsibility regarding their products in the waste phase. iDirect is offering its clients a take-back solution for iDirect waste products all over Europe. Details can be found on the iDirect Web site located at http://www.idirect.net/weee.
-
Page 72: Declaration Of Conformity
Declaration of Conformity B.7 Declaration of Conformity iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 73: Appendix C Preparing The Coax Cable
In general, specific and detailed instructions are for RG-6 cables and connectors, only. Use high quality coaxial outdoor cable to connect the iDirect Evolution X1 Outdoor Satellite Router to the Outdoor Unit (ODU) equipment. iDirect recommends that a solid copper center... -
Page 74: Figure 19. Coax Cable Cutting Technique
(inch (mm)) RG-6 5/8 (15.9) 1/4 (6.4) 3/8 (9.5) RG-11 13/32 (10.3) 3/32 (2.4) 13/32 (10.3) Remove any foil in the braid as shown in Figure 20 on page 59. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 75: Figure 20. Cutting Technique For Removing Foil In The Braid
Note: The white colored inner dielectric insulation should be flush with the inner rear surface of the connector. Refer to the picture on the right (C) in Figure 22 page 60 for an RG-6/RG-11 termination. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... -
Page 76: Figure 22. Attaching The Compression Fitting F-Type Connector
10 Finish connecting the cable to the connector with the compression tool connector such as Holland Compression Tool 1855 as shown in Figure Figure 23. Compression fitting F-Type Weatherproof Plugs and Tool iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual... - Page 77 It must be straight and cylindrical without any burrs at the end. Failure to follow this technique could result in damage to the satellite router, BUC, LNB connector and/or possible intermittent service. iDirect Evolution X1 Outdoor Satellite Router Installation and Safety Manual...
