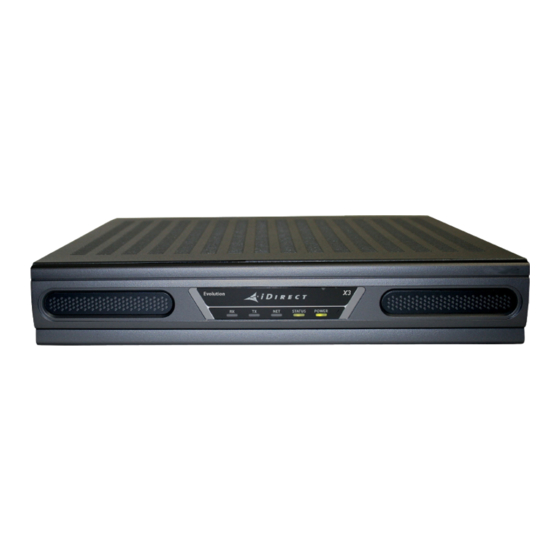

iDirect Evolution X3 Installation And Safety Manual
Satellite router
Hide thumbs
Also See for Evolution X3:
- Installation manual (10 pages) ,
- Installation manual (130 pages)
Subscribe to Our Youtube Channel
Related Manuals for iDirect Evolution X3
Summary of Contents for iDirect Evolution X3
- Page 1 Installation and Safety Manual Evolution X3 Satellite Router Router Products June 27, 2008...
- Page 2 Copyright © 2008 VT iDirect, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. Information contained herein is subject to change without notice. The specifications and information regarding the products in this document are subject to change without notice. All statements, information, and recommendations in this document are believed to be accurate, but are presented without warranty of any kind, express, or implied.
-
Page 3: Table Of Contents
4.3.1 Additional Components Normally Required ..... . 16 4.4 Mounting the iDirect Evolution X3 Satellite Router ... . . 17 4.4.1 General Guidelines for Mounting Configurations . - Page 4 4.6 iDirect Evolution X3 Satellite Router Rear Panel ....19 4.7 Preparing the Coax Cables ......21 4.7.1 Console Port Cable Specifications and Pinout .
- Page 5 B.7 Declaration of Conformity ......49 iDirect Evolution X3 Satellite Router Installation and Safety Manual...
- Page 6 Figure 4 Typical Antenna with BUC and LNB ......16 Figure 5 Evolution X3 with Rack Mount Tray ......18 Figure 6 iDirect Evolution X3 Satellite Router Rear Interface Connectors .
-
Page 7: About This Manual
Satellite Router solutions. Familiarity with cabling and wiring practices is beneficial. In this document, the iDirect Evolution X3 Satellite Routers are often referred to as IDUs (Indoor Units) while radios and LNBs are collectively referred to as ODUs (Outdoor Units). -
Page 8: Document Conventions
This manual is crafted with the reader in mind, providing notes, helpful tips and reminders that assist you in the successful and safe operation of iDirect system hardware. Notes also provide suggestions or references to material not contained in this manual. -
Page 9: Introduction
This manual explains how to safely install and maintain the Evolution X3 router, and it includes important safety information. iDirect Evolution X3 Satellite Routers deliver all the benefits of broadband IP networking while providing the highest TCP/IP throughput in the industry. - Page 10 Evolution X3 Satellite Router Installation and Safety Manual...
-
Page 11: Safety Information
Read this entire chapter before you attempt to install or use your Evolution X3 router. Adhere to all warnings listed on the product’s warning labels and in the operating instructions. Follow all operating and usage instructions carefully. -
Page 12: Installation Guidelines
Installation Guidelines Installation Guidelines When installing the Evolution X3 router, observe all caution and warning statements. Follow the general warnings and cautions in Table 1 to help ensure your safety and protect the equipment. However, these guidelines may not cover all of the potentially hazardous situations you may encounter during installation. -
Page 13: Electrical Safety
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe. Never install equipment that appears damaged. • Carefully examine your work area for possible hazards, such as wet floor, ungrounded power extension cables, and missing safety grounds. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 14: Physical And Environmental Considerations
If there is any dust build up on the vent openings of the Evolution X3 router chassis, vacuuming is recommended to remove these particulate to ensure proper airflow. -
Page 15: Safety Guidelines To Observe During Servicing
(including amplifiers) that produce heat. • Accessories To avoid personal injury or damage to the iDirect Evolution X3 Satellite Router, do not place the chassis on any unstable rack, cart, stand, table, or bracket. Any mounting of the product should follow the manufacturer’s instructions. - Page 16 • When the power supply cord or plug is damaged. • If liquid has been spilled on, or objects have fallen into, the Evolution X3 router, or it has been exposed to water. • If the Evolution X3 router does not operate normally when following the operating instructions.
-
Page 17: Specifications
The specifications in this chapter describe the mechanical, environmental and connector interfaces for the iDirect Evolution X3 Satellite Router. This chapter contains the following sections: • 3.1 “Mechanical and Environmental Specifications” • 3.2 “Power Specifications” • 3.3 “RF Specifications” iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 18: Mechanical And Environmental Specifications
Mechanical and Environmental Specifications Mechanical and Environmental Specifications Ensure that the installation site can accommodate the mechanical and environmental specifications of the IDU. The iDirect Evolution X3 Satellite Router mechanical and environmental specifications are presented in Table Table 3 Mechanical and Environmental Specifications... -
Page 19: Power Specifications
Power Specifications Power Specifications The iDirect Evolution X3 Satellite Router power specifications are presented in Table Table 4 Power Specifications Category Description Input Voltage Range 100 — 240 V~ (VAC) Single Phase Frequency 50 Hz – 60 Hz ≤ 2.0 Amps maximum... -
Page 20: Rf Specifications
RF Specifications RF Specifications The iDirect Evolution X3 Satellite Router RF specifications are presented in Table Table 5 RF Specifications Category Description Frequency Range Transmit: 950-1700 MHz Receive: 950-2150 MHz Frequency Tuning Step Size Transmit: 38 Hz Receive: Sub-Hertz with Demodulator... -
Page 21: Installation
4 Installation This chapter describes the guidelines and procedures for installing the iDirect Evolution X3 Satellite Router (IDU) at your VSAT location. This chapter contains the following sections: • 4.1 “Tools and Supplies” • 4.2 “Unpacking iDirect Evolution X3 Satellite Router Equipment”... -
Page 22: Tools And Supplies
Table 6 Recommended Tools Quantity Tool Number 2 Phillips screwdriver (for rack mounting) F-Connector Crimping Tool RG-6 Coax Stripper Coax / Wire Cutter DB-9 to RJ-45 Adapter Straight LAN Cable Figure 2 Installation Tools iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 23: Unpacking Idirect Evolution X3 Satellite Router Equipment
Unpacking iDirect Evolution X3 Satellite Router Equipment The Evolution X3 router may be shipped in one or more shipping containers, depending on the type of bundle purchased. Once you have received all of the boxes, perform the following tasks: •... -
Page 24: Additional Components Normally Required
Low Noise Block converter (LNB) 4.3.1 Additional Components Normally Required • An iDirect Specified L-Band cable — Consists of a RG-6 or RG-11 dual-coax cable and connectors (to connect the IDU and ODU), plus type F connectors and sealant tape. (See Chapter 4, Installation.) -
Page 25: Mounting The Idirect Evolution X3 Satellite Router
The chassis can be placed on a tabletop or flush mounted on a 19-inch rack with a two rack unit opening. This section provides details on how to accomplish the installation. Note: The Evolution X3 router is designed for indoor use only. 4.4.1 General Guidelines for Mounting Configurations When installing the IDU, follow these guidelines: •... -
Page 26: Figure 5 Evolution X3 With Rack Mount Tray
To mount the Evolution X3 router in a 19-inch rack: Using a Number 2 Phillips head screwdriver, anchor the rack Evolution X3 router and power supply to the mounting tray. Using cable ties, make sure that excess power cord is... -
Page 27: Idirect Evolution X3 Satellite Router Rear Panel
Figure 6. See Table 7 for a description of each connector and indicator. Figure 6 iDirect Evolution X3 Satellite Router Rear Interface Connectors Table 7 iDirect Evolution X3 Satellite Router Connectors Label Connector Type Interface and Purpose +24V 5A... -
Page 28: Figure 7 Port Pin Numbering
A diagram of the pin numbering scheme is shown in Figure Figure 7 Port Pin Numbering The LAN A port is normally assigned to the WAN (towards the VPN). Its IP address is the next hop for the VPN. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 29: Preparing The Coax Cables
Preparing the Coax Cables Preparing the Coax Cables Use high quality coaxial cable to connect the iDirect Evolution X3 Satellite Router to the ODU equipment. iDirect recommends that you use a solid copper center conductor, quad shield, coaxial cable with a minimum of 60% + 40% braid and double foil shield to connect the IDU to the ODU equipment, such as: •... -
Page 30: Figure 8 Recommended Tools For Terminating Coaxial Cable
Preparing the Coax Cables Figure 8 shows all of the recommended tools. Figure 8 Recommended Tools for Terminating Coaxial Cable iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 31: Figure 9 Coax Cable Cutting Technique
Length A Length B Length C (inch (mm)) (inch (mm)) (inch (mm)) RG-6 5/8 (15.9) 1/4 (6.4) 3/8 (9.5) RG-11 13/32 (10.3) 3/32 (2.4) 13/32 (10.3) Remove any foil in the braid. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 32: Figure 10 Cutting Technique For Removing Foil In The Braid
RG-11 termination. Since RG-11 connector has a built-in center pin, ensure that the coax center pin makes contact to the internal seizing pin of the connector. Refer to Figure iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 33: Figure 12 Attaching The Rg-11 Connector
Figure 12 Attaching the RG-11 Connector 10 Crimp the connector with the proper crimp tool such as CablePrep HCT-775 for RG-6 or HCT-116 for RG-11. Figure 13 Crimp Area for F-Type Plugs iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 34: Console Port Cable Specifications And Pinout
Universal Line Card Console Port to the PC that is running terminal emulation software. You can identify whether a cable is straight-through or cross-over by comparing the two RJ-45 connectors at the ends of the Ethernet cable. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 35: Figure 15 Holding The Rj-45 Cable Connectors
DB-9 female DTE adapter. Table 10 RJ-45 to DB-9 Pinouts Console Port RJ-45 to DB-9 Console RJ-45 Pin Color Code (DTE) Terminal Adapter Device Blue Orange Black Green Yellow Brown Rx-RF-Power White/Grey iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 36: Ethernet Port Cable Specifications And Pinouts
10-Mbps and 100-Mbps transmission over Unshielded Twisted-Pair (UTP) cables. Use Category-3 or Category-5 UTP cable with RJ-45 connectors to attach the 10/100 Base-T Ethernet LAN A port on the iDirect Evolution X3 Satellite Router chassis to the customer provided LAN Hub or switch. -
Page 37: Connecting Ac Power To The Idu
Connecting AC Power to the IDU The IDU can be powered directly from the facility AC power source from 100 VAC to 240 VAC. iDirect recommends that the chassis be powered from a low noise, low transient AC power source. -
Page 38: Checking Conditions Before Powering Up The System
4.8.3 Powering Up the System After checking the setup as outlined above, power up the IDU as follows: • Connect the AC cord to the iDirect Evolution X3 Satellite Router. • Plug the AC power cord into the AC outlet. -
Page 39: Front Panel Led Status Indicators
The Satellite Router has been acquired into the network. FLASHING GREEN The Satellite Router is attempting acquisition into the network. SOLID YELLOW The downstream SCPC is locked. FLASHING YELLOW The downstream SCPC is not locked. iDirect Evolution X3 Satellite Router Installation and Safety Manual... - Page 40 The IDU is locked to the downstream and it is receiving data. FLASHING GREEN The demodulator is locked to the downstream but NCR is not locked. Data is not being received by the modem. iDirect Evolution X3 Satellite Router Installation and Safety Manual...
-
Page 41: Maintaining The Remote
The IDU requires basic maintenance to keep it running efficiently and to prolong its life. However, the only maintenance you need to perform on the unit, without explicit directions from iDirect Technologies, is to maintain the temperature of the IDU and keep its external areas free from dust or dirt. -
Page 42: Repacking Idirect Evolution X3 Satellite Routers
For warranty service, obtain a Return Material Authorization (RMA) number from your reseller or iDirect prior to shipping. If you are a direct customer of iDirect, you may contact the iDirect TAC directly to obtain an RMA number and shipping instructions. Follow the shipping instructions, complete the RMA form, and attach the form to the outside of the shipping box. -
Page 43: Warnings
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 44: Installation Warning
Leia as instruções de instalação antes de ligar o sistema à sua fonte de energia. ¡Advertencia! Ver las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Varning! Läs installationsanvisningarna innan du kopplar systemet till dess strömförsörjningsenhet. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 45: Restricted Area Warning
Evolution X3 Satellite Router Installation and Safety Manual... -
Page 46: Service Personnel Warning
AS/NZS 3260 Cláusula 1.2.14.3 Service Personnel. Varning! Installation och underhåll av denna utrustning får endast utföras av servicepersonal enligt definition i AS/NZS 3260 klausul 1.2.14.3 Service Personnel. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 47: Qualified Personnel Warning
Om te voorkomen dat de IDU oververhit raakt, dient u deze niet in een gebied te bedienen waar de maximaal aanbevolen omgevingstemperatuur van 45° C wordt overschreden. Om luchtstroombeperkingen te voorkomen, dient u minstens 15 cm speling rond de ventilatieopeningen te laten. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 48: Lightning Activity Warning
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity. Waarschuwing Tijdens onweer dat gepaard gaat met bliksem, dient u niet aan het systeem te werken of kabels aan te sluiten of te ontkoppelen. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 49: Safety Extra-Low Voltage Port Warning
Les circuits SELV ne devant être connectés qu'à d'autres circuits du même type, il est recommandé de ne pas les raccorder à des circuits TNV (« Telephone Network Voltage » :tension de réseau téléphonique). iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 50: Ground Conductor Warning
Varoitus Älä koskaan ohita maajohdinta tai käytä laitteita ilman oikein asennettua maajohdinta. Ota yhteyttä asianmukaiseen sähkötarkastusviranomaiseen tai sähköasentajaan, jos olet epävarma maadoituksen sopivuudesta. iDirect Evolution X3 Satellite Router Installation and Safety Manual... -
Page 51: Ac Power Supply Circuit Warning
Waarschuwing Let erop dat de toestellen op voedingscircuits worden aangesloten zonder het vermogen van de bedrading te overschrijden. Varoitus Laiteyksiköt on yhdistettävä huolellisesti syöttöpiiriin niin, että johdot eivät ole ylikuormitettuja. iDirect Evolution X3 Satellite Router Installation and Safety Manual... - Page 52 Poner mucho cuidado al conectar los equipos al circuito de alimentación a fin de no sobrecargar el cableado. Varning! Var noga vid anslutning av enheter till matarströmkretsen så att ledningarna inte överbelastas. iDirect Evolution X3 Satellite Router Installation and Safety Manual...
-
Page 53: Compliance
B Compliance This appendix provides international agency compliance, safety, and statutory information for the iDirect Evolution X3 Satellite Router. Please also refer to the EC-Declaration of Conformity at the end of this section. Note: Triple DES Encryption is eligible for export from the U.S. to all customers worldwide, except to U.S. -
Page 54: Fcc Compliance
FCC Compliance B.1 FCC Compliance The iDirect Evolution X3 Satellite Routers comply with Class B of Part 15 of the FCC (Federal Communications Commission) rules as is identified by use of the FCC logo. 47CFR15 Class B, CISPR-22 Class B, EN55022 Class B. -
Page 55: Ce Compliance (European Union)
U.S. and Canadian National Standards on Safety. In addition, the IECEE CB Scheme Test Report and CB Test Certificate for the iDirect Evolution X3 Satellite Router is done with TUV Rheinland of North America. This CB Scheme is recognized by the multilateral agreement among participating countries and certification organizations. -
Page 56: Rohs And Weee Compliance
All iDirect Technologies products shipped to the European Union after July 1, 2006 comply with the 2002/95/EC directive. -
Page 57: B.7 Declaration Of Conformity
Declaration of Conformity B.7 Declaration of Conformity iDirect Evolution X3 Satellite Router Installation and Safety Manual... - Page 58 Declaration of Conformity iDirect Evolution X3 Satellite Router Installation and Safety Manual...
