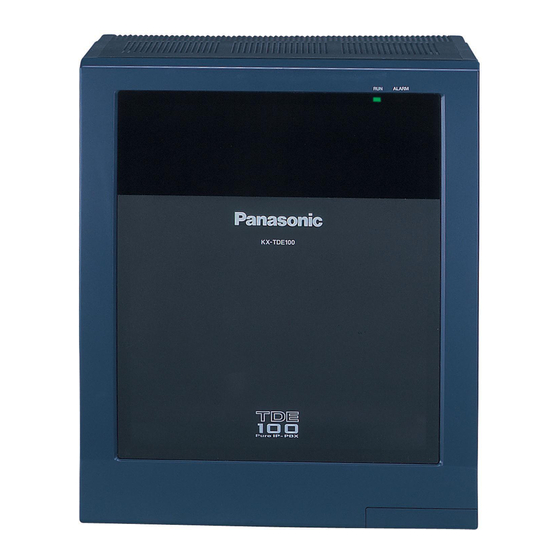

Panasonic KX-TDE100 Getting Started

Pure ip-pbx
Hide thumbs Also See for KX-TDE100:

Advertisement

Quick Links

Thank you for purchasing a Panasonic Pure IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDE100/KX-TDE200: PMMPR Software File Version 2.0000 or later
Pure IP-PBX
Getting Started
for Virtual IP Cards
KX-TDE100
Model No.
KX-TDE200

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TDE100

Summary of Contents for Panasonic KX-TDE100

  • Page 1 Virtual IP Cards KX-TDE100 Model No. KX-TDE200 Thank you for purchasing a Panasonic Pure IP-PBX. Please read this manual carefully before using this product and save this manual for future use. KX-TDE100/KX-TDE200: PMMPR Software File Version 2.0000 or later...
  • Page 2: Table Of Contents

    Table of Contents Before Installation .................. 3 Unpacking..........................4 Installation....................7 Opening/Closing the Front Cover..................8 Installing the DSP16/DSP64 Card ..................9 Inserting the SD Memory Card to the IPCMPR Card............12 Installing the Power Supply Unit ...................12 Frame Earth Connection ....................13 Connecting to the LAN ....................14 2.6.1 Connecting the IPCMPR Card to the LAN ................14 2.6.2...
  • Page 3: Before Installation

    Section 1 Before Installation Getting Started for Virtual IP Cards...
  • Page 4: Unpacking

    Check the package contents. Main Unit × 1 CD-ROM (including manuals, etc.) × 1 AC Cord* × 1 Screw A Screw B (Black) × 3 (KX-TDE100) × 2 (KX-TDE100) × 4 (KX-TDE200) × 6 (KX-TDE200) Anchor Plug Mini Plug (for pager and Ferrite Core (for the IPCMPR ×...
  • Page 5 1.1 Unpacking Necessary items (not supplied): • Ethernet straight cables* for the LAN and PC connections. • RJ45 connectors for the LAN and PC connections by Ethernet straight cables. • An RS-232C cross cable for PC connection. • Switching hubs and routers for VoIP network configuration. * The cables should be 10BASE-T/100BASE-TX CAT 5 (Category 5) or higher cables.
  • Page 6 1.1 Unpacking Getting Started for Virtual IP Cards...
  • Page 7: Installation

    Section 2 Installation Getting Started for Virtual IP Cards...
  • Page 8: Opening/Closing The

    2.1 Opening/Closing the Front Cover Opening/Closing the Front Cover Opening the Front Cover Insert a flathead screwdriver into the opening (on the left of the screw cover) and unlatch the screw cover. Turn the screw anticlockwise to loosen. Slide the front cover to the right until it stops, then lift the front cover. Closing the Front Cover Hook the front cover onto the shelf (line up the protrusions on the cover with the receptacles on the shelf), then slide the front cover to the left until it locks.
  • Page 9: Installing The Dsp16/Dsp64 Card

    2.2 Installing the DSP16/DSP64 Card Installing the DSP16/DSP64 Card Removing the IPCMPR Card from the PBX Turn the 2 screws anticlockwise to loosen them. Screws Pull the release lever in the direction of the arrow to disconnect the card from the back board. Pull the card from the shelf to remove it.
  • Page 10 2.2 Installing the DSP16/DSP64 Card Installing the DSP16/DSP64 Card Depending on the number and the type of IP trunks and IP telephones you wish to use, required activation keys are determined, and either the DSP16 or DSP64 card is selected to be installed. DSP16: 16-channel DSP (Digital Signal Processor) card with a 4-Channel IP Trunk activation key and an 8-Channel IP Proprietary Telephone activation key preinstalled.
  • Page 11 2.2 Installing the DSP16/DSP64 Card Installing the IPCMPR Card in the PBX Install the IPCMPR card in the IPCMPR card slot of the PBX. Note The illustrations of the PBX shown in the installation procedure are based on the KX-TDE200. Insert the card along the guide rails.
  • Page 12: Inserting The Sd Memory Card To The Ipcmpr Card

    Installing the Power Supply Unit Slot Position Install the power supply unit (PSU) into the PSU slot. Null Slot IPCMPR Card IPCMPR Card Free Slots Free Slots PSU Slot PSU Slot KX-TDE100 KX-TDE200 Getting Started for Virtual IP Cards...
  • Page 13: Frame Earth Connection

    2.5 Frame Earth Connection CAUTION To protect the back board from static electricity, do not touch parts on the back board in the main unit, and PSU. To discharge static electricity, touch ground or wear an earthing strap. Installing the Power Supply Unit Insert the PSU along the guide rails.
  • Page 14: Connecting To The Lan

    2.6 Connecting to the LAN Connecting to the LAN 2.6.1 Connecting the IPCMPR Card to the LAN Refer to the following procedure to connect the IPCMPR card to the LAN. When the IPCMPR card is connected to the LAN for the first time, you must assign IP addressing information to the card.
  • Page 15 2.6 Connecting to the LAN Connecting the IPCMPR card to a switching hub Connect the cable to the LAN port of the IPCMPR card. Connect the other end of the cable to the switching hub. Router LAN Port Switching Hub Switching Hub Ethernet Straight Cable IP Softphone...
  • Page 16: Connecting The Ip Telephones To The Lan

    2.6 Connecting to the LAN 2.6.2 Connecting the IP Telephones to the LAN When an IP telephone is connected to the LAN and power is supplied for the first time, you will be prompted to set network parameters. The network parameters must be set for the IP telephone before it can be used. Refer to "4.3 Programming the Virtual Extension Card and IP Telephones"...
  • Page 17 2.6 Connecting to the LAN Connecting an AC Adaptor to an IP Telephone IP-PTs and some SIP Extensions comply with the IEEE 802.3af Power-over-Ethernet (PoE) standard. If PoE is available on your network, these IP telephones can receive the necessary power supply from the network through the network cable.
  • Page 18 2.6 Connecting to the LAN Getting Started for Virtual IP Cards...
  • Page 19: Before Programming

    Section 3 Before Programming Getting Started for Virtual IP Cards...
  • Page 20: Starting The Pbx

    3.1 Starting the PBX Starting the PBX CAUTION • SD Memory Card must be inserted in the SD Memory Card slot of the IPCMPR card before startup. • Before touching the System Initialise Switch, discharge static electricity by touching ground or wearing an earthing strap.
  • Page 21: Connecting The Pc

    3.2 Connecting the PC Connecting the PC The Maintenance Console serves as an overall system programming tool for the PBX. The Maintenance Console's Quick Setup lets you easily configure the PBX to apply basic settings such as time and date. To programme the PBX, connect it to the PC via the MNT or RS-232C port.
  • Page 22: Installing The Maintenance Console

    3.3 Installing the Maintenance Console Installing the Maintenance Console For the system requirements of the PC (e.g., operating system, hardware specifications), refer to "4.3.1 Installing and Starting the Maintenance Console" in the Installation Manual. Notes • Make sure to install and use the latest version of the Maintenance Console. •...
  • Page 23: Programming

    Section 4 Programming Getting Started for Virtual IP Cards...
  • Page 24: Programming The Pbx

    Enter the Installer Level Programmer Code (default: INSTALLER). Click OK. 5. Click Connect. Select KX-TDE100/200 from PBX Model. Select the LAN or RS-232C tab, depending on the type of PC connection with the PBX. Specify the settings as required. Note When connecting to the PBX for the first time selecting LAN, the IP Address and Port Number must be set to 192.168.0.101 and 35300 respectively.
  • Page 25 4.1 Programming the PBX When using a DHCP server: Select Enable for the DHCP Client setting. Click Apply. Note The boxes will turn grey and the IP addresses will be assigned automatically after the PBX is reset. When not using a DHCP server: Select Disable for the DHCP Client setting.
  • Page 26: Installing The Virtual Ip Cards To The Pbx

    4.1 Programming the PBX 4.1.2 Installing the Virtual IP Cards to the PBX Under Configuration, click Slot. Move the mouse pointer over the white PBX image of IPCMPR Virtual Slot at the bottom of the screen. Click Select Shelf. Click on the name of the desired card to install in the list.
  • Page 27: Installing Additional Activation Keys

    4.1 Programming the PBX 4.1.3 Installing Additional Activation Keys If the preinstalled activation keys on the DSP16 or DSP64 cards are not enough for the desired configuration, it is necessary to obtain additional activation keys in the form of activation key files and install them in the SD Memory Card.
  • Page 28 4.1 Programming the PBX CAUTION The activation key file can only be installed in the PBX with the MPR ID number entered when the activation key file was downloaded. The activation key file cannot be reissued unless the IPCMPR card crashes.
  • Page 29: Programming The Virtual 16-Channel Voip Gateway Card

    4.2 Programming the Virtual 16-Channel VoIP Gateway Card Programming the Virtual 16-Channel VoIP Gateway Card There are 2 methods to programme the Virtual 16-Channel VoIP Gateway Card (V-IPGW16 card) to establish VoIP communications between PBXs at different locations, as follows: PBX code The caller dials the unique PBX code of the PBX to which the called party is method...
  • Page 30: Programming The Address Translation Table

    4.2 Programming the Virtual 16-Channel VoIP Gateway Card 4.2.2 Programming the Address Translation Table The function of an address translation table in a VoIP network is to provide 2-way translation of telephone numbers and IP addresses . Therefore, a caller can reach the destination by dialling the number without knowing the destination IP address.
  • Page 31 4.2 Programming the Virtual 16-Channel VoIP Gateway Card Click DN2IP. When using the PBX code method: In the Leading Number box, type the remote PBX code and starting digit of destination extension. When using the extension number method: In the Leading Number box, type the remote PBX code and starting digit of destination extension.
  • Page 32: Programming The Network Settings

    4.2 Programming the Virtual 16-Channel VoIP Gateway Card 4.2.3 Programming the Network Settings For successful operation of a VoIP network using the V-IPGW16 card, network settings for the PBX at each location must be programmed appropriately. For a detailed discussion of related features, refer to the Feature Guide.
  • Page 33 4.2 Programming the Virtual 16-Channel VoIP Gateway Card From the system menu, click System. Click Numbering Plan. Click Main. Click the Features tab. In the TIE Line Access box, type the dialling number. Click OK. From the system menu, click Private Network.
  • Page 34 4.2 Programming the Virtual 16-Channel VoIP Gateway Card Click the Outgoing Call tab. Select the preferred En-bloc Dialling setting (Overlap (default) or En-bloc Click OK. Move the mouse pointer over the installed V- IPGW16 card to display the menu of options. Click INS.
  • Page 35 4.2 Programming the Virtual 16-Channel VoIP Gateway Card From the system menu, click CO & Incoming Call. Click CO Line Settings. Type the CO Name and assign an unused Trunk Group Number to be used for all IP trunks. Click OK. From the system menu, click System.
  • Page 36 4.2 Programming the Virtual 16-Channel VoIP Gateway Card Click the Outgoing Call tab. Select the preferred En-bloc Dialling setting (Overlap (default) or En-bloc Click OK. Move the mouse pointer over the installed V- IPGW16 card to display the menu of options. Click INS.
  • Page 37: Programming The Virtual Extension Card And Ip Telephones

    4.3 Programming the Virtual Extension Card and IP Telephones Programming the Virtual Extension Card and IP Telephones 4.3.1 Assigning the IP Addressing Information The IP address of an IP telephone, the subnet mask address, the default gateway address, and the IP address of the IPCMPR card (PBX IP address) must be assigned to the IP telephone before it can be used on the network.
  • Page 38 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the IPCMPR card in the Primary PBX (PBX IP Address) Select "PBX IP Press SP-PHONE.
  • Page 39 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT265 (software version 2.00 or later only) To start programming PROG. Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To enter the IP address of the IPCMPR card (PBX IP Address) PBX IP HOLD Address*...
  • Page 40 4.3 Programming the Virtual Extension Card and IP Telephones Not using a DHCP server when the IP-PT is on the same LAN with the PBX Only the PBX IP address can be assigned automatically to the IP-PT in process of being registered to the PBX.
  • Page 41 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Select "Network". Press SP-PHONE. Select "DHCP (Disable)". Press SP-PHONE twice.
  • Page 42 4.3 Programming the Virtual Extension Card and IP Telephones Valid IP address range: "1.0.0.0" to "223.255.255.255" Note To confirm the connection to the secondary PBX after programming, (1) turn the IP-PT's power off, and (2) hold the STORE button and 2 key while turning the power on. KX-NT265 (software version 2.00 or later only) To start programming PROG.
  • Page 43 4.3 Programming the Virtual Extension Card and IP Telephones Not using a DHCP server when the IP-PT is on the remote office LAN All the IP addressing information must be assigned manually. Follow the procedure below to assign the IP addressing information. KX-NT300 series (except KX-NT321) To start programming SETUP...
  • Page 44 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT321 To start programming Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Select "Network". Press SP-PHONE. Select "DHCP (Disable)". Press SP-PHONE twice.
  • Page 45 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT321 Continued from previous page To end programming The IP-PT will reboot and establish connection to the network. Press HOLD twice to return Press STORE. to the Menu screen. *1 Valid IP address range: "1.0.0.0" to "223.255.255.255" *2 Valid subnet mask address range: "0–255.0–255.0–255.0–255"...
  • Page 46 4.3 Programming the Virtual Extension Card and IP Telephones KX-NT265 (software version 2.00 or later only) To start programming PROG. Supply power to the IP-PT. Press PROGRAM while "Searching" is displayed. To set the IP address of the IP-PT Press VOLUME to Press SP-PHONE.
  • Page 47 4.3 Programming the Virtual Extension Card and IP Telephones • Since the default setting of the DHCP client function is enabled for IP-PTs, simply connect the IP- PTs to the LAN to use the DHCP server. Getting Started for Virtual IP Cards...
  • Page 48 4.3 Programming the Virtual Extension Card and IP Telephones For SIP Extensions Using a DHCP server to automate the assignment of IP addressing information The IP address of the SIP Extension, the subnet mask address, and the default gateway address can be assigned to the SIP Extension automatically by the DHCP server.
  • Page 49: Registering Ip Telephones

    4.3 Programming the Virtual Extension Card and IP Telephones 4.3.2 Registering IP Telephones After the programming of the IPCMPR card and IP telephone is finished, the IP telephone must be registered to the PBX. This is done using the Maintenance Console. Registration of IP-PTs Under Configuration, click Slot.
  • Page 50 4.3 Programming the Virtual Extension Card and IP Telephones Registration of SIP Extensions Under Configuration, click Slot. Move the mouse pointer over the white PBX image of IPCMPR Virtual Slot at the bottom of the screen. Click Select Shelf. Move the mouse pointer over the V-SIPEXT32 card (Virtual 32-Channel SIP Extension Card).
  • Page 51 4.3 Programming the Virtual Extension Card and IP Telephones 3. Set passwords for the SIP Extensions. Click the cell in the Connection column for each SIP Extension you wish to register. The Command Connection screen appears. Click OUS. Enter a password in the Password box for each SIP Extension.
  • Page 52 4.3 Programming the Virtual Extension Card and IP Telephones 4. Programme the SIP Extension you wish to register. Set the IP address of the IPCMPR card, extension number, and password in the corresponding fields for your SIP Extension. Send a request from the SIP Extension to the PBX for registration.
  • Page 53: Confirming The Connection

    Section 5 Confirming the Connection Getting Started for Virtual IP Cards...
  • Page 54: Making And Receiving Calls

    5.1 Making and Receiving Calls Making and Receiving Calls Making Calls You can call another extension registered with the PBX by simply dialling the extension number. extension no. Dial extension number. You can also call an extension of another PBX through the VoIP network. When using the PBX code method TIE line Destination...
  • Page 55 Panasonic Communications Co., Ltd./Panasonic Communications Company (U.K.) Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de...
  • Page 56 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2007 Panasonic Communications Co., Ltd. All Rights Reserved.
