CGETF10xx-10x
Installation
-- Continued

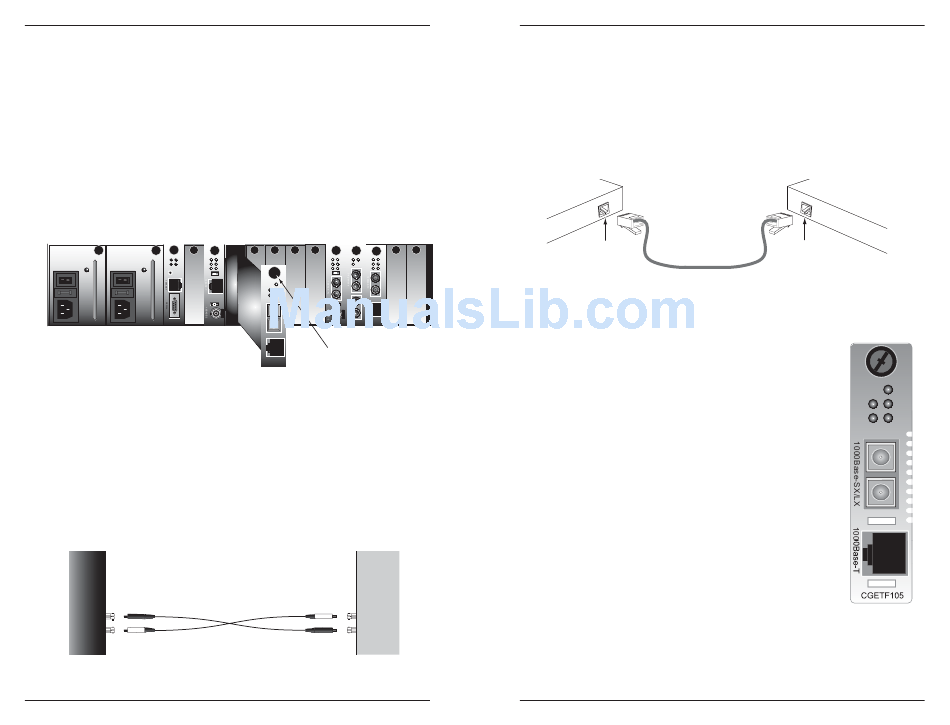

Install the slide-in-module
CAUTION: Slots in the PointSystem™ chassis without a slide-in-module
installed MUST have a protective plate covering the empty slot for Class A
compliance.
To install the CGETF10xx-10x media converter slide-in-module:
1. Locate an empty installation slot on the PointSystem™ chassis.
2. Carefully slide the slide-in-module into the installation slot, aligning the
module with the installation guides.
3. Ensure that the slide-in-module is firmly seated inside the chassis.
4. Push in and rotate the panel fastener screw (attached to the slide-in-
module) clockwise to secure the slide-in-module to the chassis front.
TX PWR
RXF
RX LNK
RXC
R
E
S
E
T
INIT
TERM
CPSMM120
The slide-in-module is powered through the
Transition Networks PointSystem™ chassis.
Install the Fiber Cable
1. Locate or build 1000Base-SX/LX compliant fiber cable with male, two-
stranded TX to RX connectors installed at both ends.
2. Connect the fiber cables to the CGETF10xx-10x media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect the fiber cable
to the media converter
as shown.
RX
TX
4 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600
PWR PWR
PWR PWR
PWR
LA LKS LA LKS SPD
LNK LNK
LKM RXF LKM FRX FLNK
CRX CLNK
COL RXC COL TX
TX Link Alert
Link Alert
E D
E D TX
PWR
LKF
RXF
RX RX
RX
RXC LKC
TX TX
0 50½ 0 50½
RX RX
CECF100 CFMFF100 CFETF110 CETCF100 CFMFF100 CFETF100
Panel Fastener Screw
Connect the fiber cable
to the other device
(media converter,
hub, etc.) as shown
RX
TX
Installation -- Continued
Install the copper cable
1. Locate or build 1000Base-T compliant copper cables with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the CGETF10xx-10x media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (switch, workstation, etc.).
RJ-45 port
on the media
converter

Operation

Status LEDs
Use the status LEDs to monitor the CGETF10xx-10x media
converter operation in the network.
PWR (Power) ON = Connection to external AC
power.
LKF (Fiber link) ON = Fiber link connection.
LKC (Copper link) ON = Copper link connection.
RXF (Fiber receive) Flashing =
RXC (Copper receive) Flashing =
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
RJ-45 port
on the other device
(switch, work station, etc.)
PWR
RXF LKF
RXC LKC
TX
Reception of data on
the fiber link.
Reception of data on
the copper link.
RX
