User's Guide
CGETF10xx-1xx
Slide-in-Module Media Converter
•
•
•

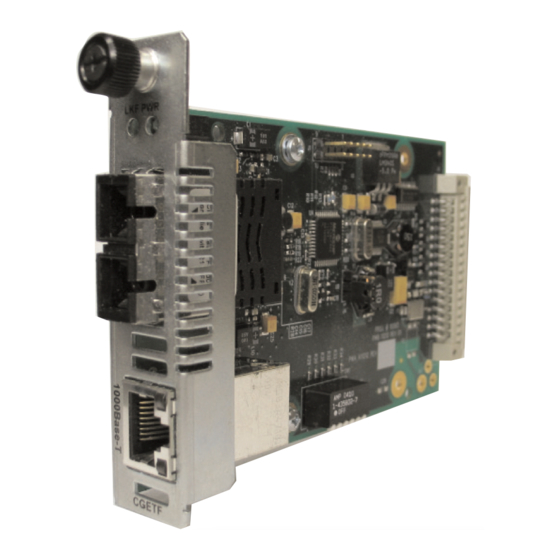

Transition Networks CGETF10xx-1xx Gigabit
Ethernet media converter connects 1000Base-T
shielded or unshielded twisted-pair copper cable to
1000Base-SX or 1000Base-LX, fiber-optic cable.
The CGETF10xx-1xx is designed to be installed in
the Transition Networks PointSystem™ chassis.
Part Number
Port One - Copper
CGETF1013-110 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1014-110 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1015-110 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1017-110 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1024-110 RJ-45 1000Base-T
100 m (328 ft)*
CGETF1035-110 RJ-45 1000Base-T
100 m (328 ft)*
*Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
Note: The stand-alone version of the media
converter is SGETF10xx-1xx. For
more information, see the
SGETF10xx-1xx user's guide on-line
at: www.transition.com.
Gigabit Ethernet
Copper to Fiber
1000Base-T to 1000Base-SX/LX
Port Two - Duplex Fiber-Optic
SC, 1000Base-SX, 850 nm multimode
220 m (721 ft)* (62.5/125
m cable)
μ
550 m (1,804 ft)* (50/125
m cable)
μ
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)*
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)*
SC, 1000Base-SX, 1310 nm extended
multimode, 2 km (1.2 miles)*
Note: 62.5/125
m (fiber only)
μ
SC, 1000Base-LX, 1550 nm single mode
125 km (77.5 miles)*
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . .7
Diagnostic Monitoring Interface
(DMI) . . . . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . . . .15
Compliance Information . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CGETF1013-110
Summary of Contents for Transition Networks CGETF1013-110
- Page 1 The CGETF10xx-1xx is designed to be installed in the Transition Networks PointSystem™ chassis. Part Number Port One - Copper Port Two - Duplex Fiber-Optic CGETF1013-110 RJ-45 1000Base-T SC, 1000Base-SX, 850 nm multimode 100 m (328 ft)* 220 m (721 ft)* (62.5/125 550 m (1,804 ft)* (50/125...
- Page 2 (for a total of 16 traps). In addition, if both the local and remote media converters are DMI models, the device will distinguish whether the trap event is from a local or a remote device.
-
Page 3: Installation
If the CGETF10xx-1xx is connected via fiber to another CGETF10xx-1xx, both media converters must have the Fiber Auto-Negotiation setting disabled (switch 5 UP). Note: Transparent Link Pass-Through (switch position 4 enabled) cannot be... -
Page 4: Operation
CGETF10xx-1xx Installation -- Continued Install the slide-in-module IMPORTANT: Slots in the PointSystem™ chassis without a slide-in-module installed MUST have a protective plate covering the empty slot for Class A compliance. To install the CGETF10xx-1xx media converter slide-in-module: Locate an empty slot on the PointSystem™ chassis. Carefully slide the slide-in-module into the slot, aligning it with the slot guides. -
Page 5: Remote-Fault Detect (Rfd)
CGETF10xx-1xx Operation -- Continued Remote-Fault Detect (RFD) Remote-Fault Detect monitors the status of the fiber link. When enabled, remote fault detection turns off the converter’s fiber transmission when the fiber receiver goes down. RFD should only be enabled in the remote converter; if enabled in both, a link pass-through event will cause an unrecoverable condition between the converters. -
Page 6: Cable Specifications
<10-9 Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm CGETF1013-110 850 nm multimode Fiber Optic Transmitter Power: min: -10.0 dBm Fiber Optic Receiver Sensitivity: min: -17.0 dBm Link Budget: 7.0 dB... -
Page 7: Technical Specifications
CGETF10xx-1xx Cable Specifications -- Continued Fiber cable - Continued CGETF1029-112 1310nm TX / 1550nm RX single mode CGETF1029-113 1550nm TX / 1310nm RX single mode Fiber-optic Transmitter Power: min: -3.0 dBm Fiber-optic Receiver Sensitivity: min: -23.0 dBm Link Budget: 20.0 dB CGETF1029-116 1510nm TX / 1590nm RX single mode CGETF1029-117... -
Page 8: Troubleshooting
Declaration of Conformity Name of Mfg: Transition Networks 10900 City West Parkway, Minnetonka MN 55343 U.S.A. Model: CGETF10xx-1xx Series Media Converters Part Number(s): CGETF1013-110, CGETF1014-110, CGETF1015-110, CGETF1017-110, CGETF1018-110, CGETF1024-110, CGETF1035-110, CGETF1040-110, CGETF1029-110, CGETF1029-111, CGETF1029-112, CGETF1029-113, CGETF1029-116, CGETF1029-117 Regulation: EMC Directive 89/336/EEC... -
Page 9: Compliance Information
CGETF10xx-1xx Compliance Information CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
