Transition Networks CGFEB1013-100 User Manual

Cgfeb10xx-1 series slide-in-module media converter copper to fiber 10/100/1000base-tx to 1000base-sx/lx optional tap port
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

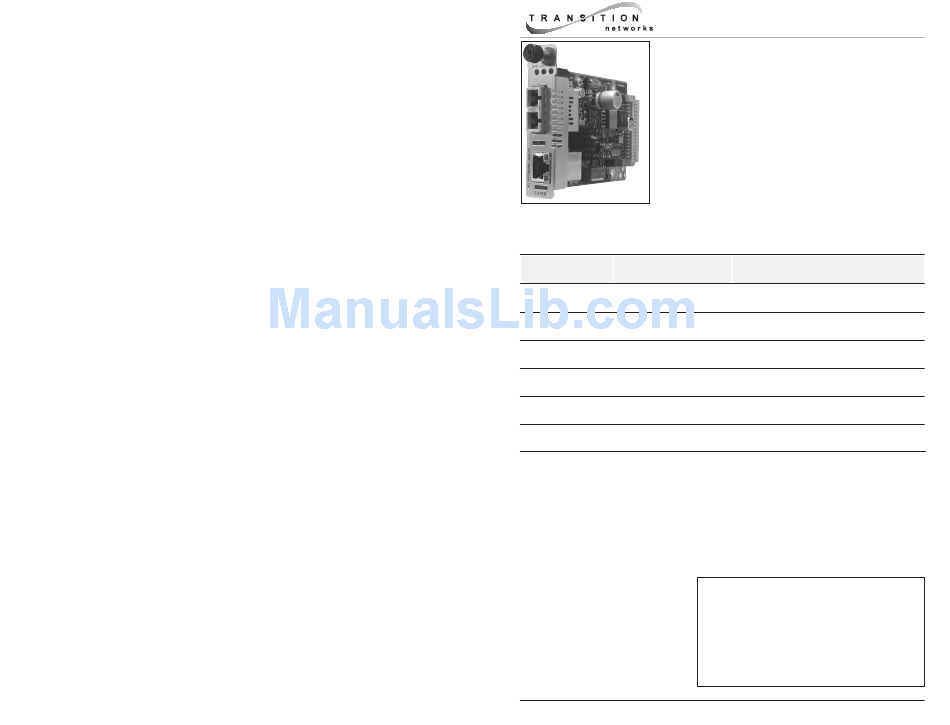

User's Guide
CGFEB10xx-10x
CGFEB10xx-1xx
Slide-in-Module Media Converter
• Copper to Fiber
• 10/100/1000Base-TX to 1000Base-SX/LX
• Optional Tap Port
Transition Networks CGFEB10xx-1xx series media
converters, designed to be installed in a PointSystem™
chassis connect 10Base-TX, 100Base-TX, or 1000Base-
TX twisted-pair copper cable to 1000Base-SX or
1000Base-LX fiber cable.
The CGFEB10xx-10x has one copper port and one fiber-optic port. The distances listed
are the typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Part Number
Port 1 - Copper
10/100/1000-Base-TX
CGFEB1013-100 RJ-45
100 m (328 ft)
CGFEB1014-100 RJ-45
100 m (328 ft)
CGFEB1015-100 RJ-45
100 m (328 ft)
CGFEB1017-100 RJ-45
100 m (328 ft)
CGFEB1024-100 RJ-45
100 m (328 ft)
CGFEB1035-100 RJ-45
100 m (328 ft)
*The CGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks
cannot guarantee a full 2-km distance on every installation since the distance is largely
dependent on the quality of the fiber, cable installation and splicing.
Port 2 - Duplex Fiber-Optic
SC, 1000Base-SX, 850 nm multimode
220 m (720 ft)
SC, 1000Base-LX, 1310 nm
single mode, 10 km (6.2 miles)
SC, 1000Base-LX, 1310 nm
single mode, 25 km (15.5 miles)
SC, 1000Base-LX, 1550 nm
single mode, 65 km (40.4 miles)
SC, 1000Base-LX, 1300 nm
multimode, 2 km (1.2 miles)*
SC, 1000Base-LX, 1550 nm
single mode, 125 km (77.5 miles)
Installation . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . 13
Diagnostic Monitoring Interface (DMI) . . 16
Cable Specification . . . . . . . . . . . . . . . . 17
Technical Specifications . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . 20
Contact Us . . . . . . . . . . . . . . . . . . . . . . . 22
Compliance Information . . . . . . . . . . . . 24
