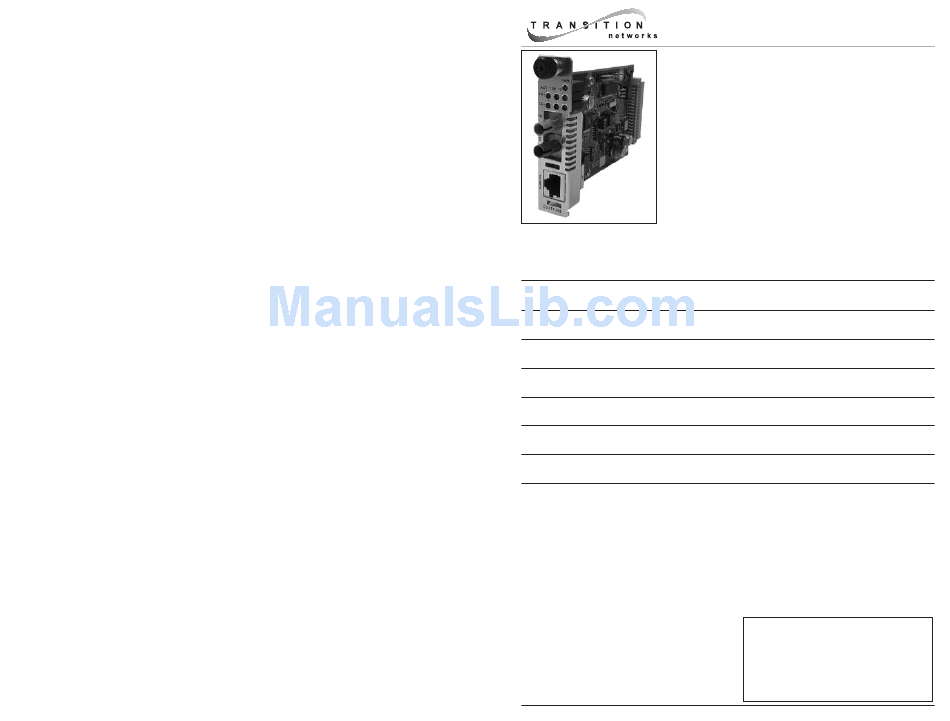

User's Guide
CSEFE10xx-10x
Slide-in-Module Media Converter
• Switchable Ethernet and Fast Ethernet
• 10 Mb/s Copper to Fiber
• 100 Mb/s Copper to Fiber
Transition Networks CSEFE10xx-10x series Ethernet /
Fast Ethernet media converter is designed to be
installed in a Transition Networks PointSystem™
chassis and is a 10Mbps or 100Mbps switch-selectable
media converter.
Both the copper and fiber links operate at the same speed setting via a hard set with
a dip switch, so the media converter operates at either 10 Mb/s copper to fiber or
100 Mb/s copper to fiber.
Part Number
Port One - Twisted-Pair
Copper
CSEFE1012-100
RJ-45, 100 m (328 ft)*
CSEFE1014-100
RJ-45, 100 m (328 ft)*
CSEFE1015-100
RJ-45, 100 m (328 ft)*
CSEFE1022-100
RJ-45, 100 m (328 ft)*
CSEFE1029-100
RJ-45, 100 m (328 ft)*
CSEFE1029-101
RJ-45, 100 m (328 ft)*
The CSEFE10xx-10x media converter is designed to be installed in pairs, where
one is the local media converter and the other is the remote. For example, a local
CSEFE1011-100 converter is connected, via fiber, to a remote CSEFE1011-100
converter.
For a single fiber network, a local CSEFE1029-100 is connected, via fiber, to a
remote CSEFE1029-101 converter.
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network.
(TX) = transmit, (RX) = receive
Port Two - Fiber Optic
ST, 1310 nm single mode
duplex fiber, 20 km (12.4 miles)*
SC, 1310 nm single mode
duplex fiber, 20 km (12.4 miles)*
SC, 1310 nm single mode
duplex fiber, 40 km (24.8 miles)*
ST, 1310 nm single mode
duplex fiber, 40 km (24.8 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single fiber, 20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single fiber, 20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .6
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSEFE1012-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks CSEFE1012-100

Summary of Contents for Transition Networks CSEFE1012-100

  • Page 1: Table Of Contents

    100 Mb/s copper to fiber. Part Number Port One - Twisted-Pair Port Two - Fiber Optic Copper CSEFE1012-100 RJ-45, 100 m (328 ft)* ST, 1310 nm single mode duplex fiber, 20 km (12.4 miles)* CSEFE1014-100 RJ-45, 100 m (328 ft)* SC, 1310 nm single mode duplex fiber, 20 km (12.4 miles)*...

  • Page 2: Installation

    = copper and fiber links are at 100Mb/s. down = copper and fiber links are at 10 Mb/s. NOTE: The CSEFE10xx-10x media converters are fully compliant with 10Base-T, 100Base-TX, and 100Base-FX standards and, therefore, can be connected to any compliant 10Base-T, 100Base-TX, and 100Base-FX devices.

  • Page 3: Install The Fiber Cable

    CSEFE10xx-10x Installation -- Continued Install the Fiber Cable The CSEFE10xx-10x is designed to be installed in pairs over the fiber link, where one is the local media converter and the other is the remote. Locate or build fiber-optic cable with male, two-stranded TX to RX connectors installed at both ends.

  • Page 4: Cable Specifications

    24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: Single mode: CSEFE1012-100 Fiber-optic Transmitter Power: Fiber-optic Receiver Sensitivity: Link Budget: CSEFE1014-100 Fiber-optic Transmitter Power: Fiber-optic Receiver Sensitivity:...

  • Page 5: Technical Specifications

    CSEFE10xx-10x Technical Specifications For use with Transition Networks Model CSEFE10xx-10x or equivalent. Standards: IEEE 802.3™, 10Base-T, 100Base-TX, 100Base-FX Data Rate: 10 Mb/s, 100 Mb/s Dimensions: 3.4" x 0.87" x 5" (86 mm x 22 mm x 182 mm) Weight: 3 oz (91 g) (approximate) Power Consumption: 3.6 watts Environment:...
  • Page 6 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CSEFE10xx-10x Series Media Converters Part Number(s): CSEFE1012-100, CSEFE1014-100, CSEFE1015-100, CSEFE1022-100, CSEFE1029-100, CSEFE1029-101 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CSEFE10xx-10x to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
