Transition Networks CGFEB10xx-12x User Manual

Slide-in-module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

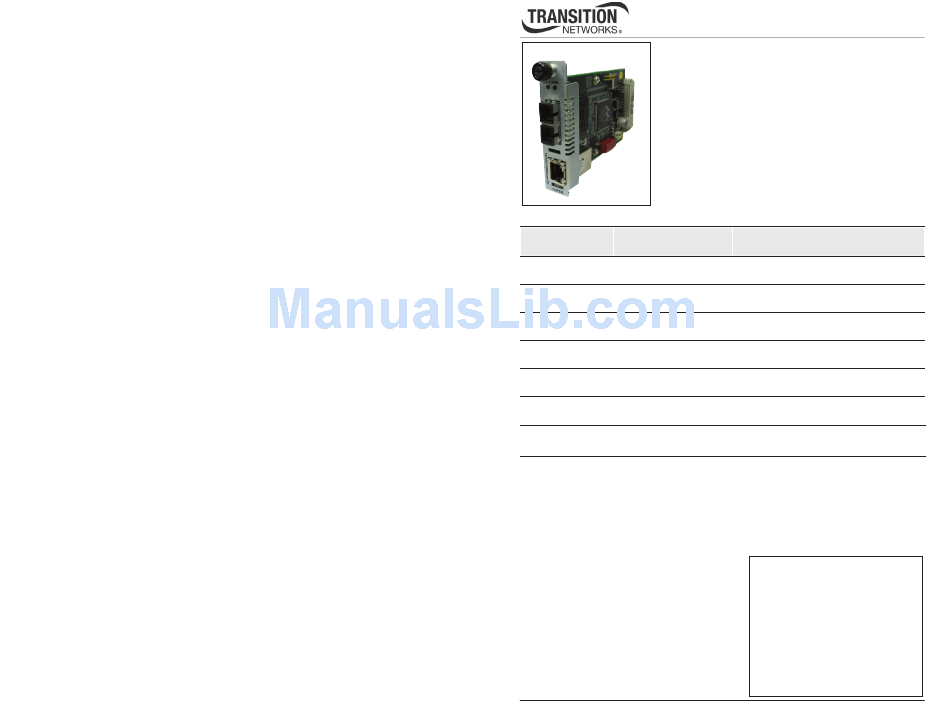

User's Guide
CGFEB10xx-12x
CGFEB10xx-12x
Converter
• Copper to Fiber
• 10/100/1000Base-T to 1000Base-SX/LX

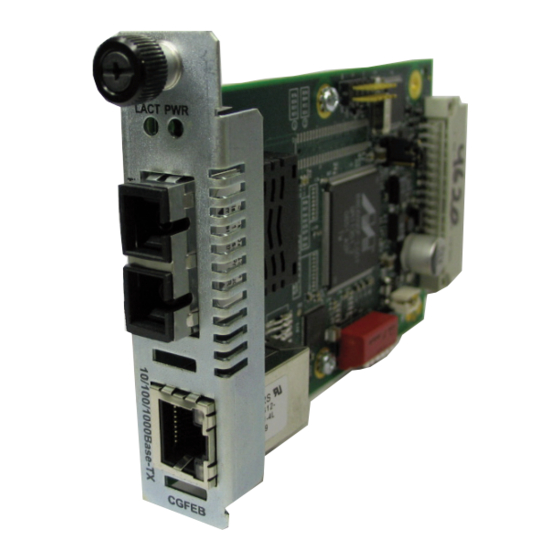

Transition Networks CGFEB10xx-12x series media
converters, designed to be installed in a PointSystem™
chassis connect 10Base-T, 100Base-TX, or 1000Base-T
twisted-pair copper cable to 1000Base-SX or 1000Base-
LX fiber devices.
The CGFEB10xx-12x has one copper port and one fiber-
optic port.
Part Number
Port 1 - Copper
10/100/1000-Base-T
CGFEB1013-120 RJ-45
100 m (328 ft)
CGFEB1014-120 RJ-45
100 m (328 ft)
CGFEB1015-120 RJ-45
100 m (328 ft)
CGFEB1017-120 RJ-45
100 m (328 ft)
CGFEB1024-120 RJ-45
100 m (328 ft)
CGFEB1035-120 RJ-45
100 m (328 ft)
CGFEB1040-120 RJ-45
100 m (328 ft)
*The CGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks
cannot guarantee a full 2km distance on every installation since the distance is largely
dependent on the quality of the fiber cable installation and splicing.
Distances
Distances listed are the typical maximum cable distances. Actual distance is dependent
on the physical characteristics of the network these devices are operating on.
Slide-in-Module Media
Port 2 - Duplex Fiber-Optic
SC, 1000Base-SX, 850nm multimode
220/550m (720/1,805 ft)
SC, 1000Base-LX, 1310nm single mode
10 km (6.2 miles)
SC, 1000Base-LX, 1310nm single mode
25 km (15.5 miles)
SC, 1000Base-LX, 1550nm single mode
65 km (40.4 miles)
SC, 1000Base-LX, 1300nm multimode
2 km (1.2 miles)*
SC, 1000Base-LX, 1550nm single mode
120 km (77.5 miles)
1000Base-X SFP slot (empty)
Installation . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .8
(DMI) . . . . . . . . . . . . . . . . . . . . . .14
Cable Specifications . . . . . . . . . . .15
Technical Specifications . . . . . . . .17
Troubleshooting . . . . . . . . . . . . .18
Contact Us . . . . . . . . . . . . . . . . .19
Compliance Information . . . . . . .20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGFEB10xx-12x and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks CGFEB10xx-12x

Summary of Contents for Transition Networks CGFEB10xx-12x

  • Page 1: Table Of Contents

    PointSystem™ chassis connect 10Base-T, 100Base-TX, or 1000Base-T twisted-pair copper cable to 1000Base-SX or 1000Base- LX fiber devices. The CGFEB10xx-12x has one copper port and one fiber- optic port. Part Number Port 1 - Copper...

  • Page 2: Installation

    CGFEB10xx-12x CGFEB10xx-12x Installation Part Number Port 1 - Copper Port 2 - Duplex Fiber-Optic 10/100/1000Base-T 1000Base LX CAUTION: Wear a grounding device and observe electrostatic discharge precautions CGFEB1029-120 RJ-45 SC, 1310nm TX/1550nm RX single mode when handling the media converter. Failure to observe this caution could result in 100 m (328 ft) 20 km (12.4 miles)
  • Page 3 Straight-through or crossover twisted-pair cable, depending on installed site devices, MUST be installed at EACH twisted-pair copper link. Panel Fastener Note: Factory default is “A” enabled. Transition Networks recommends leaving the device in the “enable” mode. Slot Hardware/software jumper Media Converter The hardware/software jumper is located on the circuit board (labeled H and S—...
  • Page 4 CGFEB10xx-12x CGFEB10xx-12x Installation—continued Installation -- continued Install the cable Port 2: 1000Base-X Fiber Port Locate a 1000Base-X compliant fiber cable with male, two-stranded TX to RX Port 1: 10/100/1000Base-T Copper Port connectors installed at both ends. Locate a 10/100/1000Base-T compliant copper cable with male, RJ-45 Connect the fiber cables to the media converter’s 1000Base-X fiber port (port...

  • Page 5: Operation

    100 Mb/s, half-duplex). Disabling this feature gives the user the ability to force the connection is connection to the best mode of operation. transmitting or receiving data. Note: The CGFEB10xx-12x and SGFEB10xx-12x also support 1000 Mbps fiber Auto-Negotiation. Copper status LEDs Link Pass-Through The status LEDs for the copper connection are integrated into the RJ-45 port.
  • Page 6 Operation—continued Operation—continued Product features—continued SNMP See the on-line documentation that comes with Transition Networks FocalPoint™ Half-Duplex network (512-Bit Rule) software for applicable commands and usage. In a half-duplex network, the maximum cable lengths are determined by the round Use SNMP at an attached terminal or at a remote location to monitor the media trip delay limitations of each Fast Ethernet collision domain.
  • Page 7 CGFEB10xx-12x CGFEB10xx-12x Operation—continued Operation—continued Bandwidth allocation Product features—continued It allows setting the bandwidth in varied increments, starting at 64 Kbps to full IEEE802.1q VLAN tagging and double tagging (Q in Q) bandwidth. The 802.1Q specification establishes a standard method for inserting virtual LAN Rate limiting based on frame priorities can also be configured.

  • Page 8: Diagnostic Monitoring Interface

    The following DMI port screen and explanation table contains brief definitions of the The physical characteristics must meet or exceed IEEE 802.3™ specifications. DMI support offered on Transition Networks’ SFP optical interfaces. For further Fiber cable information, please see the help option on the CPSMM-xxx SNMP agent or Focal <10 -9...

  • Page 9: Technical Specifications

    *Manufacturer’s rated ambient temperature: Tmra range for the CGFEB10xx-12x • All pin pairs (1&2, 3&6, 4&5, 7&8) are active pins in a Gigabit Ethernet network. depends on the Transition Networks PointSystem™ chassis in which this slide-in- • Use only dedicated wire pairs for the active pins: module will be installed.

  • Page 10: Troubleshooting

    CGFEB1029-123, CGFEB1029-126, CGFEB1029-127,CGFEB1035-120, • Proceed to step 4. CGFEB1040-120 Purpose: To declare that the CGFEB10xx-12x to which this declaration refers is in conformity with Is the Speed LED illuminated? the following directive(s) standard(s): EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A; EN55024:1998+A1:2001+A2:2003;...

  • Page 11: Compliance Information

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
