Transition Networks CFETF1011-105 User Manual

Cfetf10xx-105 series slide-in-module media converter fast ethernet copper to fiber 100base-tx to 100base-fx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

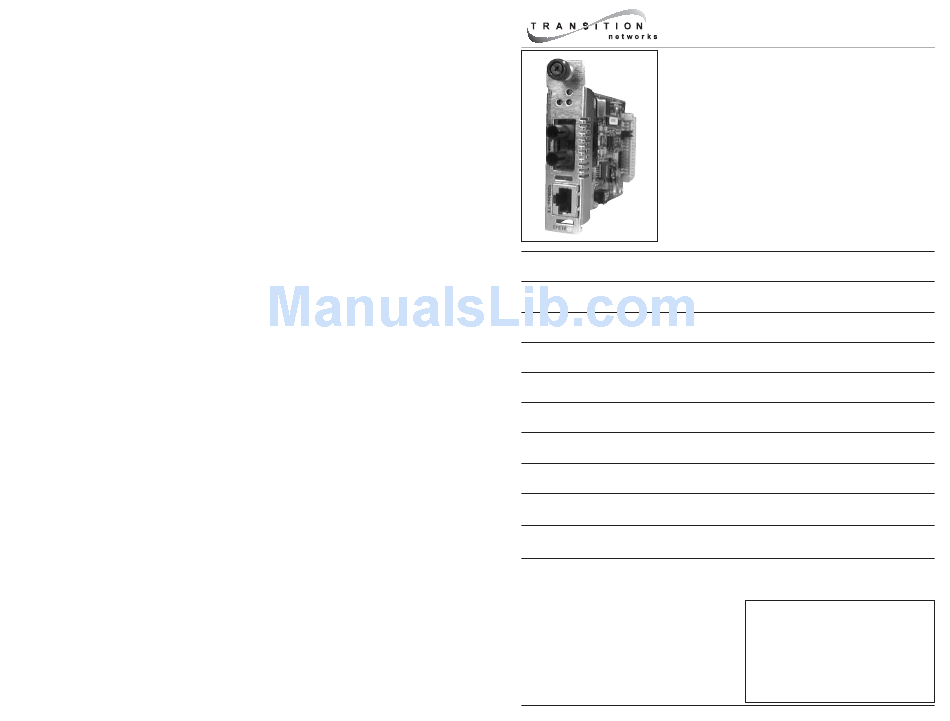

User's Guide
CFETF10xx-105
Slide-in-Module Media Converter
• Fast Ethernet™
• Copper to Fiber
• 100Base-TX to 100Base-FX

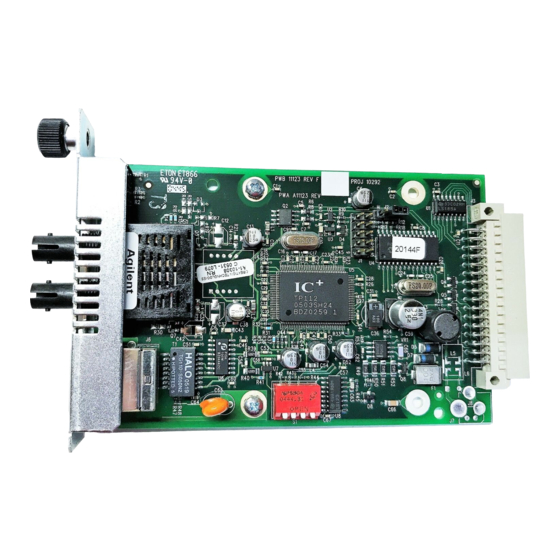

Transition Networks CFETF10xx-105 series Fast
Ethernet™ 100Base-TX to 100Base-FX media
converters (designed to be installed in a
PointSystem™ chassis) connect 100Base-TX twisted-
pair copper cable to multimode or single mode
100Base-FX fiber-optic cable.
Part Number
Port One - Copper
100Base-TX
CFETF1011-105 RJ-45
100 m (328 ft)*
CFETF1013-105 RJ-45
100 m (328 ft)*
CFETF1014-105 RJ-45
100 m (328 ft)*
CFETF1015-105 RJ-45
100 m (328 ft)*
CFETF1016-105 RJ-45
100 m (328 ft)*
CFETF1017-105 RJ-45
100 m (328 ft)*
CFETF1018-105 RJ-45
100 m (328 ft)*
CFETF1019-105 RJ-45
100 m (328 ft)*
CFETF1039-105 RJ-45
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Port Two - Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm single mode
20 km (12.4 miles)*
SC, 1300 nm single mode
40 km (24.9 miles)*
SC, 1310 nm single mode
60 km (32.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
LC 1300 nm multimode
2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFETF1011-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CFETF1011-105

Summary of Contents for Transition Networks CFETF1011-105

  • Page 1 100Base-FX fiber-optic cable. Part Number Port One - Copper Port Two - Fiber-Optic 100Base-TX 100Base-FX CFETF1011-105 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CFETF1013-105 RJ-45 SC, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)*...

  • Page 2: Installation

    CFETF10xx-105 Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch and the jumper and when installing the slide-in-module media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Auto-Negotiation (up=Enable) Set the 4-Position Switch •...

  • Page 3: Connect The Fiber Cable

    CFETF10xx-105 Installation -- Continued Connect the Fiber Cable Locate or build 100Base-FX compliant fiber cable with male, two- stranded TX to RX connectors installed at both ends. Connect the fiber cables to the CFETF10xx-105 media converter as described: • Connect the male TX cable connector to the female TX port. •...

  • Page 4: Cable Specifications

    CFETF10xx-105 Operation -- Continued Link Pass-Through When the Link Pass-Through feature is activated (see page 2), the media converter monitors both the fiber and copper RX (receive) ports for loss of signal. In the event of a loss of an RX signal (1), the media converter will automatically disable the TX (transmit) signal (2), thus, “passing through”...

  • Page 5: Technical Specifications

    CFETF10xx-105 Cable Specifications -- Continued CFETF1011-105 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB CFETF1013-105 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm...

  • Page 6: Troubleshooting

    Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CFETF10xx-105 Series media converters Part Number(s): CFETF1011-105, CFETF1013-105, CFETF1014-105, CFETF1015-105, CFETF1016-105, CFETF1017-105, CFETF1018-105, CFETF1019-105 CFETF1039-105 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CFETF10xx-105 to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
