Copley Controls Xenus PLUS Manual page 13

Xenus

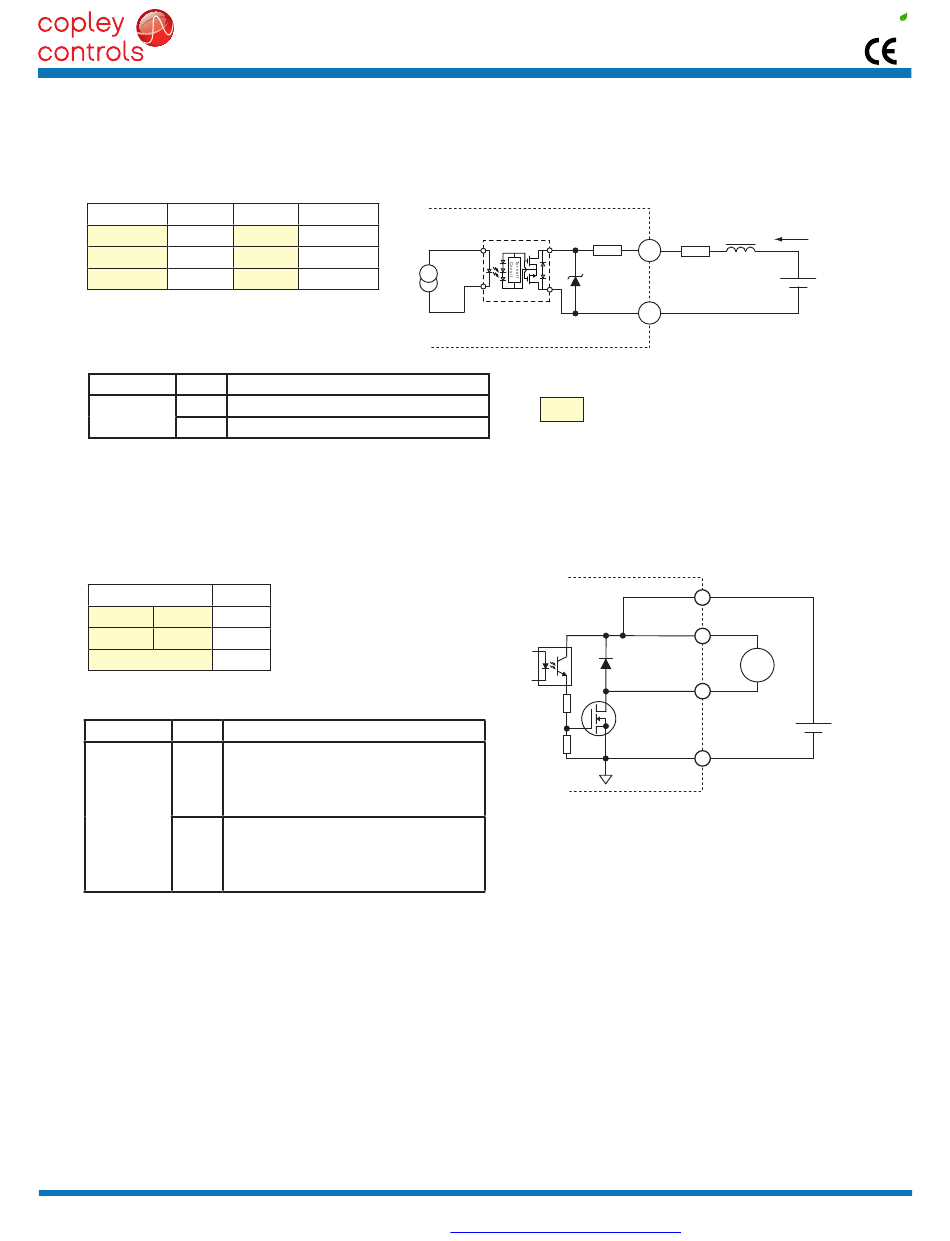

OUTPUTS
OPTO-ISOLATED OUTPUTS [OUT1~3]
30 Vdc max, 24V typical
Zener clamping diodes across outputs allow driving of resistive-inductive (R-L) loads without external flyback diodes.
[OUT1~3] SIGNALS
Signal Pins
[OUT1+] J9-19
[OUT2+] J9-20
[OUT3+] J9-21
HI/LO DEFINITIONS: [OUT1~3]
Input State
HI
OUT1~3
LO
BRAKE OUTPUTS [OUT6,7]
These outputs are open-drain MOSFETs with an internal flyback diode connected to the +24 Vdc input. It can sink up to 1A
from a motor brake connected to the +24 Vdc supply. The operation of the brake is programmable with CME 2. It can also
be programmed as a general-purpose digital output.
[OUT6~7] BRAKE SIGNALS
Signal
BRK-A [OUT6]
BRK-B [OUT7]
BRK-24V
HI/LO DEFINITIONS: [OUT6~7] BRAKE
Input State
HI
BRK-A,B
OUT6,7
LO
CME2 Default Setting for Brake Outputs [OUT6,7] is "Brake - Active HI"
Active = Brake is holding motor shaft (i.e. the Brake is Active)
Motor cannot move
No current flows in coil of brake
CME2 I/O Line States shows Output 6 or 7 as HI
BRK Output voltage is HI (24V), MOSFET is OFF
Servo drive output current is zero
Servo drive is disabled, PWM outputs are off
Inactive = Brake is not holding motor shaft (i.e. the Brake is Inactive)
Motor can move
Current flows in coil of brake
CME2 I/O Line States shows Output 6 or 7 as LO
BRK output voltage is LO (~0V), MOSFET is ON
Servo drive is enabled, PWM outputs are on
Servo drive output current is flowing
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Web:
PLUS
Signal Pins
[OUT1-] J9-10
[OUT2-] J9-11
[OUT3-] J9-12
Condition
Output transistor is ON, current flows
Output transistor is OFF, no current flows
Pins
J5-3
J5-2
J5-4
Condition
Output transistor is OFF
Brake is un-powered and locks motor shaft
Motor cannot move
Brake state is Active
Output transistor is ON
Brake is powered, releasing motor shaft
Motor is free to move
Brake state is NOT-Active
2-Axis EtherCAT
[OUTn+]
ASSR-1218
20
36V
[OUTn-]
±30Vmax
±24V typical
+24V
Tel: 781-828-8090
http://www.copleycontrols.com
800-1782
J9
60mA
400Ω
max
min*
+
Vdc
* at 24 Vdc
J5
5
24V
BRK-24V 4
BRK
BRK-A,B 3,2
24V
RTN 1
Fax: 781-828-6547
Page 13 of 32
