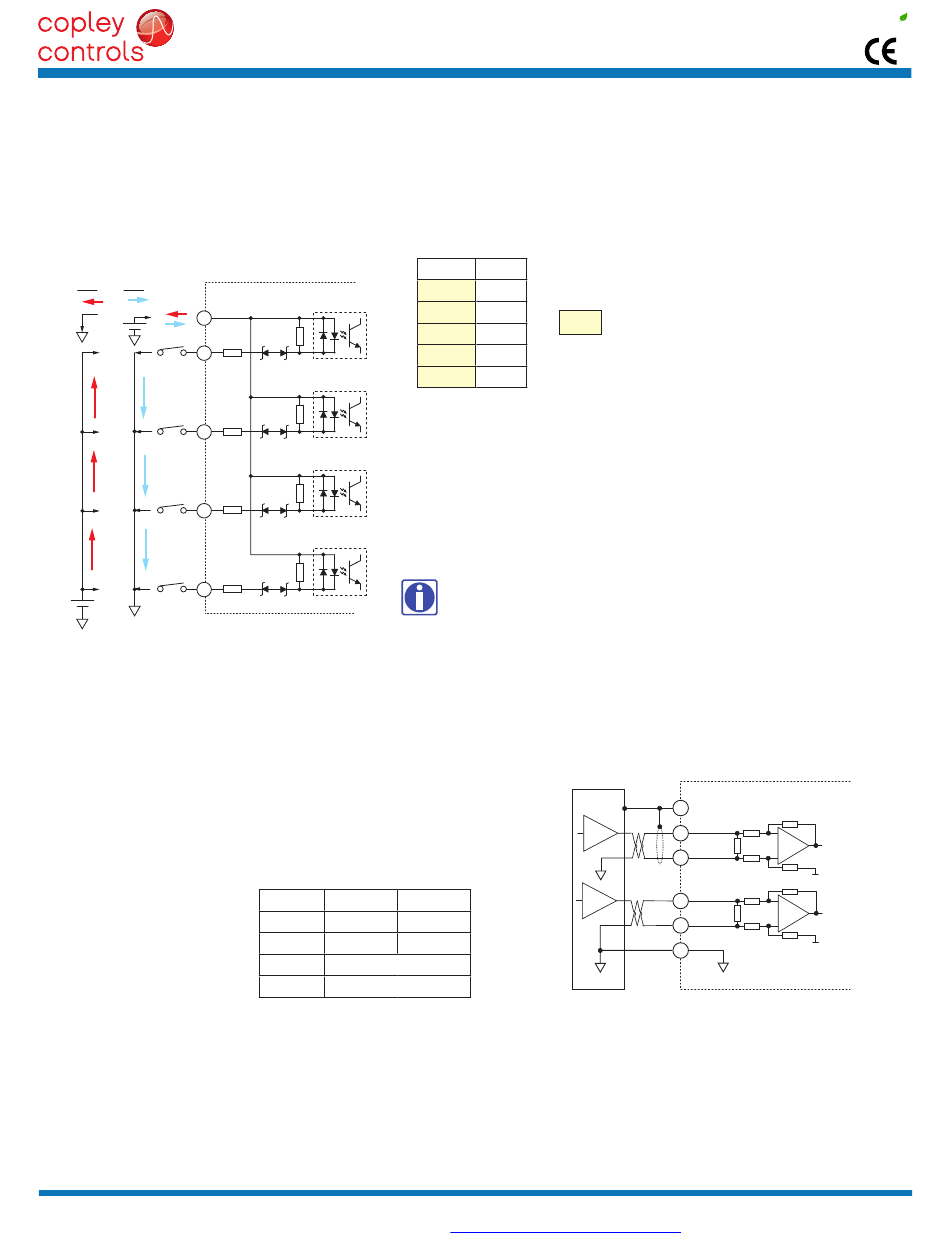

OPTO-ISOLATED DIGITAL INPUTS (GENERAL PURPOSE)
These inputs have all the programmable functions of the GP inputs plus opto-isolation. There are four inputs, with a common terminal.
Grounding the common terminal configures the inputs to work with current-sourcing outputs from controllers like PLC's. When the
common terminal is connected to +24V, then the inputs will be activated by current-sinking devices such as NPN transistors or N-channel
MOSFETs. The minimum ON threshold of the inputs is ±15 Vdc.
IN THE GRAPHICS BELOW, "24V" IS FOR CONNECTIONS TO CURRENT-SOURCING OUTPUTS AND
"GND" IS FOR CURRENT-SINKING OUTPUTS ON THE CONTROL SYSTEM
[IN6~9]
±30 Vdc max
J9
24V GND
[COMM1]
24V
+ 6
[IN6]
2
[IN7]
3
[IN8]
4
[IN9]
5
+
24V
ANALOG INPUTS
The analog inputs have a ±10 Vdc range at 14-bit resolution
As reference inputs they can take position/velocity/torque commands
from a controller. If not used as command inputs, they can be used as
general-purpose analog inputs.
