1.1 Installation of Remote Control

1.1.1 Installation of Receiver Antenna
1. Keep antennas as straight as possible, or the effective control range will reduce.
2. Big models may contain metal parts that influence signal emission. In this case. antennas should be
positioned at both sides of the model to ensure the best signal status in all circumstances.
3. Antennas should be kept away from metal conductor and carbon fiber at least half inch away and no
over bending.
4. Keep antennas away from motor, ESC or other possible interference sources.
5. Sponge or foam material is advised to use to prevent vibration when installing receiver.
6. Receiver contains some electronic components of high-precision. Be careful to avoid strong
vibration and high temperature.
7. Special vibration-proof material for R/C like foam or rubber cloth is used to pack to protect receiver.
Keeping the receiver in a well sealed plastic bag can avoid humidity and dust, which would possibly
make the receiver out of control.
When all the above steps are complete, please turn off the transmitter and repower on to test if the
receiver is correctly connected with it.
1.1.2 T8S Battery Charging
The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash
with a DD warning tone. Make sure to charge the battery in time to avoid the possible damage by over
discharge.
T8S charging is as simple as only an android USB cable needed, connecting to the computer or
portable charger.
1.2 Basic Setup

1.2.1 Compatible Receivers

The standard receiver equipped to T8S is R8EF, 2.4G 8-channel receiver with SBUS,PPM and PWM
signal output supported. R8FM is another compatible receiver with extreme light weight of 2.5g and
double signal output of SBUS and PPM. The control distance of both receiver is up to 2000 meters.

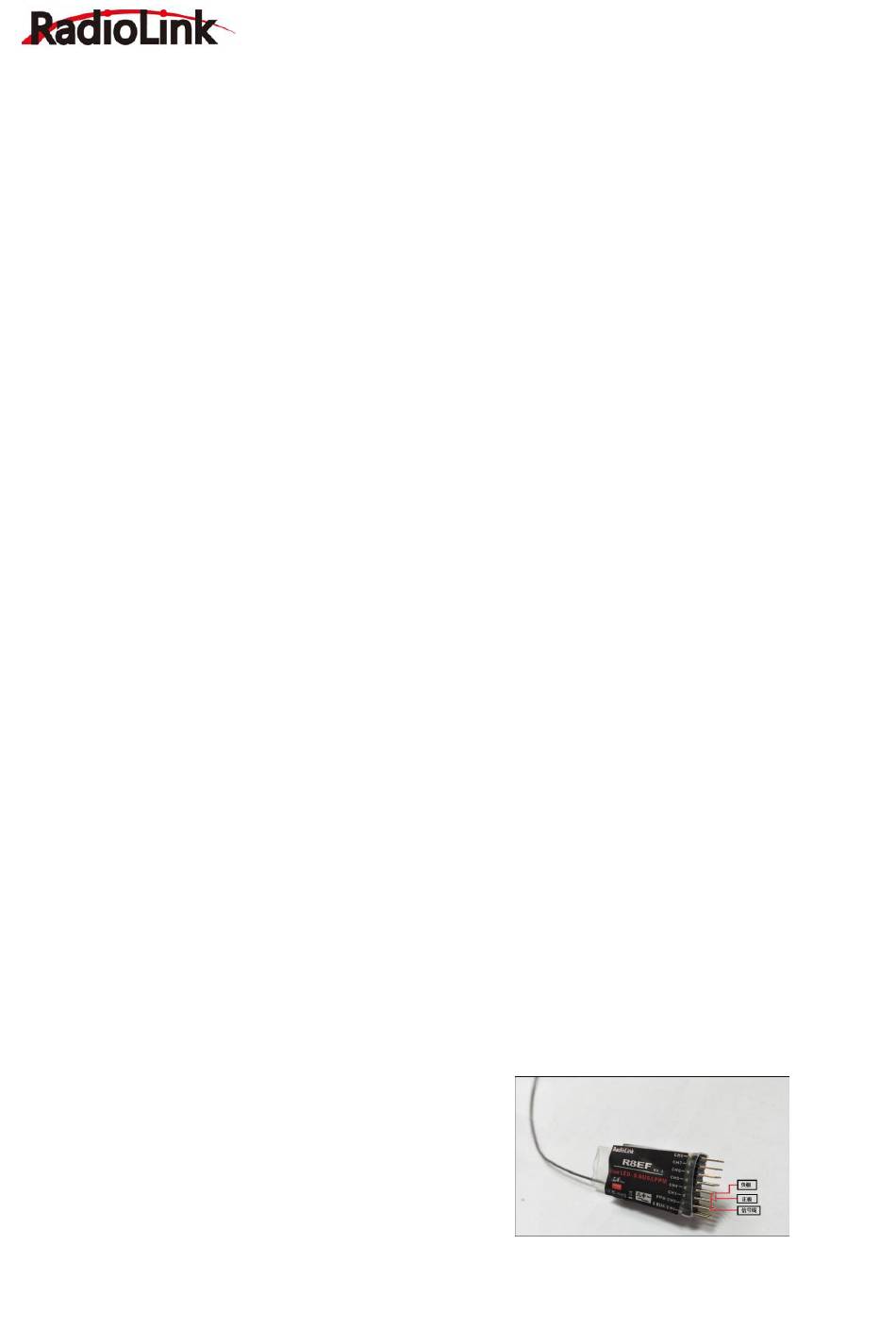

R8EF Parameters
1) Channel Qty: 8
2) Operating Voltage：4.8-10V
3) Operating Current：30mA
（Input Voltahe 5V）
4) Dimension : 48.5*21*11mm
5) Weight：7g
