Chapter 1 Introduction

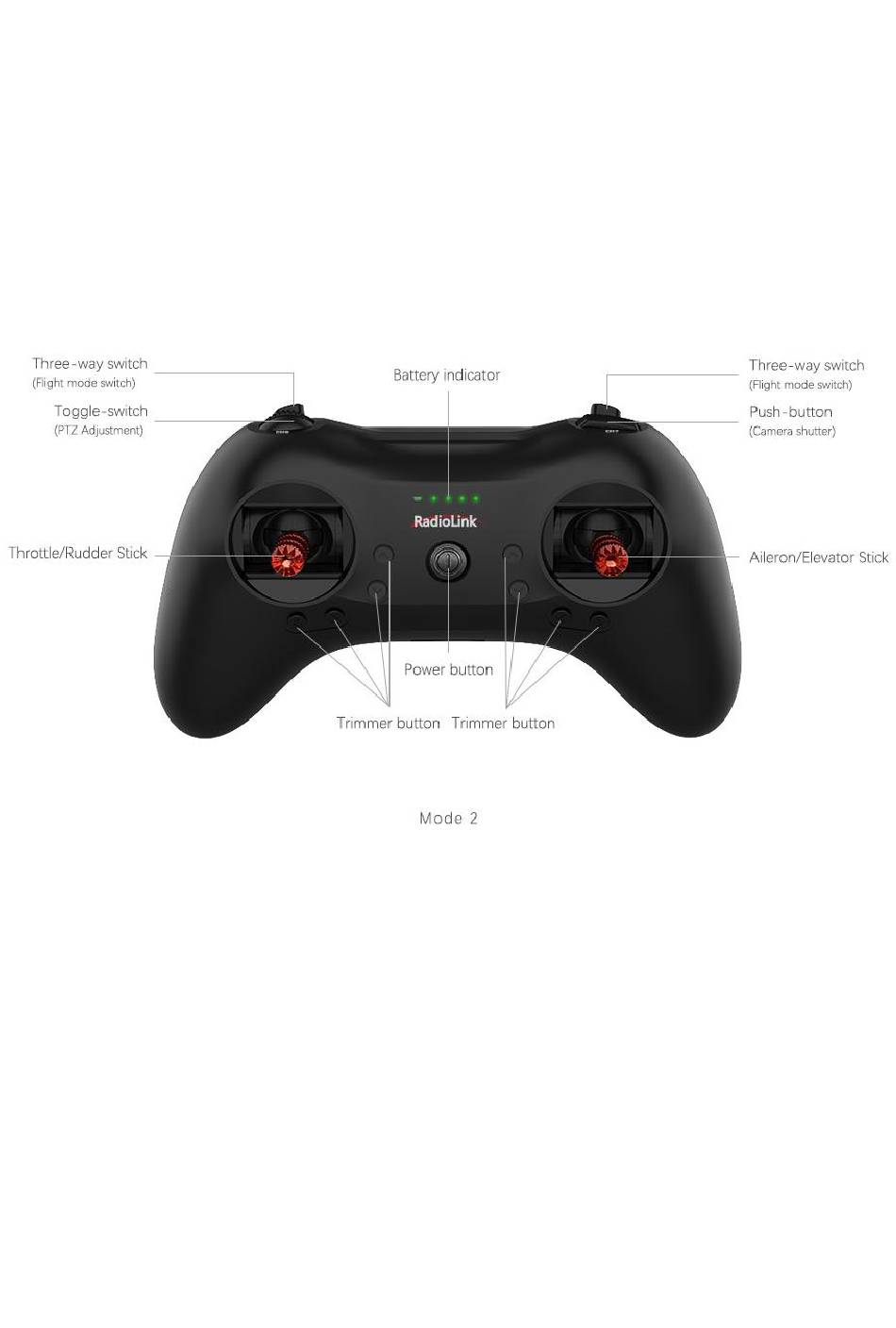

As image of T8S (Mode 2) shown below, there are two 3-way switches, one toggle-switch, one
push-button, eight trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand)
or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.
Factory setting by default: CH5/3-way switch on the right, CH6/ Push-button, CH7/3-way switch on the
left, CH8/toggle-switch.
CH7
CH5
CH6
CH8

1.1 Installation of Remote Control

1.1.1 Installation of Receiver Antenna
1. Keep antennas as straight as possible, or the effective control range will reduce.
2. Big models may contain metal parts that influence signal emission. In this case. antennas should be
positioned at both sides of the model to ensure the best signal status in all circumstances.
3. Antennas should be kept away from metal conductor and carbon fiber at least half inch away and no over
bending.
4. Keep antennas away from motor, ESC or other possible interference sources.
5. Sponge or foam material is advised to use to prevent vibration when installing receiver.
6. Receiver contains some electronic components of high-precision. Be careful to avoid strong vibration and
high temperature.
7. Special vibration-proof material for R/C like foam or rubber cloth is used to pack to protect receiver. Keeping
