REVERSE: Defines the relationship between the transmitter controls and the receiver output for
channels with option of NORM and REV. Refer to 3.3.2 for more details .
SUB-TRIM: Makes small changes or corrections to the neutral position of each servo. Refer to 3.3.2
for more details .
END POINT: Sets the range of each channel(in percentage);
The most flexible version of travel adjustment is available. It independently adjusts each end of each
individual servo' s travel, rather than one setting for the servo affecting both directions. Refer to 3.3.2
for more details .
FAIL SAFE: Sets responsive action of model in case of signal loss or low Rx voltage(in percentage).
Refer to 3.3.2 for more details .
AUX-CH: Defines the relationship between the transmitter controls and the receiver output for
channels 5-8. Refer to 3.3.4 for more details .
DELAY: Adjust the ratio between the position of servos and the actual operation. Refer to 3.3.2 for
more details .

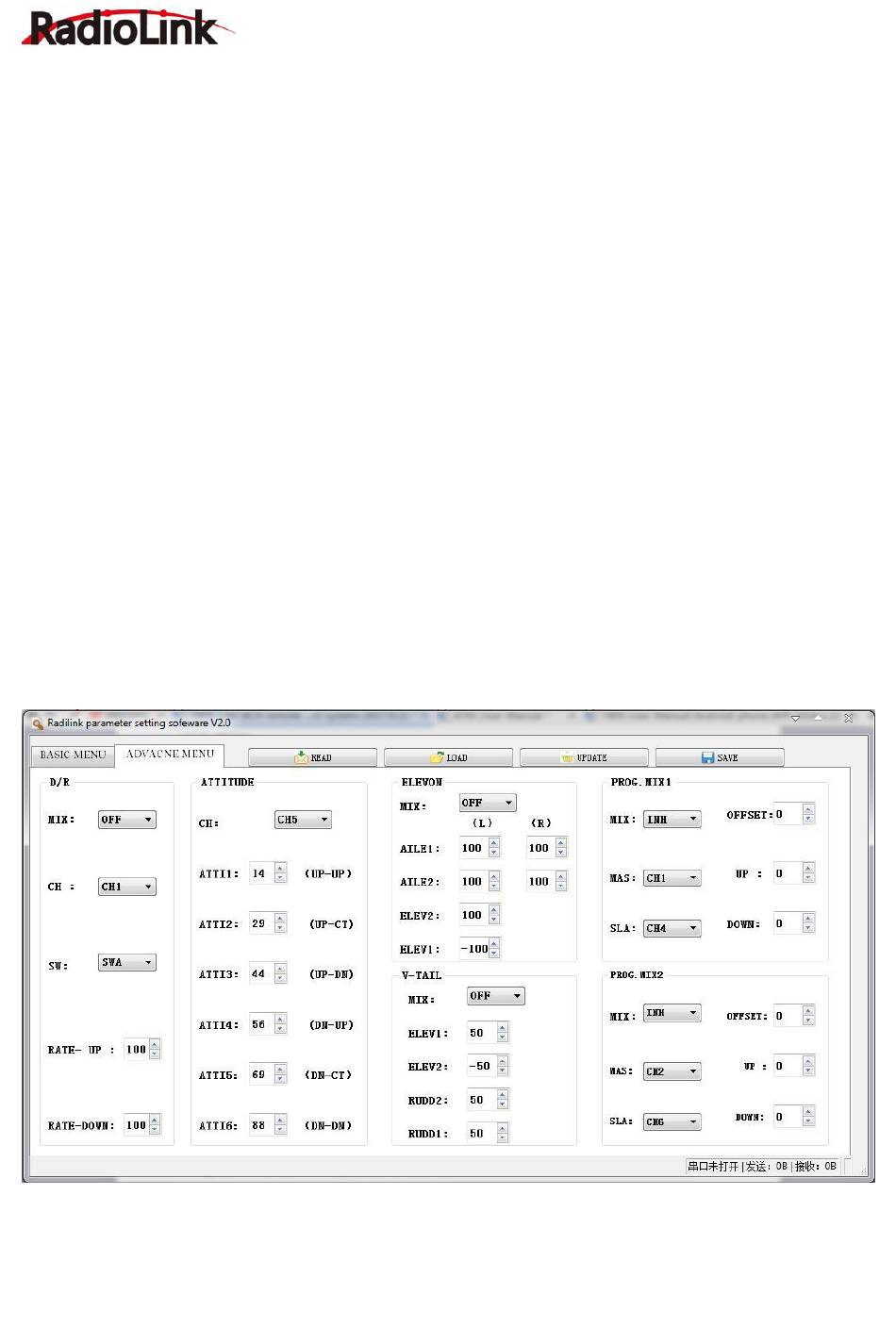

4.2.2 ADVANCE Menu

There are six parameters setup "D/R" "ATTITUDE" "ELEVON" "V-TAIL"PROG.MIX1/PROG.MIX2
as below shown:
Refer to 3.3.3 and 3.3.4 for more setup details of all parameters.
