(DIS)CONNECT: When APP is opened on the mobile, T8S will be connected automatically. If can't be
identified, click DISCONNECT then CONNECT again.
READ: Click READ, the APP will start reading the data in T8S, the process won't complete until 4 D
sounds are heard. Every time reopen the APP, the data displayed are default. If any parameter is
changed, it can't be displayed until clicking READ.
UPDATE: Click to update the changed data into the T8S and a D sound means update complete. If no D
sound means fails to update. Click UPDATE each time parameter is modified.
SAVE: Click to save the APP data in the /model/model01.text in the mobile and APP will automatically
create a model01. txt file.
LOAD: Click LOAD and the APP will take the data from /model/model01.txt. APP will notify if this file
can't be found.
CLOSE: Click Close to exit.
Note
There is T8S(T8FB) voltage displaying on each menu.
Whenever parameter modification is needed, click READ then set the data as wish then click 'UPDATE"
to finish parameter setting.

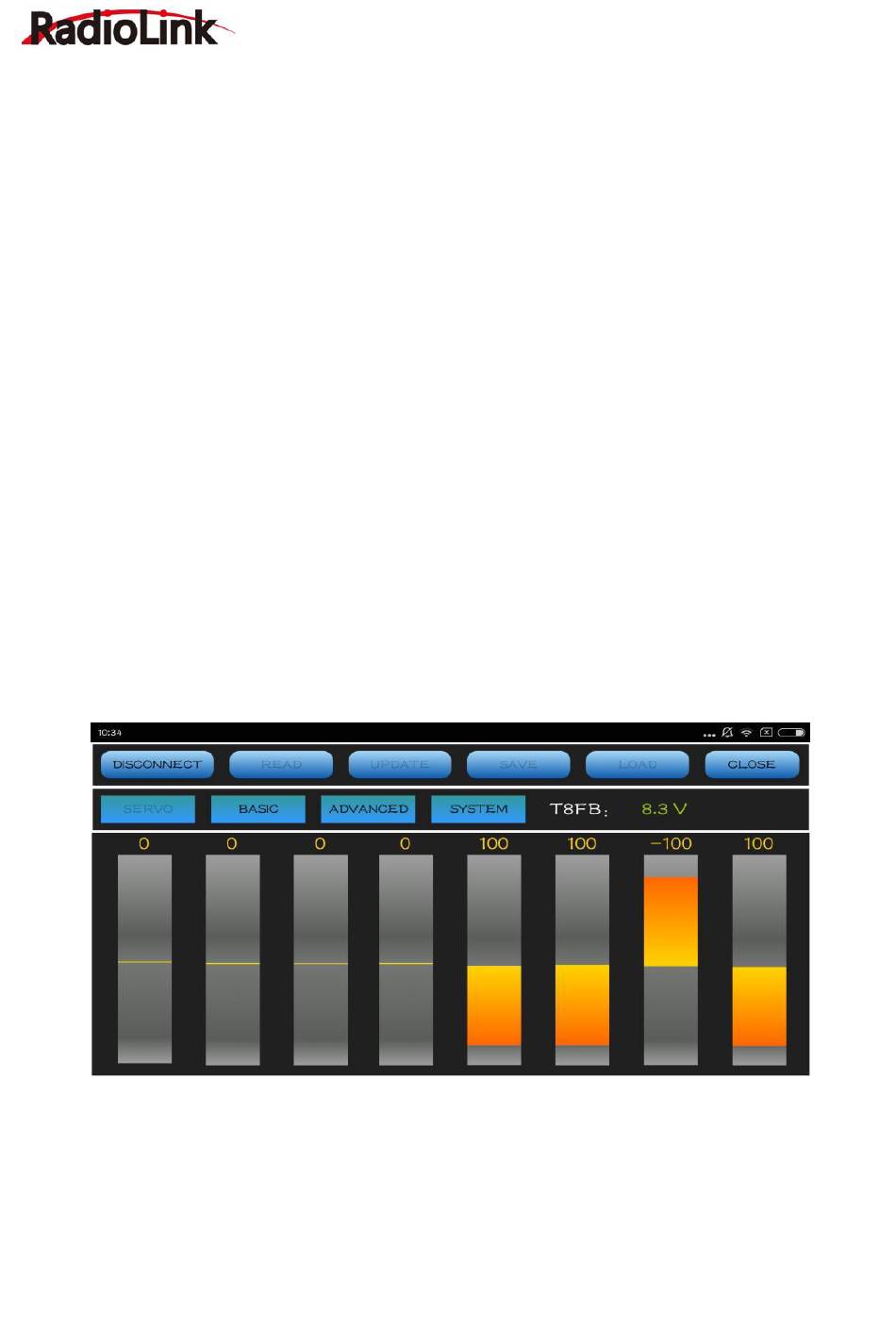

3.3.1 SERVO Menu

The 8 rectangles shows the CH1-CH8 servos range(4 basic channels and 4 auxiliary channel) from left
to right.
