F/S: Sets responsive action of model in case of signal loss or low Rx voltage(in percentage).
Each channel can be set independently.
• The NOR (normal) setting holds the servo in its last commanded position.
• The F/S (Fail Safe) function moves each servo to a predetermined position.
Note
The setting of the throttle F/S also applies to the low battery voltage. F/S value 0 means throttle stick
at the lowest point while 50 means at the central point.
The F/S function is used in certain competitions to ensure safety landing of the model prior to flying
away and dropping. Conversely, it can also be used make all servos neutral to maximize the flight
time.
DELAY: Adjusts the synchronous ratio between the servos position and the actual operation. The
default value is 100 by factory setting meaning no delay.

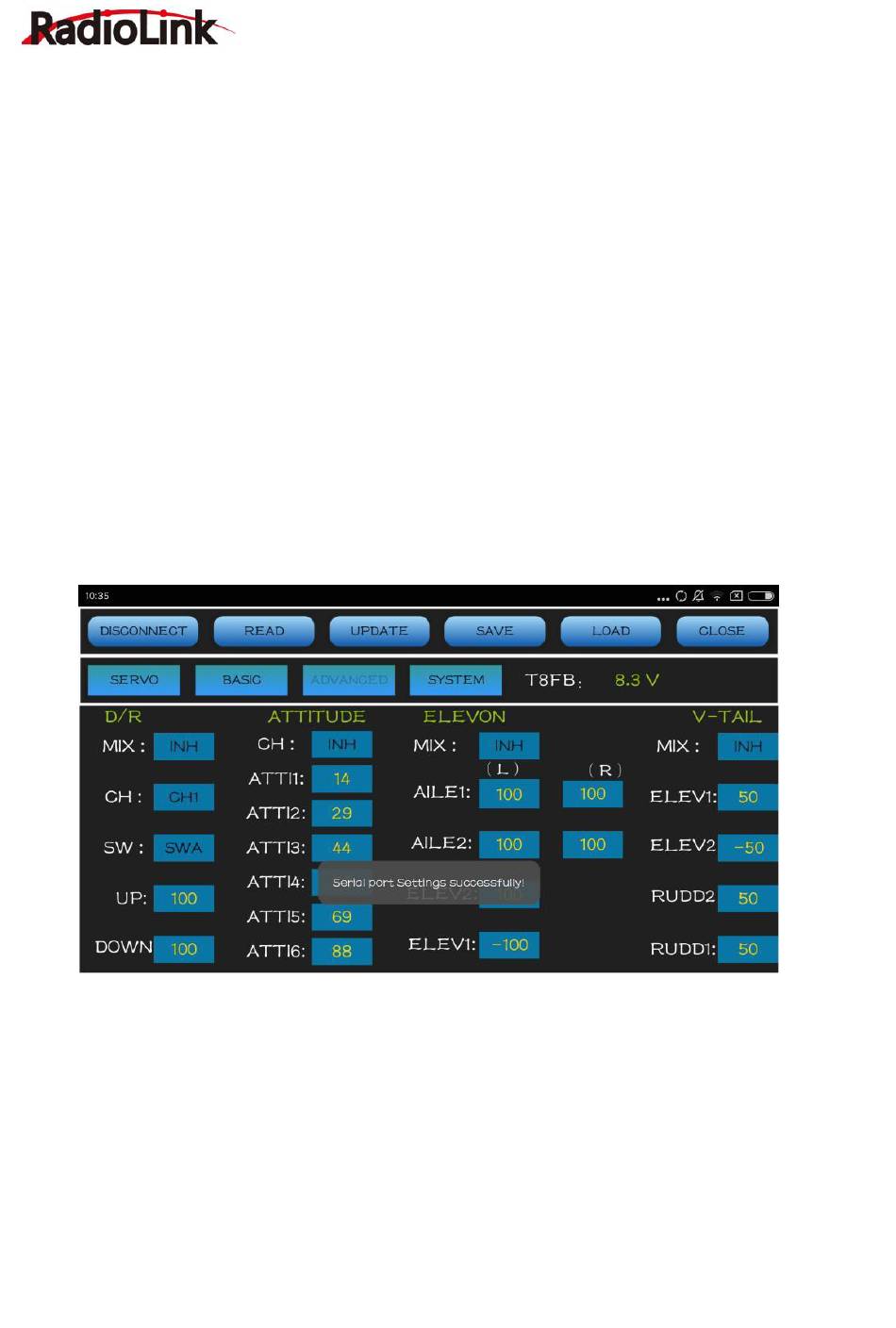

3.3.3 ADVANCED Menu

There are four parameters to setup: "D/R" "ATTITUDE" "ELEVON" "V-TAIL"
D/R: Sets the auxilary switch to control the max and min values of corresponding channel range. Turn
on "MIX" (mix control) first and choose an auxilary switch to flip and set the max/min range value to
its correspoding channel by toggling. In the example picture shown above: When flip SWA upward and
toggle CH1 stick , it means the max/min range of CH1 can be +100 and -100. If the UP value modified
to 50, it means the max range can only be +50/-50 when toggle CH1 up and down. 'DOWN" means
when flip SWA downward, the max/min value of CH1 is +100/-100.
ATTITUDE: Turn on"CH" first and select the preferred channel. The values behind each channel means
different control percentage output different control signals.
