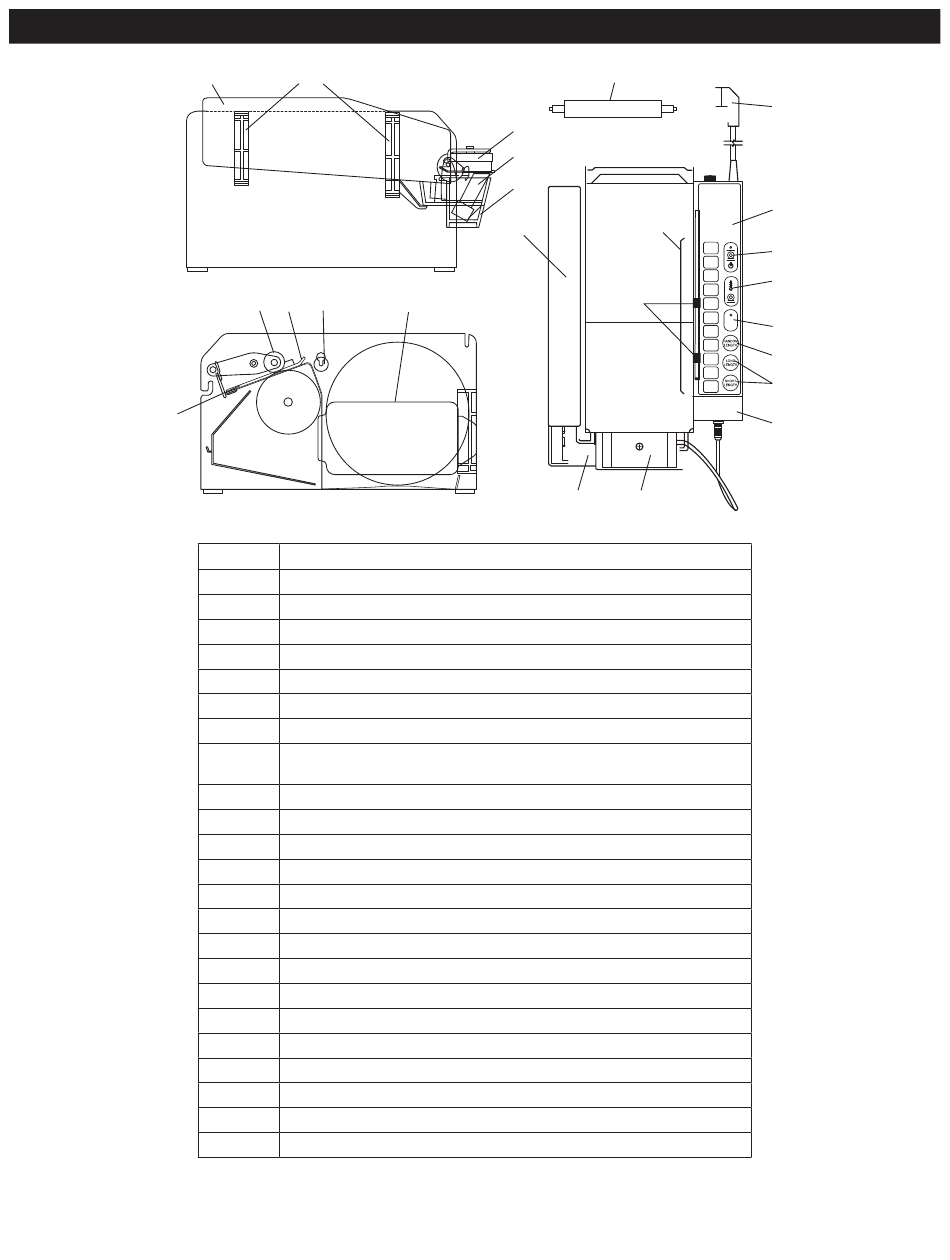

KEY
A
Power Cord
B
Side Cover
C
Power
D
Control Panel
E
Green Key 'Random Length' – Dispenses tape
F
Keys for 11 presets of tape length
G
+2 (inches) key – presets length by 2"
'Short Length' – Sets one length of tape shorter
H
'Long Length' – Sets one length of tape longer than the first one
I
Top Heater Switch
L
Top Heater
M
Water Reservoir
N
Water Bottle
Q
Colored Indicators
10
Water Reservoir
11
Bottle Holder
12
Top Heater 24V
13
Brush
14
Complete water tank without Top Heater and without brush
15
Knives (2)
16
Rolls (2)
17
Upper Paper Plate
18
20mm Diam. Roll
19
Roll Guide Plate
REFERENCE
12
13
14
N
19
M
DESCRIPTION
1-800-295-5510
uline.com
19
A
D
F
C
44
40
I
36
100°
8O°
32
°C
Q
28
24
G
+2
20
16
E
12
8
H
4
B
L
0316 IH-1036
