U-Line TORK XPRESS H-1595 Installation Manual

H-1595
TORK XPRESS
® ®

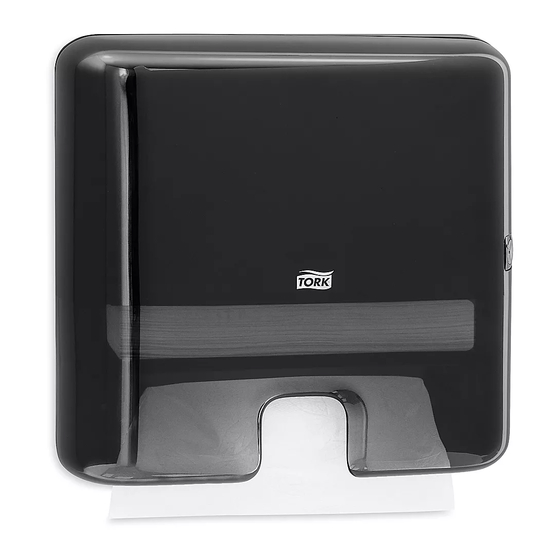

MINI TOWEL DISPENSER
TOOLS NEEDED
Drill 6 mm Drill Bit
Dispenser x 1
USING THE KEY AND OPTIONAL PUSH BUTTON MODE
USING THE KEY
1. To open dispenser while keeping it locked, insert key
at position A. (See Figure 1)
2. Turn and hold key clockwise to open dispenser.
(See Figure 2)
NOTE: Release key back to position A after
closing to lock dispenser.
PAGE 1 OF 9
WALL-MOUNT
Phillips Screwdriver Level
Dispenser Key x 1
Figure 1
Figure 2
1-800-295-5510
uline.com
Tape Measure
PARTS
Wall Anchor x 4
USING PUSH BUTTON MODE
1. Insert key at position A. (See Figure 1)
2. Turn counterclockwise to position B. (See Figure 3)
3. Remove key and push in lock to open dispenser.
(See Figure 4)
Para Español, vea páginas 4-5.
Pour le français, consulter les pages 7-9.
Screw x 4
Figure 3
Figure 4
0721 IH-1595
