U-Line TORK XPRESS H-1595 Quick Start Manual

H-1595, H-1596, H-10397

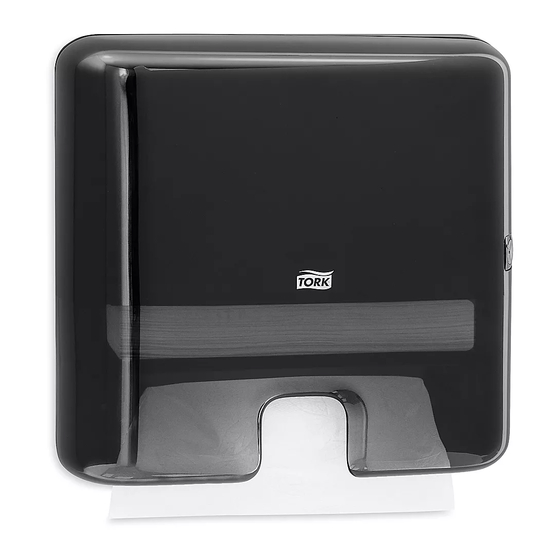

TORK XPRESS
®
TOWEL DISPENSERS
TOOLS NEEDED
Electric 6 mm
Drill Drill Bit
Dispenser x 1
USING THE KEY AND OPTIONAL PUSH BUTTON MODE
USING THE KEY
1. To open dispenser while keeping it locked, insert key
at position A. (See Figure 1)
Figure 1
2. Turn and hold key clockwise to open dispenser.
(See Figure 2)
NOTE: Release key back to position A after
closing to lock dispenser.
Figure 2
PAGE 1 OF 9
WALL-MOUNT
®
Phillips
Screwdriver
Dispenser Key x 1
1-800-295-5510
uline.com
Tape Level
Measure
PARTS
Wall Anchor x 4
(not included)
USING PUSH BUTTON MODE
1. Insert key at position A. (See Figure 1)
2. Turn counterclockwise to position B. (See Figure 3)
Figure 3
3. Remove key and push in lock to open dispenser.
(See Figure 4)
Figure 4
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Screw x 4
(not included)
0224 IH-1595
