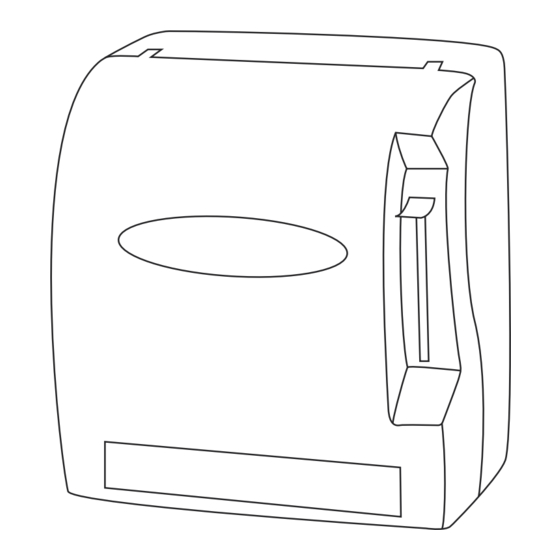

Roll paper towel dispenser
Hide thumbs Also See for H-1131:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

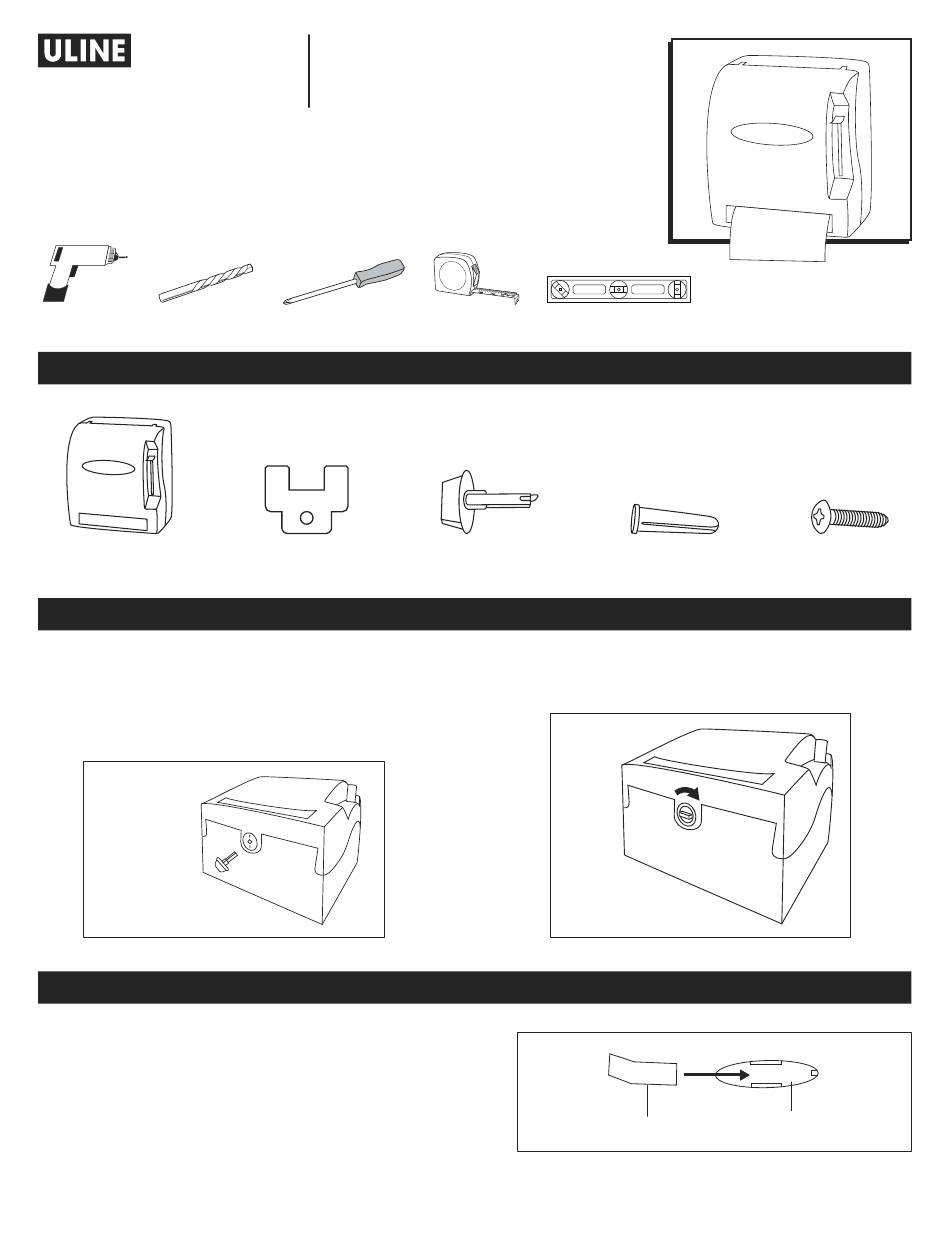

H-1131
ROLL PAPER TOWEL
DISPENSER
TOOLS NEEDED
Electric Drill
1/4" Drill Bit
Dispenser x 1
1.
Remove snap-in key from the hardware packet.
2. Align snap-in key with lock on the bottom of the
dispenser and push in all the way until it snaps into
place. (See Figure 1).
Figure 1
1. Open cover to expose inside of decorator strip
window.
2. Slide decorator strip into place, making sure the
decorator strip is held by the plastic guides.
(See Figure 3)
3. Close cover firmly and lock.
PAGE 1 OF 9
1-800-295-5510
uline.com
Phillips Screwdriver
Metal Key x 1
OPTIONAL SNAP-IN KEY INSTRUCTIONS
DECORATOR STRIP INSTALLATION INSTRUCTIONS
Tape Measure
Level
PARTS
Plastic Snap-In
Key x 1
3. Rotate snap-in key clockwise to open the dispenser.
(See Figure 2)
Figure 2
Figure 3
Decorator Strip
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Wall Anchor x 5
Decorator Strip Window
Screw x 5
0721 IH-1131

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-1131 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-1131

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-1131 1-800-295-5510 uline.com ROLL PAPER TOWEL DISPENSER TOOLS NEEDED Electric Drill 1/4" Drill Bit Phillips Screwdriver Tape Measure Level PARTS Dispenser x 1 Metal Key x 1 Plastic Snap-In...
  • Page 2: Mounting Instructions

    MOUNTING INSTRUCTIONS NOTE: Recommended mounting height is 45" Figure 4 from the floor to bottom of dispenser. NOTE: Ensure that proper mounting hardware is used for appropriate wall composition as enclosed hardware may not be compatible with your wall surface. Insert the key all the way into the lock opening on the bottom of dispenser and rotate clockwise until the cover pops open.
  • Page 3: Loading Instructions

    LOADING INSTRUCTIONS 1. Open dispenser cover completely. 3. Drape the paper over the black rubber roller and (See Figure 5) close the cover firmly until it locks. (See Figure 9) 2. Push a roll of product into the holders and release Figure 9 when the core becomes engaged.
  • Page 4 H-1131 800-295-5510 uline.mx DESPACHADOR DE TOALLAS DE PAPEL EN ROLLO HERRAMIENTAS NECESARIAS Taladro Broca Desarmador Cinta Nivel de Cruz de Medir PARTES 1 Despachador 1 Llave Metálica 1 Llave a Presión de Plástico 5 Taquetes 5 Tornillos INSTRUCCIONES PARA LA LLAVE A PRESIÓN OPCIONAL Retire la llave a presión del paquete de tornillería.
  • Page 5: Instrucciones De Instalación

    INSTRUCCIONES DE INSTALACIÓN NOTA: La altura de instalación recomendada Diagrama 4 es de 1.14 m (45") desde el suelo hasta la parte inferior del despachador. NOTA: Asegúrese de utilizar tornillería de instalación adecuada para la composición de pared apropiada dado que la tornillería que se incluye podría no ser compatible con la superficie de su pared.
  • Page 6: Instrucciones De Carga

    INSTRUCCIONES DE CARGA 1. Abra por completo la cubierta del despachador. 3. Coloque el papel sobre el rodillo de goma negra (Vea Diagrama 5) y cierre la cubierta con firmeza hasta que quede asegurada. (Vea Diagrama 9) 2. Inserte un rollo de producto en los soportes y suelte cuando el centro se active.
  • Page 7 H-1131 1-800-295-5510 uline.ca DISTRIBUTEUR POUR ROULEAU DE SERVIETTES EN PAPIER OUTILS REQUIS Perceuse Mèche de Tournevis Ruban à Niveau à perceuse de 1/4 po cruciforme mesurer bulles PIÈCES Distributeur x 1 Clé en métal x 1 Clé à enclenchement Dispositif d'ancrage x 5...
  • Page 8: Instructions De Montage

    INSTRUCTIONS DE MONTAGE REMARQUE : La hauteur de montage Figure 4 recommandée est de 1,1 m (45 po) du plancher au bas du distributeur. REMARQUE : Veillez à utiliser un matériel d'installation adéquat adapté à votre mur. Le matériel d'installation fourni pourrait ne pas être compatible avec la surface de votre mur. Insérez la clé...
  • Page 9 INSTRUCTIONS DE CHARGEMENT 1. Ouvrez complètement le couvercle du distributeur. 3. Tendez le papier par-dessus le rouleau en (Voir Figure 5) caoutchouc noir et fermez le couvercle solidement jusqu'à ce qu'il s'enclenche en position. 2. En poussant, placez un rouleau dans les supports (Voir Figure 9) puis relâchez dès que le rouleau central est engagé.
