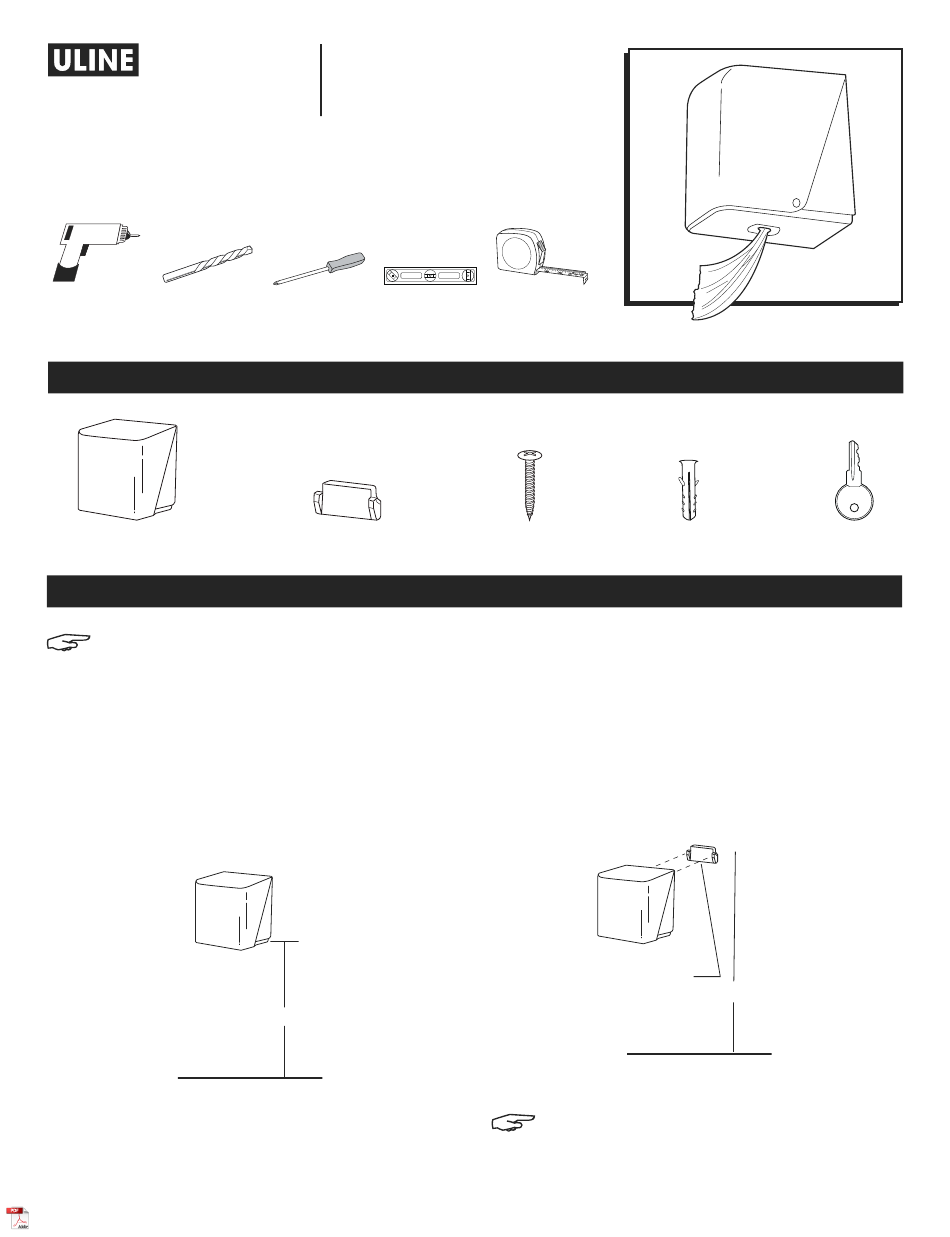

H-1132
CENTER PULL TOWEL
DISPENSER
TOOLS NEEDED
Drill
Drill Bit
Dispenser x 1
NOTE: For both permanent and temporary
mounting, ensure that proper mounting
hardware is used for appropriate wall
composition. Enclosed hardware may not be
compatible with your wall surface.
PERMANENT MOUNTING
1. Place opened dispenser in intended mounting
position and mark location of three screw holes.
Recommended mounting height is 56" from floor to
bottom of dispenser. (See Figure 1)
Figure 1
2. Install top two screws halfway into wall.
Position dispenser on screws.
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips Screwdriver
Level
PARTS
Mounting Bracket x 1
MOUNTING INSTRUCTIONS
56"
Pour le français, consulter les pages 5-6.
Tape Measure
Screw x 3
Wall Anchor x 3
3. Install bottom screw through hole in dispenser
and tighten.
4. Finish tightening top two screws.
TEMPORARY OR PORTABLE MOUNTING
1. Place mounting bracket in position and mark
location of two screw holes. Recommended
mounting height is 65.5" from floor to top of bracket.
(See Figure 2)
Figure 2
Mounting Bracket
2. Screw bracket to wall and mount dispenser.
NOTE: Temporary mounting may be made
permanent by installing third (bottom) screw
through hole in dispenser back.
Para Español, vea páginas 3-4.
Key x 1
65.5"
0721 IH-1132
