H-1585, H-1950
TOUCH FREE
DISPENSER
NOTE: Do not install in locations where dispenser
may be exposed to wet environments, such as
showers or areas where walls are washed down.

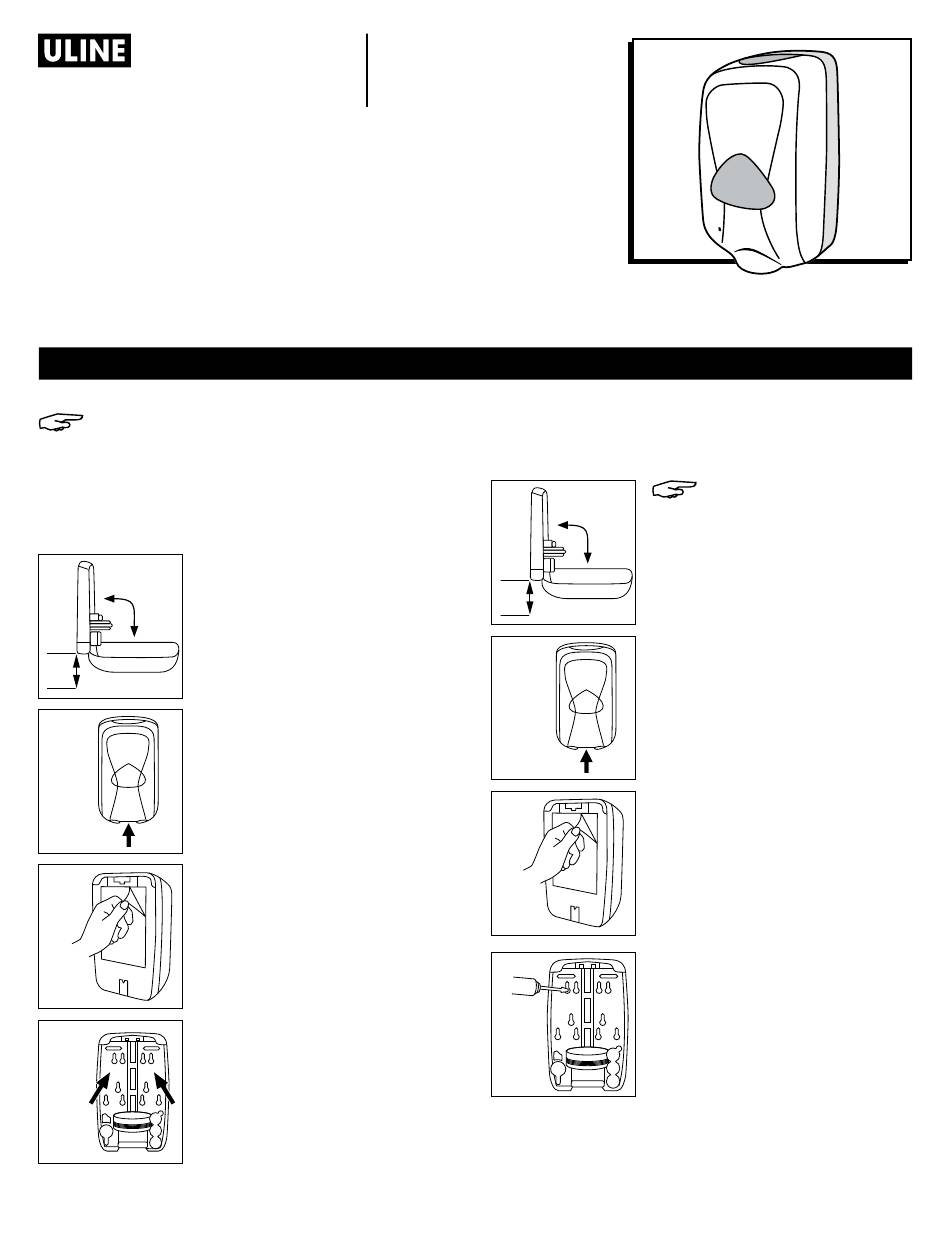

TAPE INSTALLATION
Use only on smooth, dry surfaces
1. Install dispenser at least 6"
Figure 1
above counter top. (See Figure 1)
2. Clean installation surface with
supplied prep pad. Allow
surface to dry for 60 seconds.
6 in.
3. Open dispenser by pushing
release on bottom of dispenser.
(See Figure 2)
Figure 2
4. Peel paper off of installation
tape located on back of
dispenser. (See Figure 3)
Figure 3
5. Press dispenser firmly onto
mounting surface by applying
pressure to the inside of
backplate for 15 seconds. Do
no load refill for at least 24
hours. (See Figure 4)
Figure 4
PAGE 1 OF 9
1-800-295-5510
uline.com
INSTALLATION
FASTENER INSTALLATION
Use on rough or smooth surfaces
6 in.
Figure 6
Figure 7
Figure 8
Para Español, vea páginas 4-6
Pour le français, consulter les pages 7-9
NOTE: Hardware is not
Figure 5
included.
1. Install dispenser at least 6"
above counter top. (See Figure 5)
2. Open dispenser by pushing
release on bottom of dispenser.
(See Figure 6)
3. Using backplate as template,
mark and drill 4 center holes
using 1/4" spiral masonry drill or
1/4" wood drill. If required, pierce
installation tape at installation
holes. Make sure tape backing
remains in place.
4. Install #10 x 1" anchors into the
4 drilled holes. Insert Type A
#10 x 1" screws into installation
holes in backplate and through
installation tape.
5. Peel paper off of installation
tape, line up screws with
anchors, and press firmly into
position. (See Figure 7)
6. Tighten screws securely, being
careful not to overtighten.
(See Figure 8)
0821 IH-1585
