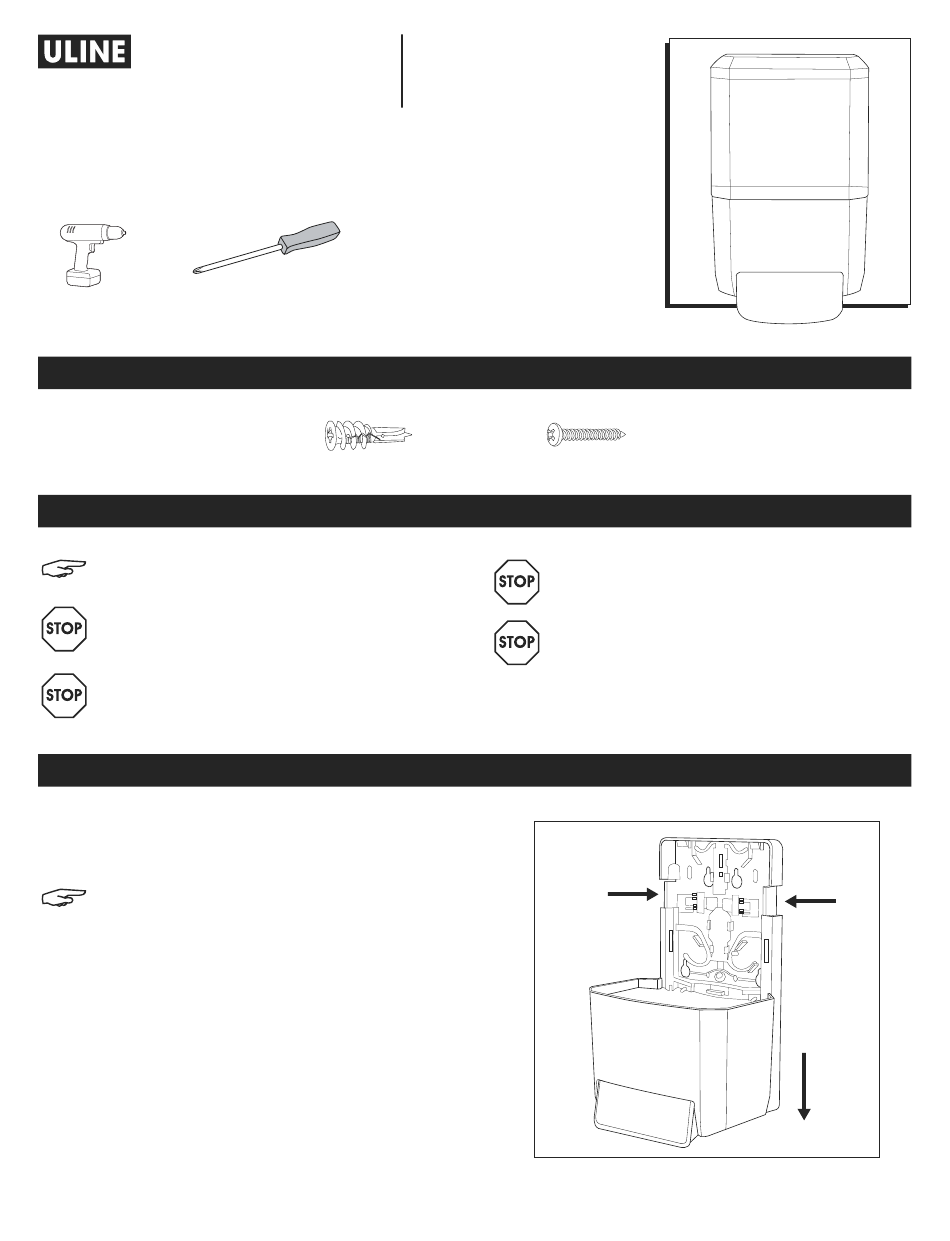

H-10644, H-10966
PURELL
ES4 PUSH
®
DISPENSER
TOOLS NEEDED
Drill
Phillips Screwdriver
NOTE: Please read all instructions carefully
before installing and using the dispenser.
WARNING! Use dispenser only as directed.
WARNING! Do not use in areas where dispenser
may be exposed to wet environments such as
showers or outdoors.
1. Open dispenser by pressing release buttons on
side of dispenser and slide front cover down.
(See Figure 1)
NOTE: Install dispenser with at least 7" of free
space above counter top to allow for routine
service.
PAGE 1 OF 9
1-800-295-5510
uline.com
PARTS
Wall Anchor x 4
SAFETY
INSTALLATION
Pour le français, consulter les pages 7-9.
#10 x 1" Screw x 4
WARNING! Do not install or use in extreme hot
or cold locations.
WARNING! Dispensed product intended for
external use only. Refer to refill for actions in
case of ingestion.
Figure 1
Para Español, vea páginas 4-6.
0723 IH-10644
