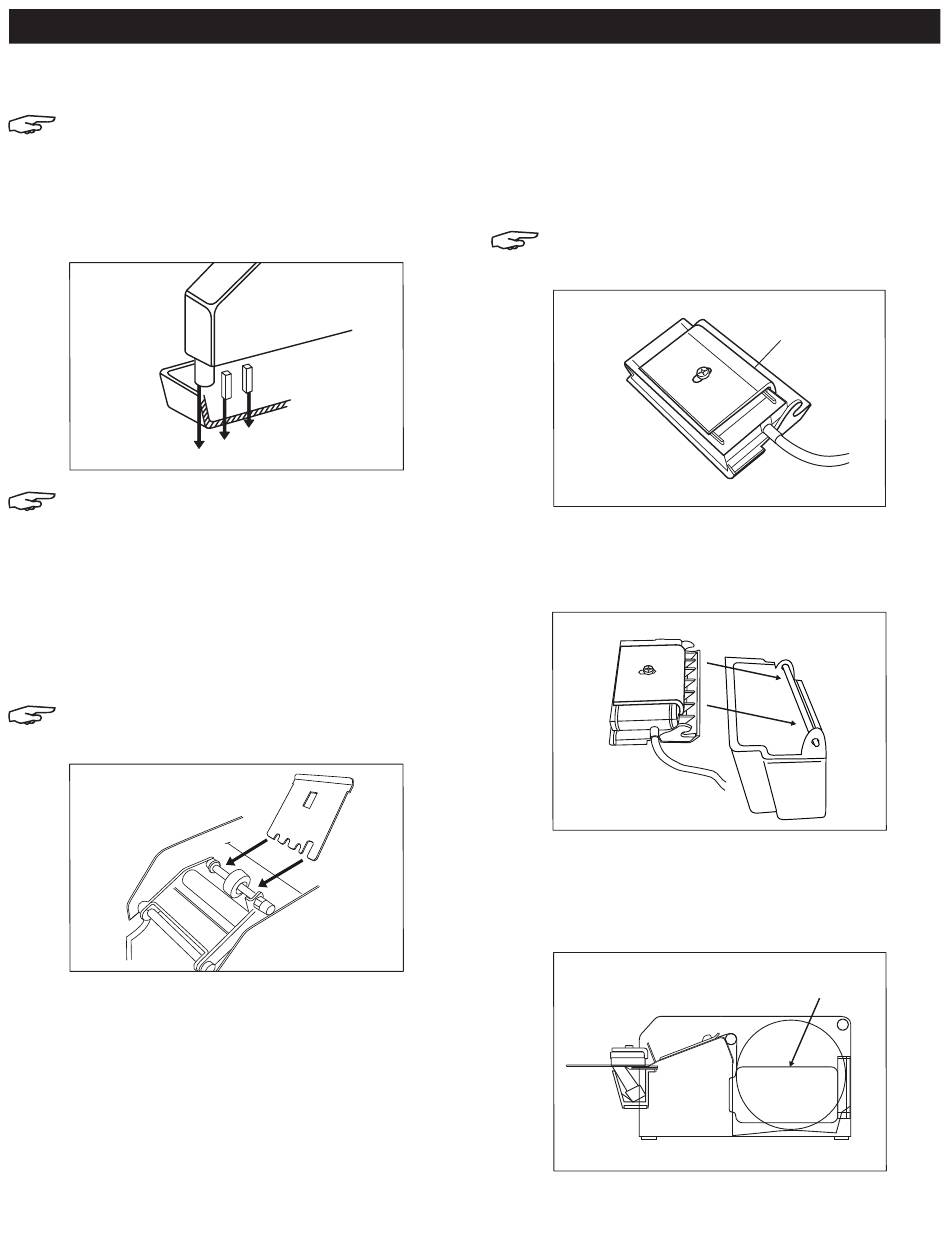

U-Line H-1036 Manual page 3

FILL WATER BOTTLE CONTINUED
NOTE: If bottle is not empty, cover the filler
opening to prevent spills.
2. Fill bottle with clean water. Cover the filler opening
to prevent spilling, turn bottle over and place filler
opening over desired water level peg in the water
reservoir. (See Figure 5)
Figure 5
MAX
NOTE: Adjust reservoir level: To maintain the
optimum moisture level for the type of tape
you are using, place the water bottle filler
opening over one of the three water level pegs
in the water reservoir.
INSTALL UPPER PLATE GUIDE
With top cover open, slide the upper paper guide under
the white wheel.
NOTE: Flange should face up and toward tape
compartment. (See Figure 6)
Figure 6
PAGE 3 OF 18
SETUP INSTRUCTIONS CONTINUED
.
MIN
.
MED
.
INSTALL TOP HEATER
1. For lighter paper tapes (60/70 grade), remove the
weight on the top heater. For heavier paper tapes
(70+ grade), adjust screw and reposition the weight
so the bent part fits over the front of the top heater.
(See Figure 7)
NOTE: Paper jams often result from the weight
not being removed.
Figure 7
2. Take the top heater/weight assembly and slide the
notches over the pivot shaft on the water reservoir.
(See Figure 8)
Figure 8
LOAD TAPE ROLL
1. Adjust roll guide plates to fit tape width.
(See Figure 9)
Figure 9
Weight
Guide Plates
0316 IH-1036
