Huawei AR100 Series Hardware Installation And Maintenance Manual page 183

Huawei
AR100&AR120&AR150&AR160&AR200&AR1200&AR
1600&AR2200&AR3200&AR3600 series Enterprise
Routers
Hardware Installation and Maintenance Guide

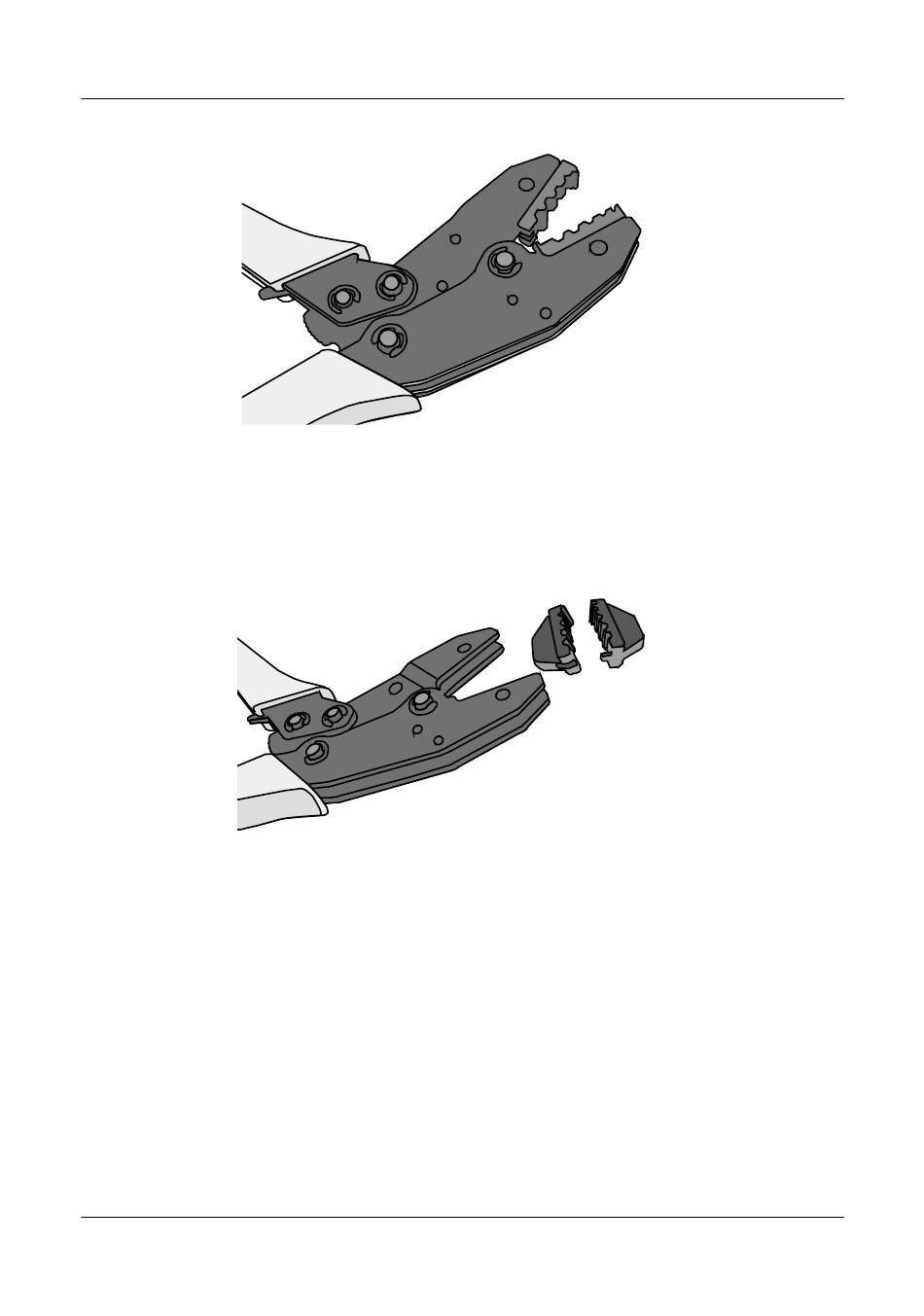

Figure 9-73 Pliers jaw opening automatically
Step 3 Remove the mold from the COAX crimping tools, as shown in
Figure 9-74 Removing the mold from the COAX crimping tools
Step 4 Place the mold to be installed into the jaw of the COAX crimping tools and align the screw
holes, as shown in
Issue 05 (2018-07-30)
Figure 9-75.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9 Appendix
Figure 9-74.
177
