7. Other Functions

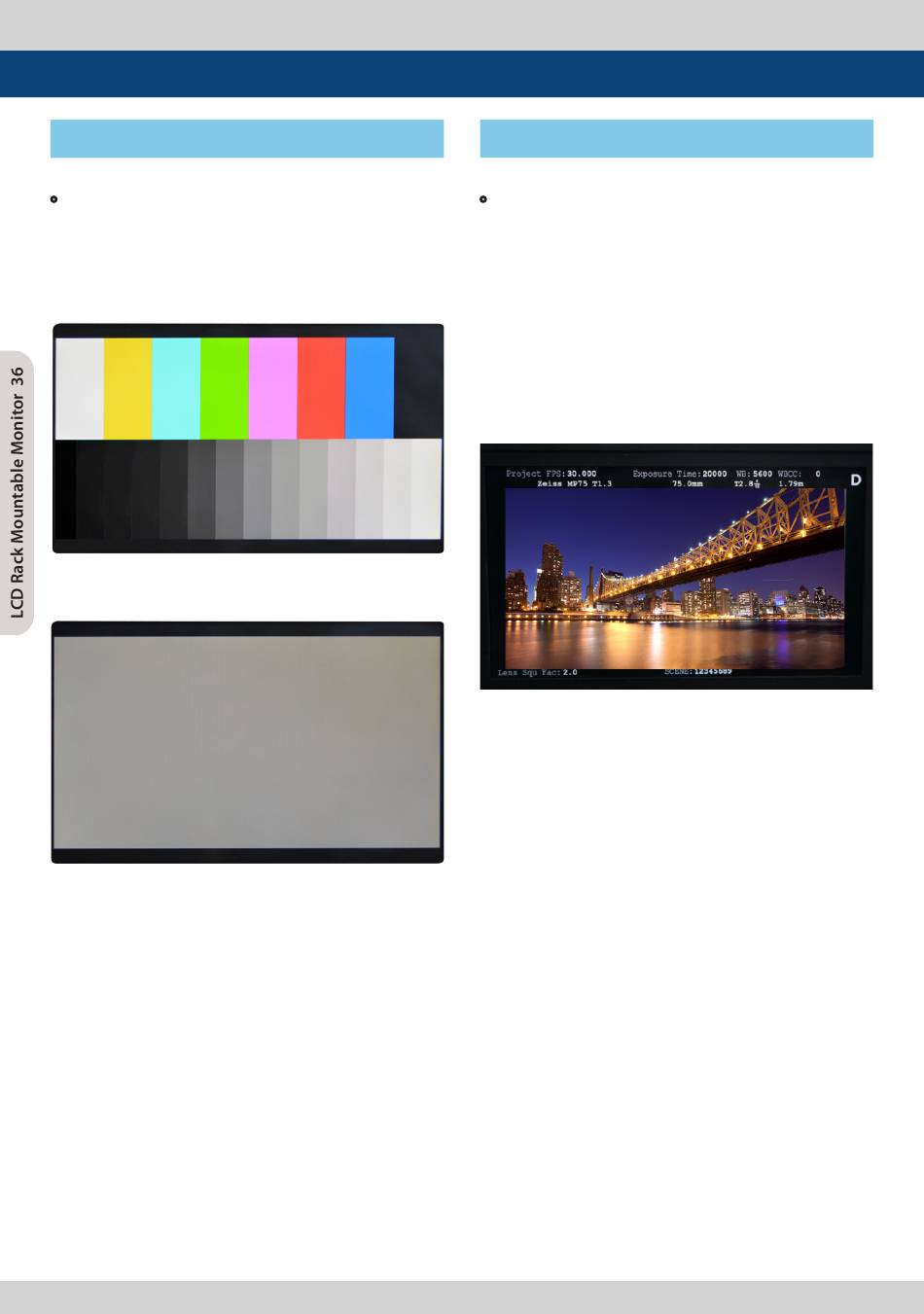

[9] Internal Pattern
•
Displays internally generated test patterns.
- The pattern consists of ColorBar and Pluge+
Grayscale Patterns. Full screen colors of various
gray levels(0~100%) are also embedded.
<Color Bar + Pluge Pattern>
<Gray Pattern>
[10] Arro Cam Status
• Used to display the camera status
information provided by ARRI ALEXA
camera on the OSD.
- Displays the information in the order: [Project
FPS]-[Exposure Time]-[White Balance]-[White
Balance CC]-[Camera Index Letter] / [Lens
Name]-[Focal Length]-[Iris]-[Focus Distance] /
[Lens Squeeze Factor]-[Scene]
- When the Arri Cam Status is activated, the
screen will be scaled to 1742 x 980.
