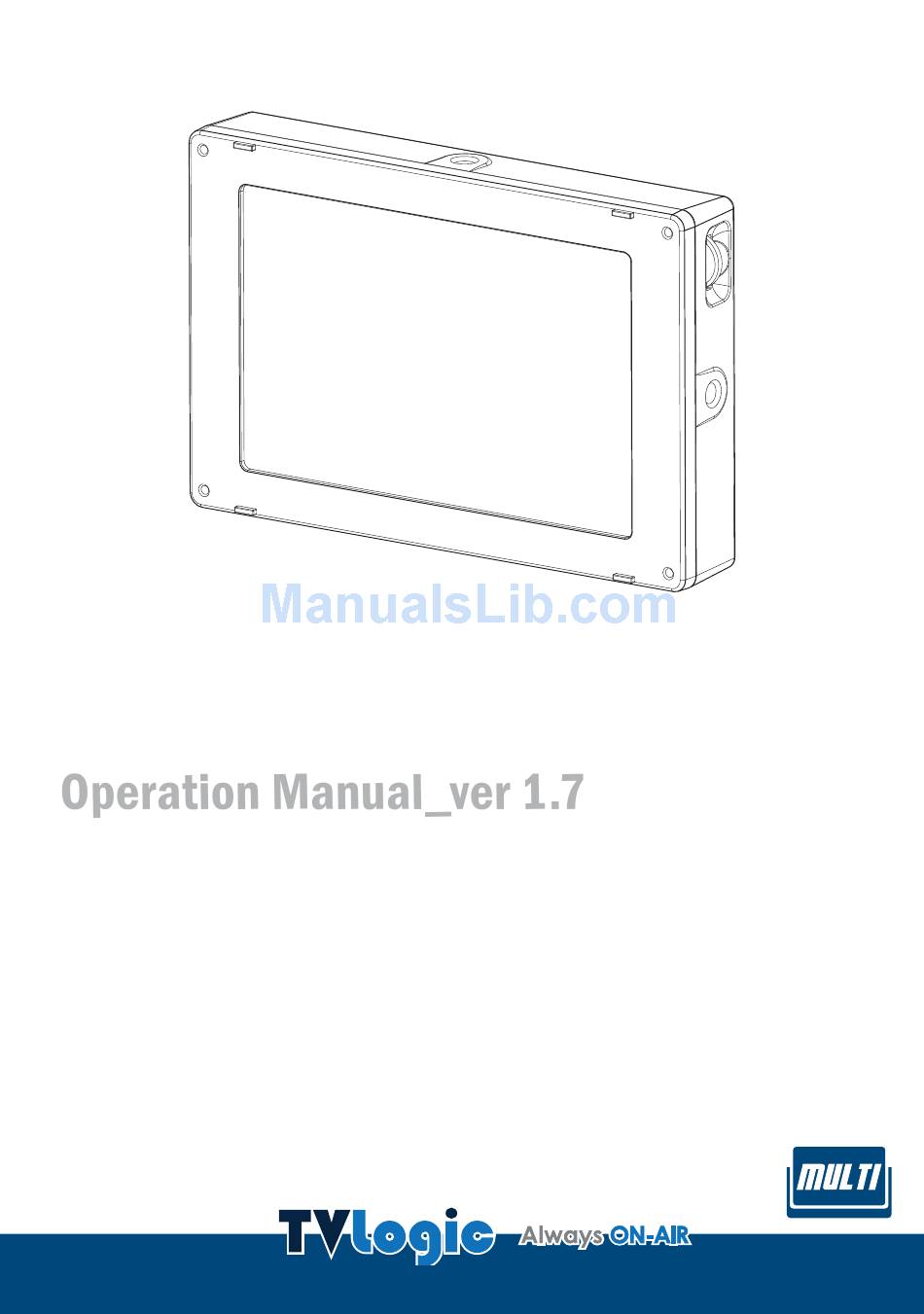

  • Page 1 Viewfinder Monitor VFM-056W VFM-056WP...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Components 3. Main Features 4. Controls & Functions 5. Menu Tree & Adjustment 6. Menu Operations [1] Picture [2] Color [3] Marker [4] Display / Video [5] Waveform [6] Audio [7] System 7. Button Functions 8. Other Functions 10.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 6~12V) If any of the following conditions occurs, unplug the power cord from the DC outlet, and request All operating instructions must be read and a qualified service person to perform repairs. understood before the product is operated. a.
  • Page 5 1. Caution When mounting the product on a wall or ceiling, Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Components

    2. Components VFM-056W/VFM-056WP Camera Mount DC Power Adapter BNC Connector (Angle Type) AC Power Cord * Optional Accessories : Please note the optional accessories on page 31...

  • Page 7: Main Features

    3. Main Features VFM-056W/VFM-056WP Monitor contains the following features: Compatible with various SDI signals Knob Control - Easy to adjust user configuration using the formats (SD/HD/3G) control knob on the side of the monitor. - This product is compatible with various SDI...

  • Page 8: Controls & Functions

    4. Controls & Functions FRONT/SIDE/REAR/TOP KNOB AUDIO OUT FUNCTION/ FUNCTION SELECT POWER SWITCH BATTERY/TALLY MENU EXIT SOURCE SDI IN DC POWER JACK SDI OUT HDMI IN Pb/S-C CVBS/Y/S-Y...
  • Page 9 PGM (Mini HDMI) SDI-OUT (BNC) - This terminal is used to upgrade the firmware - SD/HD-SDI Signal Output which is input or color calibration made by TVLogic. through [SDI-IN] terminal. - Used to convert the HDMI Signal and output through HD-SDI terminal.

  • Page 10: Menu Tree & Adjustment

    2. Move to a desired menu by scrolling the Knob. This Picture is the menu structure for 3. Press the Knob to select a menu and move to VFM-056W/VFM-056WP. select a sub-menu by scrolling the Knob. 4. Press the Knob to select the desired sub menu.

  • Page 11: Menu Operations

    6. Menu Operations [1] Picture [2] Color Brightness Color Temp. - Used to set the brightness(=offset) level from - Controls color temperature and allows instant -100 to 100. access to preset color temperature settings. # Press the Knob to adjust Brightness quickly. - Available color temperatures are 3200K, 5000K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 12: Marker

    6. Menu Operations [3] Marker Marker Enable Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the MARKER area from OFF(transparent) to 7(Black). - The bigger the value, the darker the color. Marker Type - Used to select the marker type.

  • Page 13: Display/Video

    6. Menu Operations [4] Display/Video Scan User Aspect Horizontal/User Aspect Vertical - Used to change the Scan mode. Scroll up and - Activated only when [SCAN] mode is set to down the Knob and the mode will be changed [User Aspect] . as the following sequence.
  • Page 14 6. Menu Operations [4] Display/Video Zoom Focus Assist - Used to magnify the image up to 90% on a Focus Assist helps the shooters to easily find pixel basis and is displayed on full screen. out the exact area in the picture with good * (e.g.,10% Zoom : If the input signal’s resolution focus, simply by adding colors on the shape is 1920 x 1080, only 90% (1728(H) x 976(V)) of...

  • Page 15: Waveform

    6. Menu Operations [4] Display/Video [5] Waveform / Level Check (VFM-056WP Only) TimeCode Waveform/Vector - Used to set the time code among OFF, VITC and LTC. - Used to select among [Off], [Waveform Y], [Waveform Cb], [WaveForm Cr], [Vectorscope]. - Waveform or Vectorscope is displayed on the Image Mirror (Hor.) bottom right of the screen.
  • Page 16 6. Menu Operations [5] Waveform / Level Check (VFM-056WP Only) Waveform Size Luma(Y’) Zone Check - Adjust the size of the Waveform or Vectorscope. - Displays the Luma(Y’) level of the input image - May select among [Small], [Large] and [Full]. in colors.
  • Page 17 6. Menu Operations [5] Waveform / Level Check (VFM-056WP Only) C Min Range Error (VFM-056WP Only) - Used to set the minimum chroma(C’) level from - Used to set whether or not to activate Y MAX, 0 to 255. Y MIN, C MAX, C MIN, Y PICTURE BLINK and C - Pixels with values exceeding the min C’...

  • Page 18: Audio

    6. Menu Operations [6] Audio Audio Volume Level Meter Reference - Used to control the output volume for the - Display the default audio level meter value, internal speakers or [AUDIO OUT] on the back Available options are -18dB and -20dB. of the monitor.

  • Page 19: System

    6. Menu Operations [6] System System Default Lock Enable - Used to initialize OSD values to factory default. - Input enable code to upgrade from Standard model to Premium model. Back Light Firmware Version - Used to indicate the backlight level. - Displays current firmware version.

  • Page 20: Button Functions

    7. Button Functions [1] Video Input [2] Function Key Set Button VFM-056W / VFM-056WP supports various input signals. 1. Press the [ MENU<EXIT>/ SOURCE] button on the back of the monitor for more than 2 seconds and OSD menu is activated as follows.

  • Page 21: Other Functions

    8. Other Functions [1] Pixel to Pixel * VFM-056W / VFM-056WP monitors provide pixel count info using Pixel to Pixel mode. * Select [Scan] mode in the OSD menu by pressing the [ FUNC. FUNC. SEL.] button to activate the[Pixel To Pixel] mode.
  • Page 22 Adjust the ratio using the Knob. resolution into 2.35:1 aspect ratio, adjust the width and height as 1280 x 544. Control range for width VFM-056W : Min[100] ~ Max[1280] Control range for height VFM-056W : Min[100] ~ Max[800] The size-adjusted picture always stay in the...
  • Page 23 8. Other Functions [3] Waveform / Vectorscope (VFM-056WP Only) Waveform Y VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 24 8. Other Functions [4] Line Select (Waveform/VectorScope) [5] Zoom VFM-056WP Only Used to magnify the input signal from 0% to 90%. Used to select specific Vertical Line for WaveForm/VectorScope. Supports Zoom Width Scroll / Zoom Height Scroll function. It is available when LINE WaveForm is activated. Zooms IN/OUT focused on the scrolled area.
  • Page 25 8. Other Functions [6] Luma(Y’) Zone Check (VFM-056WP Only) Color Pattern Type Zebra Pattern Type Displays the pixels with designated Luma(Y’) Displays the Luma(Y’) level of the input image levels with zebra pattern. in colors. Y’ ≥ 100%: Pixels with Y’ level over 100% turn to Y’...
  • Page 26 8. Other Functions [7] Focus Assist [8] Range Error (VFM-056WP Only) Pixels with Y’ or C’ levels exceeding the Focus Assist function assigns a color to the designated levels of Y MAX, Y MIN, C MAX and C pixels in the shape or boundary area of the MIN shall blink.
  • Page 27 8. Other Functions [9] DSLR Scale This function is designed for some DSLR cameras(Canon 5D, 550D and Nikon D7000) that output different resolution from the operation mode (preview, recording, playback). Select the Camera model in the [Display/Vide]- [DSLR Camera Sel.] menu. CANON In StandBy mode of Canon 5D Mark II, 1080i of HD resolution is indicated.
  • Page 28 8. Other Functions [10] HDMI To SDI Conversion-Out (VFM-056WP Only) Video source from ‘HDMI input’ terminal can be Activate the HDMI TO SDI Conversion-out output through ‘SDI throughout’ terminal. function and press the [Enter] button. HDMI Input Signal formats are 59.94 i/p, 60 i/p Then “Turn off/on POWER”...
  • Page 29 8. Other Functions [11] Screen TALLY [12] Internal Pattern Screen TALLY On/Off Displays internally generated test patterns. Used to set Tally operation according to The pattern consists of ColorBar and Pluge+ the input level of TALLY IN terminal which is Grayscale Patterns.
  • Page 30 9. Product Specifications VFM-056W / VFM-056WP Size 5.6” Resolution 1280 X 800 (16:10) Pixel Pitch 0.0945(H) X 0.0945(W) mm Color Depth 16.7M (6bit + Dithering) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 300 cd/ m...

  • Page 31: Optional Accessories

    10. Optional Accessories Carrying Case Sun-Hood External Acrylic Filter V-Mount Tripod Camera Mount Hot shoe Ball Head Support Battery Bracket Battery Bracket-2EA Battery Bracket * battery Brackets - BB-056S (SONY : NF-F770/970) - BB-056U (SONY : BP-U30/U60) - BB-056C (CANON : BP930/945/970G ) - BB-056E (CANON : 5D/7D)-2EA - BB-056P (PANASONIC : D28S/54S) - BB-056B (PANASONIC : AF-100)-2EA...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
