Viewfinder Monitor
VFM-056W-N
VFM-056WP-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFM-056W-N and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic VFM-056W-N

Summary of Contents for TVLogic VFM-056W-N

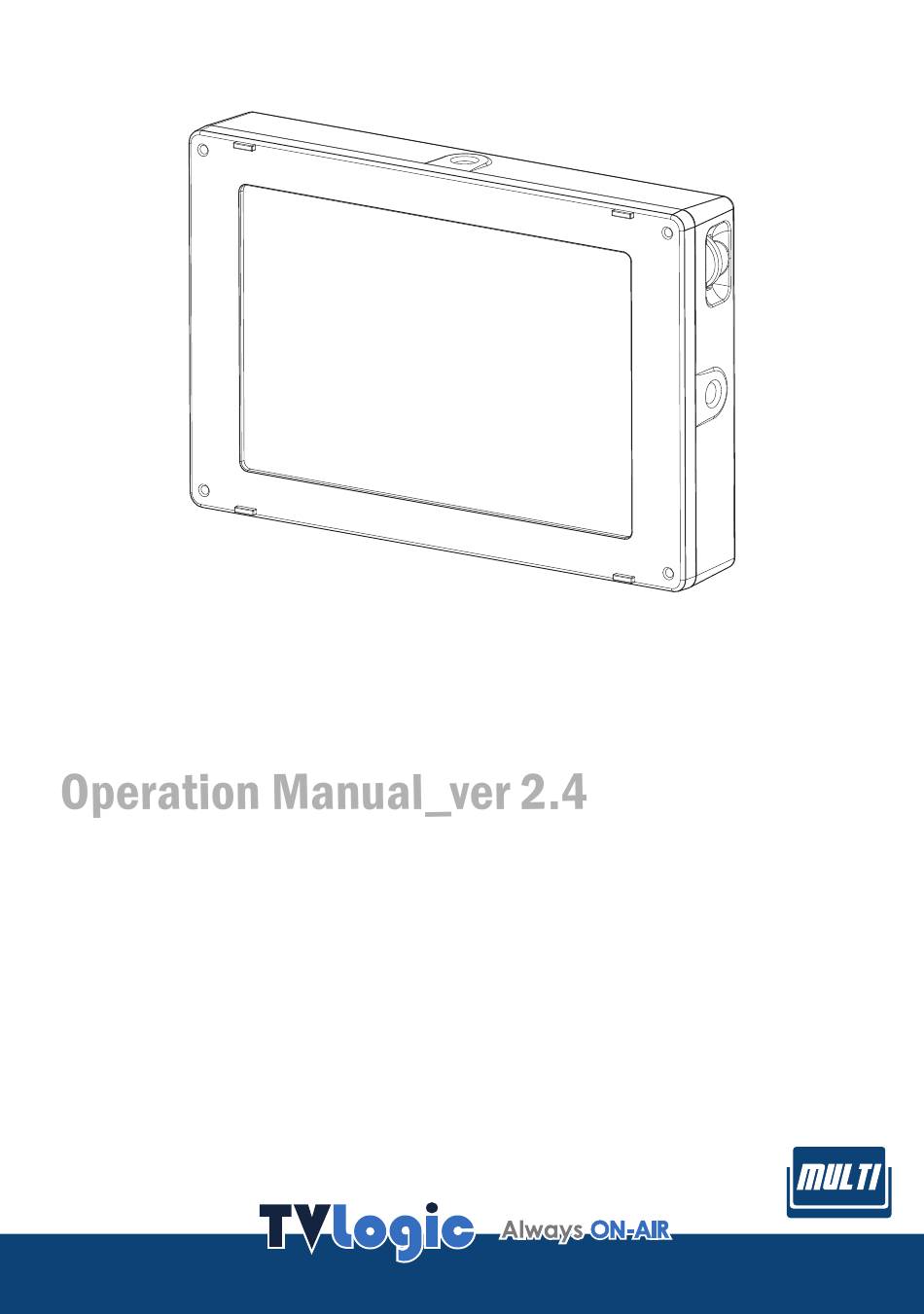

  • Page 1 Viewfinder Monitor VFM-056W-N VFM-056WP-N...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Components 3. Main Features 4. Controls & Functions 5. Menu Tree & Adjustment 6. Menu Operations [1] Picture [2] Color [3] Marker [4] Display / Video [5] Waveform [6] Audio [7] System 7. Button Functions 8. Other Functions 9.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 6~12V) • • If any of the following conditions occurs, unplug When using a DC Adapter other than the the power cord from the DC outlet, and request • a qualified service person to perform repairs. one supplied by the manufacturer, please a.
  • Page 5 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Components

    2. Components VFM-056W-N/VFM-056WP-N Camera Mount DC Power Adapter BNC Connector (Angle Type) AC Power Cord * Optional Accessories : Please note the optional accessories on page 31...

  • Page 7: Main Features

    3. Main Features VFM-056W-N/VFM-056WP-N Monitor contains the following features: • Compatible with various SDI signals • Knob Control - Easy to adjust user configuration using the formats (SD/HD/3G) control knob on the side of the monitor. - This product is compatible with various SDI signals - SD/HD/3G(A/B)-SDI •...

  • Page 8: Controls & Functions

    4. Controls & Functions FRONT/SIDE/REAR/TOP KNOB AUDIO OUT FUNCTION/ FUNCTION SELECT POWER SWITCH BATTERY/TALLY MENU EXIT SOURCE SDI IN DC POWER JACK SDI OUT HDMI IN Pb/S-C CVBS/Y/S-Y...
  • Page 9 - Used to convert the HDMI Signal and output - This terminal is used to upgrade the firmware through HD-SDI terminal. or color calibration made by TVLogic. • HDMI IN (HDMI) • AUDIO OUT (Phone Jack) - Select HDMI Signal which is input through - Used for Stereo Audio Output through Phone [HDMI] terminal.

  • Page 10: Menu Tree & Adjustment

    2. Move to a desired menu by scrolling the Knob. • This Picture is the menu structure for 3. Press the Knob to select a menu and move to VFM-056W-N/VFM-056WP-N. select a sub-menu by scrolling the Knob. 4. Press the Knob to select the desired sub menu.

  • Page 11: Menu Operations

    6. Menu Operations [1] Picture [2] Color • Brightness • Color Temp. - Used to set the brightness(=offset) level from - Controls color temperature and allows instant -100 to 100. access to preset color temperature settings. # Press the Knob to adjust Brightness quickly. - Available color temperatures are 3200K, 5000K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 12: Marker

    6. Menu Operations [3] Marker • Marker Enable • Marker Mat - Used to activate the Marker function. - Used to set the darkeness level outside of the MARKER area from OFF(transparent) to 7(Black). - The bigger the value, the darker the color. •...

  • Page 13: Display/Video

    6. Menu Operations [4] Display/Video • User Aspect Horizontal/User Aspect Vertical - Activated only when [SCAN] mode is set to [User Aspect] . - User can adjust the Horizontal and Vertical size of the screen. - See section “8. Other Functions [2] User Aspect”...
  • Page 14 6. Menu Operations [4] Display/Video • Focus Assist Focus Assist helps the shooters to easily find out the exact area in the picture with good focus, simply by adding colors on the shape or boundaries of the object in the picture. Activates in order of [(Mono) On][(Color] On] [Off] * (Color) On : Only the boudary of the area...

  • Page 15: Waveform

    6. Menu Operations [4] Display/Video [5] Waveform / Level Check (VFM-056WP-N Only) • TimeCode • Waveform/Vector - Used to set the time code among OFF, VITC and LTC. - Used to select among [Off], [Waveform Y], [Waveform Cb], [WaveForm Cr], [Vectorscope]. - Waveform or Vectorscope is displayed on the •...
  • Page 16 6. Menu Operations [5] Waveform / Level Check (VFM-056WP-N Only) • Luma(Y’) Zone Check - Displays the Luma(Y’) level of the input image in colors. - May select between [Color Pattern] or [Zebra Pattern]. - Each pixel’s Y’ analized and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
  • Page 17 6. Menu Operations [5] Waveform / Level Check (VFM-056WP-N Only) C Min • - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the min C’ level will blink in the screen, and displayed as red on the Wavefo rm.

  • Page 18: Audio

    6. Menu Operations [6] Audio • Level Meter Reference - Display the default audio level meter value, Available options are -18dB and -20dB. - Audio level meter within selected value turns to green and exceeded audio level is displayed in yellow. - Audio level exceeding -4dB is displayed in red.

  • Page 19: System

    6. Menu Operations [6] System • Lock Enable - Input enable code to upgrade from Standard model to Premium model. • Firmware Version - Displays current firmware version. • Serial Number - Displays the serial number of the monitor. • System Default - Used to initialize OSD values to factory default.

  • Page 20: Button Functions

    7. Button Functions [1] Video Input [2] Function Key Set Button • VFM-056W-N / VFM-056WP-N supports various input signals. 1. Press the [ MENU<EXIT>/ SOURCE] ● ● ■ ■ ■ ■ ■ button on the back of the monitor for more than 2 seconds and OSD menu is activated as follows.

  • Page 21: Other Functions

    DOWN <MID BOTTOM> <LEFT BOTTOM> <LEFT MID> • Positions in HD Signal 1080i/1080p mode * VFM-056W-N / VFM-056WP-N monitors provide pixel count info using Pixel to Pixel mode. DOWN DOWN * Select [Scan] mode in the OSD menu by <CENTER>...
  • Page 22 Adjust the ratio using the Knob. resolution into 2.35:1 aspect ratio, adjust the width and height as 1280 x 544. • Control range for width VFM-056W-N : Min[100] ~ Max[1280] • Control range for height VFM-056W-N : Min[100] ~ Max[800] •...
  • Page 23 8. Other Functions [3] Waveform / Vectorscope (VFM-056WP-N Only) • Waveform Y • VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 24 8. Other Functions [4] Line Select (Waveform/VectorScope) [5] Zoom VFM-056WP-N Only • Used to magnify the input signal from 0% to • 90%. • Used to select specific Vertical Line for • WaveForm/VectorScope. Supports Zoom Width Scroll / Zoom Height Scroll function.
  • Page 25 8. Other Functions [6] Luma(Y’) Zone Check (VFM-056WP-N Only) Color Pattern Type Zebra Pattern Type • Displays the pixels with designated Luma(Y’) • Displays the Luma(Y’) level of the input image levels with zebra pattern. in colors. • Y’ ≥ 100%: Pixels with Y’ level over 100% turn to •...
  • Page 26 8. Other Functions [7] Focus Assist [8] Range Error (VFM-056WP-N Only) • • Pixels with Y’ or C’ levels exceeding the Focus Assist function assigns a color to the designated levels of Y MAX, Y MIN, C MAX and C pixels in the shape or boundary area of the MIN shall blink.
  • Page 27 8. Other Functions [9] DSLR Scale • This function is designed for some DSLR NIKON (D7000) cameras(Canon 5D, 550D, Nikon D7000 and • In StandBy/Record mode of NIKON, actual SONY A77) resolution of the output signal from HDMI that output different resolution from terminal is 952x634, failing to display 16:9 the operation mode (preview, recording, aspect ratio and making marginal blank area.
  • Page 28 8. Other Functions [10] HDMI To SDI Conversion-Out (VFM-056WP-N Only) • Video source from ‘HDMI input’ terminal can be • Activate the HDMI TO SDI Conversion-out output through ‘SDI throughout’ terminal. function and press the [Enter] button. • • HDMI Input Signal formats are 59.94 i/p, 60 i/p Then “Turn off/on POWER”...
  • Page 29 8. Other Functions [11] Screen TALLY [12] Internal Pattern • Screen TALLY On/Off • Displays internally generated test patterns. Used to set Tally operation according to • The pattern consists of ColorBar and Pluge+ the input level of TALLY IN terminal which is Grayscale Patterns.

  • Page 30: Product Specifications

    9. Product Specifications VFM-056W-N / VFM-056WP-N Size 5.6” Resolution 1280 X 800 (16:10) Pixel Pitch 0.0945(H) X 0.0945(W) mm Color Depth 16.7M (6bit + Dithering) Viewing Angle H : 170 degrees / V : 170 degrees Luminance of white 300 cd/ m...

  • Page 31: Optional Accessories

    10. Optional Accessories Carrying Case Sun-Hood External Acrylic Filter V-Mount Tripod Camera Mount Hot shoe Ball Head Support Battery Bracket-2EA Battery Bracket Battery Bracket * battery Brackets - BB-056S (SONY : NF-F770/970) - BB-056U (SONY : BP-U30/U60) - BB-056C (CANON : BP930/945/970G ) - BB-056E (CANON : 5D/7D)-2EA - BB-056P (PANASONIC : D28S/54S) - BB-056B (PANASONIC : AF-100)-2EA...
  • Page 32 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
