TVLogic VFM-055A Operation Manual

Fhd multi format viewfinder monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

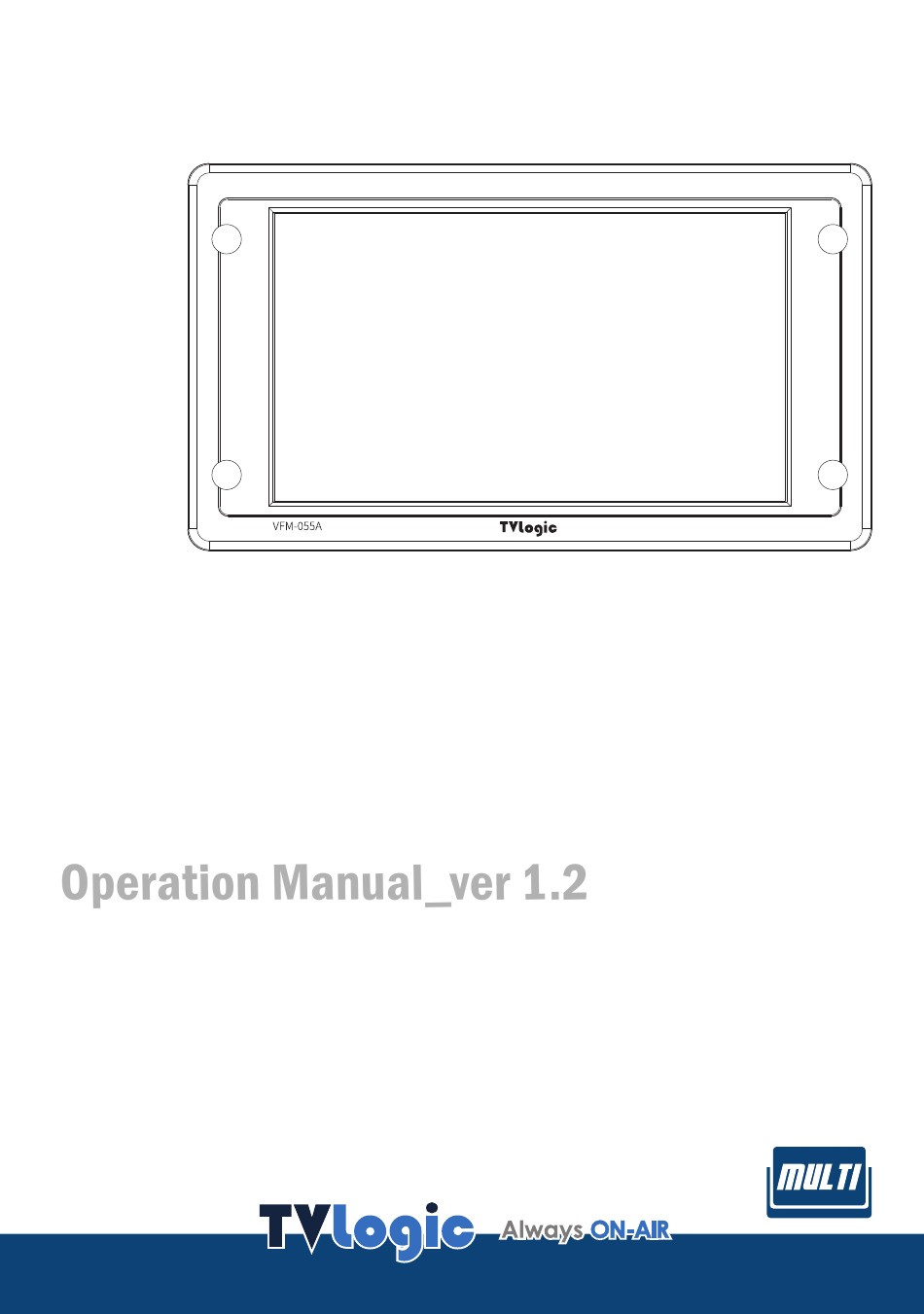

5.5" FHD Multi Format
Viewfinder Monitor
VFM-055A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFM-055A and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic VFM-055A

Summary of Contents for TVLogic VFM-055A

  • Page 1 5.5” FHD Multi Format Viewfinder Monitor VFM-055A...

  • Page 3: Table Of Contents

    Contents ..................1. Caution ................2. Main Features ..............3. Controls & Functions ............... 4. Menu Tree & Adjustment ................5. Menu Operations ..................[1] Picture ..................[2] Color ..................[3] Marker ..................[4] Video ................[5] Waveform ..................[6] Audio ..................

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 6.8~12V) • • Never insert an object into the product through vents or openings. High voltage in the When using a DC Adapter other than the product, and inserting an object can cause •...
  • Page 5 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Main Features

    2. Main Features VFM-055A Monitor contains the following features : • Compatible with various SDI signals • Knob Control formats (SD/HD/3G) - Easy to adjust user configuration using the control knob on the top of the monitor. - This product is compatible with various SDI signals - 480i, 576i, 720p, 1080i, 1080p, 1080psf •...

  • Page 7: Controls & Functions

    3. Controls & Functions FRONT/SIDE/REAR/TOP MENU<EXIT> SOURCE KNOB FUNCTION/ FUNCTION SELECT PHONEJACK HDMI OUT HDMI IN POWER BUTTON REAR TALLY BATTERY IN SDI OUT SDI IN DC POWER /TALLY...
  • Page 8 - This terminal is used to upgrade the firmware - When the OSD menu is activated, press this or color calibration made by TVLogic. button to exit from the menu. - Press the button for more than 2 seconds to •...
  • Page 9 3. Controls & Functions REAR REAR • [HDMI IN] • [REAR TALLY] - Signal input terminal for HDMI signal. - Activates same as [SCREEN TALLY]. • [HDMI OUT] • [DC POWER / TALLY] (XLR 4P) - Signal output terminal for HDMI signal. - Tally Signal In Level DC5V ±2V - Video source from SDI input terminal can be - Battery Power Input terminal for DC 12V...

  • Page 10: Menu Tree & Adjustment

    • This Picture is the menu structure for 1. Press MENU button to activate the OSD menu. VFM-055A. 2. Move to a desired menu using the Knob. 3. Press the Knob to select a menu and move to PICTURE 같이...

  • Page 11: Menu Operations

    5. Menu Operations [1] PICTURE • CAM LUT PICTURE PICTURE 같이 같이 VFM-055A VFM-055A - Used to change the Camera LUT. BRIGHT BRIGHT - Available LUTs are LOG-C, C-LOG, S-LOG 1,2,3 CONTRAST CONTRAST CHROMA CHROMA and REDGamma 3,4. APERTURE APERTURE...

  • Page 12: Picture

    5. Menu Operations [1] PICTURE [2] COLOR • 3DLUT SYNC COLOR같이 VFM-055A - Used to load a list of available 3DLUT files TEMP COLOR currently stored in the FLASH MEMORY. GAIN RED GAIN GREEN - Available 3DLUT formats are Cube, GV Lut, GAIN BLUE Quantel, Davinci and AssScratch.

  • Page 13: Marker

    5. Menu Operations [3] MARKER • FIT MARKER MARKER같이 VFM-055A - Used to activate or inactivate the Fit Marker ENABLE function. MARKER CENTER MARKER - When the Marker type is selected in the Marker SAFETY AREA menu, a border line of the Safety Area will be FIT MARKER displayed inside the Marker.Images below...
  • Page 14 5. Menu Operations [3] MARKER MARKER같이 VFM-055A ENABLE MARKER CENTER MARKER SAFETY AREA FIT MARKER MARKER MAT MARKER COLOR WHITE THICKNESS USER MARKER H1 USER MARKER H2 +1920 USER MARKER V1 USER MARKER V2 +1080 • USER MARKER H1 - Used to set the position of the first horizontal marker line.

  • Page 15: Video

    5. Menu Operations [4] VIDEO • USER ASPECT HORIZONTAL/USER ASPECT VIDEO이 VFM-055A VERTICAL SCAN ZERO SCAN - Activated only when the [SCAN] mode is set to ASPECT 16:9 H/V DELAY [User Aspect] . BLUE ONLY - User can adjust the Horizontal and Vertical size USER ASPECT HOR of the screen.
  • Page 16 5. Menu Operations [4] VIDEO • FOCUS ASSIST VIDEO이 VFM-055A - Focus Assist helps the shooters to easily find DSLR CANON 7D out the exact area in the picture with good DSLR SCALE LIVE VIEW TIMECODE focus, simply by adding colors on the shape FOCUS ASSIST or boundaries of the object in the picture.
  • Page 17 5. Menu Operations [4] VIDEO VIDEO이 VFM-055A DSLR CANON 7D DSLR SCALE LIVE VIEW TIMECODE FOCUS ASSIST FOCUS AS COLOR FOCUS AS LEVEL + 90 SCR TALLY SCR OP LEVEL SCR TALLY COL LOW BAT DIS • SCR TALLY - Used to set Tally operation according to...

  • Page 18: Waveform

    5. Menu Operations [5] WAVEFORM • SIZE WAVEFORM VFM-055A - Adjust the size of the Waveform or Vectorscope. ENABLE - Can select among [NORMAL] and [LARGE]. TYPE INTENSITY + 90 * See section “7. Other Function [2] Waveform/ TRANS OPAQUE Vectorscope”...
  • Page 19 5. Menu Operations [5] WAVEFORM • RANGE ERROR WAVEFORM VFM-055A - Used to set whether or not to activate Y MAX, ENABLE Y MIN, C MAX, C MIN, Y PICTURE BLINK and C TYPE INTENSITY + 90 PICTURE BLINK functions.
  • Page 20 5. Menu Operations [5] WAVEFORM Y PICTURE BLINK • WAVEFORM VFM-055A - Used to set whether or not to blink pixels with ENABLE values exceeding Y MAX and Y MIN. TYPE INTENSITY + 90 TRANS OPAQUE C PICTURE BLINK •...

  • Page 21: Audio

    5. Menu Operations [6] AUDIO • LVM DISPLAY AUDIO VFM-055A - Used to set the display method for audio level VOLUME + 90 meter. AUD LEFT AUD RIGHT - Available modes are Group and Pair. LEVEL METER * In the HDMI mode, the mode is set to Pair.

  • Page 22: System

    5. Menu Operations [7] SYSTEM • DISPLAY ENABLE SYSTEM VFM-055A - Used to set the LUMINANCE to the DEFAULT + 48 minimum value when the time set in the still LUMINANCE INTERNAL PAT image output is exceeded. SW UPGRADE - When video is output or the MENU button is...

  • Page 23: Button Functions

    HDMI SCAN NO VIDEO ASPECT MARKER H/V DELAY BLUE ONLY • VFM-055A unit is capable of processing SDI /HDMI Input signal. ZOOM FREEZE 1. Press the[MENU<EXIT]button on the front of the monitor for more than 2 seconds and DSLR SCALE activate the OSD menu as shown on the below.

  • Page 24: Other Functions

    7. Other Functions [1] User Aspect • Used to adjust the Width /Height display USER ASPECT ratio. WIDTH +1920 1. Select [Aspect] mode in the OSD menu by HEIGHT +1080 pressing the function button on the right top of the monitor to activate the [USER ASPECT] mode.
  • Page 25 7. Other Functions [2] Waveform / Vectorscope • Waveform Y • VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 26 7. Other Functions [3] Line Select (Waveform/VectorScope) [4] Zoom • Used to select specific Vertical Line for • Used to magnify the input signal from 0% WaveForm/VectorScope. to 90%. - This is available when LINE WaveForm is - Supports Zoom Width Scroll / Zoom Height activated.
  • Page 27 7. Other Functions [5] Luma(Y’) Zone Check • Color Pattern Type • Zebra Pattern Type - Displays the pixels with designated Luma(Y’) - Displays the Luma(Y’) level of the input image levels with zebra pattern. in colors. - Y’ ≥ 100%: Pixels with Y’ level over 100% turn - Y’...
  • Page 28 7. Other Functions [6] Focus Assist [7] Range Error • Pixels with Y’ or C’ levels exceeding the • Focus Assist function assigns a color to the pixels in the shape or the boundary of the designated levels of Y MAX, Y MIN, C MAX and C MIN shall blink.
  • Page 29 7. Other Functions [8] DSLR Scale • This function is designed for some DSLR cameras of Canon(7D) that output different resolution from the operation mode (StandBy, Record, Play Back) • Select the Camera model in the [Display/ Vide]- [DSLR Camera Sel.] menu. •...
  • Page 30 7. Other Functions [10] SDI To HDMI Conversion-Out [9] HDMI To SDI Conversion-Out • Video source from ‘HDMI input’ terminal 3G/HD/SD SDI signals from ‘SDI input’ ● can be output through ‘SDI throughout’ terminal can be output through ‘HDMI out’ terminal. terminal.
  • Page 31 7. Other Functions [11] Screen Tally/Rear Tally [12] Internal Pattern • Activates with the Rear Tally on the rear of • Displays internally generated test patterns. the monitor at the same time. - The pattern consists of ColorBar and Pluge+ Grayscale Patterns.
  • Page 32 7. Other Functions [13] Firmware Upgrade • The USB(Thumb drive) which contains the F/W file is needed for Firmware Upgrade. • Select the SW UPGRADE in the SYSTEM menu. 1. Connect the USB to the USB Slot on the front of the monitor. 2.

  • Page 33: Available Signal Formats

    8. Available Signal Formats This unit is applicable to the following signal formats : "Display Character Input Signal HDMI Example" 480 / 59.94i (NTSC) 720x480 60i ● ● 480 / 60p 720x480 60p ● 576 / 50i (PAL) 720x576 50i ●...

  • Page 34: Video Support Resolution

    9. Video Support Resolution VIDEO Support Resolution Input Signal Signal Foramt (SD SDI) Interfaces 720x487 SD SDI (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) Input Signal Signal Format (3G SDI) Interfaces 1920x1080 (60p/59.94p/50p) YCbCr 4:2:2 10bit 3G-SDI (A/B) single link 1920x1080 (30/29.97/25/24/23.98/ RGB 4:4:4 10bit / 12bit 30sF/29.97sF/25sF/24sF/23.98sF)

  • Page 35: Product Specifications

    10. Product Specifications VFM-055A Size 5.5” Resolution 1920×1080(16:9) Pixel Pitch 0.063(H) X 0.063(W) mm Color Depth 16.7M (True) Viewing Angle H : 160 degrees / V : 160 degrees Luminance of white 350 cd/ m (Center) Contrast Ratio 17000 : 1 Display Area 121.4(H)x68.3(V) mm...

  • Page 36: Optional Accessories

    11. Optional Accessories Carrying Case Sun-Hood D-Tap Cable Acrylic Filter Tripod Ball Head HDMI Bracket Battery Bracket-2EA Battery Bracket Battery Adapter Battery Adapter Battery Adapter BA055C BA055N BA055P...
  • Page 37 D-Tap-S cable (short - 17" length) D-Tap Adapter for VFM-056WP, 058W, 055A & LVM-074 / SRM-074W(-N) D-Tap-L cable (short - 29" length) OPT-AF-055A External Acrylic filter for VFM-055A HDMI BKT-055 HDMI Bracket for VFM-055A Hood-055 Sun Hood for VFM-055A CC-055...
  • Page 38 MEMO...
  • Page 40 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 18590, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
