TVLogic VFM-058W Operation Manual

5.5” fhd multi format viewfinder monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

5.5" FHD Multi Format
Viewfinder Monitor
VFM-058W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFM-058W and is the answer not in the manual?

Questions and answers

Related Manuals for TVLogic VFM-058W

Summary of Contents for TVLogic VFM-058W

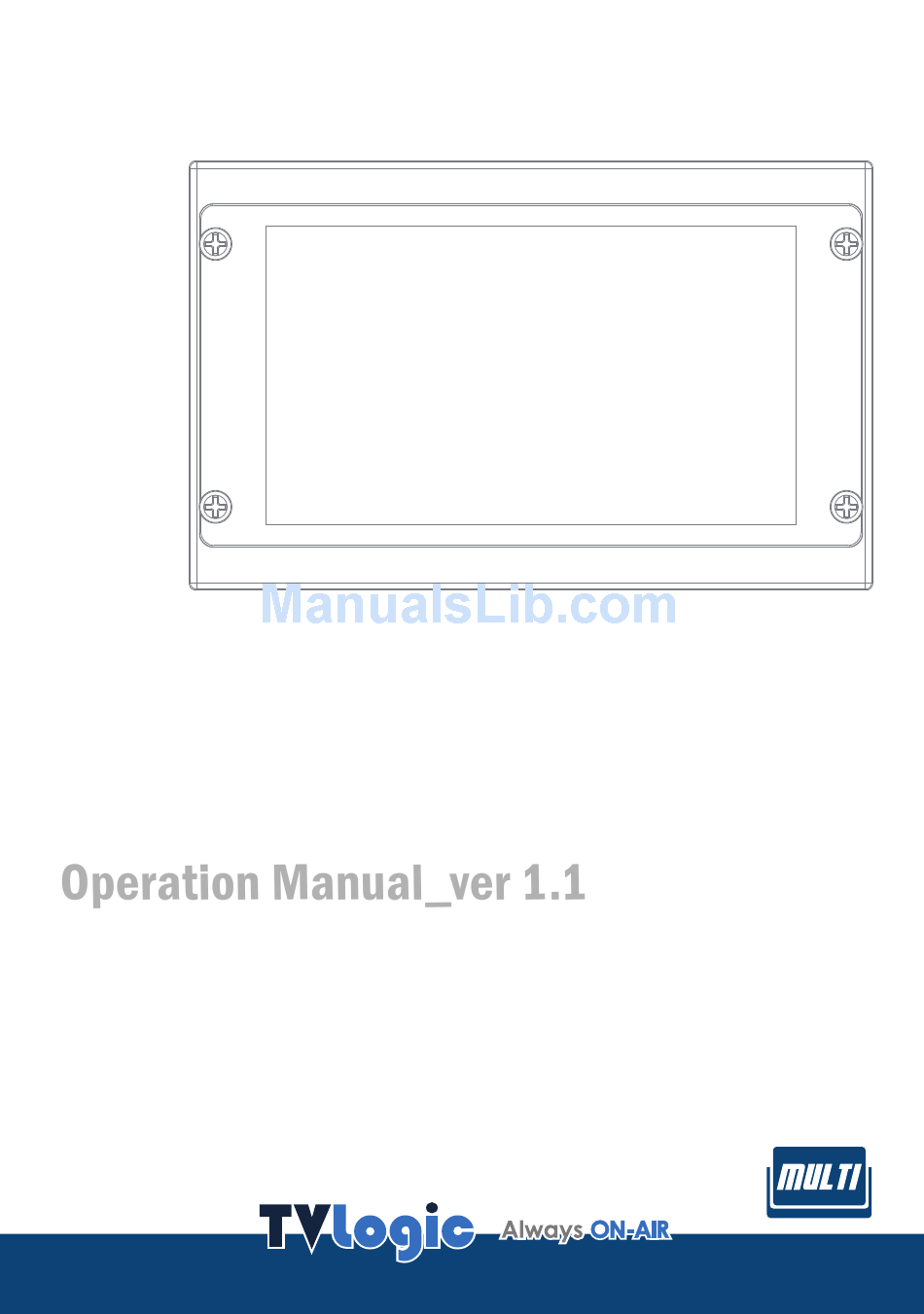

  • Page 1 5.5” FHD Multi Format Viewfinder Monitor VFM-058W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] Picture [2] Color [3] Marker [4] Display / Video [5] Waveform [6] Audio [7] System 6. Button Functions 7. Other Functions 8.

  • Page 4: Caution

    1. Caution Always use set voltage. (DC 6.8~12V) • • If any of the following conditions occurs, unplug When using a DC Adapter other than the the power cord from the DC outlet, and request • a qualified service person to perform repairs. one supplied by the manufacturer, please be advised that the adapter with DC 12V/3A a.
  • Page 5 1. Caution • When mounting the product on a wall or ceiling, • Sudden stops, excessive force and uneven be sure to install the product according to the floor surface can cause the product to fall from method recommended by the manufacturer. the cart.

  • Page 6: Main Features

    2. Main Features VFM-058W Monitor contains the following features: • Compatible with various SDI signals • Knob Control - Easy to adjust user configuration using the formats (SD/HD/3G) control knob on the top of the monitor. - This product is compatible with various SDI signals - 480i, 576i, 720p, 1035i, 1080i, •...

  • Page 7: Controls & Functions

    3. Controls & Functions FRONT/SIDE/REAR/TOP MENU<EXIT> FUNCTION/ SOURCE FUNCTION SELECT KNOB REAR TALLY HDMI OUT POWER S/W BATTERY IN DC POWER/ TALLY HDMI IN SDI IN SDI OUT HDEAPHONE...
  • Page 8 - Battery Power Input :DC 6.8~12V • [USB] - This terminal is used to upgrade the firmware • [SDI IN] (BNC) or color calibration made by TVLogic. - Signal input terminal for HD/SD/3G SDI signal. • [HDMI IN] • [SDI OUT] (BNC) - Signal input terminal for HDMI signal.

  • Page 9: Menu Tree & Adjustment

    • This Picture is the menu structure for 1. Press MENU button to activate the OSD menu. VFM-058W. 2. Move to a desired menu using the Knob. 3. Press the Knob to select a menu and move to select a sub-menu by scrolling the Knob.

  • Page 10: Menu Operations

    5. Menu Operations [1] Picture [2] Color • Brightness • Color Temp. - Used to set the brightness(=offset) level from - Controls color temperature and allows instant -100 to 100. access to preset color temperature settings. - Available color temperatures are 3200K, 5000K, 5600K, 6500K, 9300K and User 1/2/3.

  • Page 11: Marker

    5. Menu Operations [3] Marker • Marker Enable • Marker Mat - Used to activate the Marker function. - Used to set the darkness level outside of the - Available marker types are OFF, 16:9, 4:3, 4:3 MARKER area from OFF(transparent) to 7(Black). ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 &...

  • Page 12: Display/Video

    5. Menu Operations [4] Display/Video • User Aspect Horizontal/User Aspect Vertical - Activated only when the [SCAN] mode is set to [User Aspect] . - User can adjust the Horizontal and Vertical size of the screen. - See section “7. Other Functions [1] User Aspect”...
  • Page 13 5. Menu Operations [4] Display/Video • Focus Assist - Focus Assist helps the shooters to easily find out the exact area in the picture with good focus, simply by adding colors on the shape or boundaries of the object in the picture. - Activates in order of [Mono On]-[Color On]- [Off] * [Color On] : Only the boudary of the area...

  • Page 14: Waveform

    5. Menu Operations [4] Display/Video [5] Waveform • Screen TALLY On/Off • WaveForm/Vector Enable - Used to set Tally operation according to - Used to activate/ deactivate the Waveform the input level of TALLY IN terminal which is which is selected in the Waveform/Vector among the terminals of XLR 4P connector in Type menu.
  • Page 15 5. Menu Operations [5] Waveform • Luma(Y’) Zone Check - Displays the Luma(Y’) level of the input image in colors. - Can select between [Color Pattern] or [Zebra Pattern]. - Each pixel’s Y’ analized and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
  • Page 16 5. Menu Operations [5] Waveform C Min • - Used to set the minimum chroma(C’) level from 0 to 255. - Pixels with values exceeding the max Y’ level will blink on the screen, and be displayed in red on the Waveform. Y Picture Blink •...

  • Page 17: Audio

    5. Menu Operations [6] Audio • Level Meter Display (SDI Only) - Used to set the display method for audio level meter. - Available modes are Group and Pair. * In the HDMI mode, the mode is set to Pair. •...

  • Page 18: System

    5. Menu Operations [7] System • Firmware Version - Displays current firmware version. • Serial Number - Displays the serial number of the monitor. • System Default - Used to initialize OSD values to factory default. • Back Light - Used to indicate the backlight level. - In case of System Default, the value returns to factory default(after color calibration).

  • Page 19: Button Functions

    6. Button Functions [1] Input Button [2] Function Key Set Button • VFM-058W unit is capable of processing SDI /HDMI Input signal. 1. Press the[MENU<EXIT]button on the front of the monitor for more than 2 seconds and activate the OSD menu as shown on the below.

  • Page 20: Other Functions

    7. Other Functions [1] User Aspect • Used to adjust the Width /Height display ratio. 1. Select [Aspect] mode in the OSD menu by pressing the function button on the right top of the monitor to activate the [USER ASPECT] mode.
  • Page 21 7. Other Functions [2] Waveform / Vectorscope • Waveform Y • VectorScope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ signal into waveform. of the input signals onto the X-Y axis. - Two different types of Vetorscopes are displayed according to SD or HD input signals.
  • Page 22 7. Other Functions [3] Line Select (Waveform/VectorScope) [4] Zoom • Used to select specific Vertical Line for • Used to magnify the input signal from 0% WaveForm/VectorScope. to 90%. - This is available when LINE WaveForm is - Supports Zoom Width Scroll / Zoom Height activated.
  • Page 23 7. Other Functions [5] Luma(Y’) Zone Check • Color Pattern Type • Zebra Pattern Type - Displays the pixels with designated Luma(Y’) - Displays the Luma(Y’) level of the input image levels with zebra pattern. in colors. - Y’ ≥ 100%: Pixels with Y’ level over 100% turn - Y’...
  • Page 24 7. Other Functions [6] Focus Assist [7] Range Error • Focus Assist function assigns a color to the - Pixels with Y’ or C’ levels exceeding the designated levels of Y MAX, Y MIN, C MAX and pixels in the shape or the boundary of the C MIN shall blink.
  • Page 25 If the circle is compared in Live/Rec Full mode, the output of the circle is deformed. 2. Both VFM-058W connected DSLR and VFM-058W connectedHDMI to SDI Conversion should be compared to cirlce in Zeroscan mode.
  • Page 26 7. Other Functions [9] HDMI To SDI Conversion-Out • Video source from ‘HDMI input’ terminal can be output through ‘SDI throughout’ terminal. Note: HDSLR camera manufacturers usually specify the resolution and frame rate for the recording. The signal format that is output through HDMI terminal of cameras may differ from makers to makers.
  • Page 27 7. Other Functions [10] SDI To HDMI Conversion-Out • Video source from ‘SDI input’ terminal can be output through ‘HDMI out’ terminal. Output Format Input Format 480i(NTSC) ● 576i(PAL) ● 720P24 720P25 720P30 720P50 ● 720P59.94 ● 720P60 ● 1080i50 ●...
  • Page 28 7. Other Functions [11] Screen TALLY [12] Internal Pattern • Activates with the Rear Tally on the rear of • Displays internally generated test patterns. the monitor at the same time. - The pattern consists of ColorBar and Pluge+ Grayscale Patterns. Full screen colors of various •...
  • Page 29 * During the update, the monitor screen is off, and nothing functions. * After the update, TVLogic logo shows up on the screen, and the monitor initializes. * Update can take 10~20min. depending on firmware kind.

  • Page 30: Available Signal Formats

    8. Available Signal Formats This unit is applicable to the following signal formats : "Display Character Input Signal HDMI Example" 480 / 59.94i (NTSC) 720x480 60i ● ● 480 / 60p 720x480 60p ● 576 / 50i (PAL) 720x576 50i ●...

  • Page 31: Product Specifications

    9. Product Specifications VFM-058W Size 5.5” Resolution 1920 X 1080 (16:9) Pixel Pitch 0.063(H) X 0.063(W) mm Color Depth 16.7M (True), 24bit Viewing Angle H : 160 degrees / V : 160 degrees Luminance of white 450 cd/ m (Center)

  • Page 32: Optional Accessories

    10. Optional Accessories Carrying Case Sun-Hood HDMI Bracket D-Tap Cable V-Mount Tripod Acrylic Filter Ball Head Battery Bracket-2EA Battery Bracket Battery Bracket * battery Brackets - BB-058S (SONY : NF-F770/970) - BB-058U (SONY : BP-U30/U60) - BB-058C (CANON : BP930/945/970G ) - BB-058E (CANON : 5D/7D)-2EA - BB-058P (PANASONIC : D28S/54S) - BB-058B (PANASONIC : AF-100)-2EA...
  • Page 33 MEMO...
  • Page 34 MEMO...
  • Page 36 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA 부사장 TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr 조 성 일 153-802 서울특별시 금천구 가산동 345-4 에이스하이엔드 8차 12층...
