3.
Board Components
This section covers the specifications of the SAMA5D2-ICP and provides a high-level description of the board's major
components and interfaces. This document is not intended to provide a detailed documentation about the processor
or about any other component used on the board. For detailed device documentation, refer to
3.1
Board Overview
The fully-featured SAMA5D2-ICP board integrates multiple peripherals and interface connectors as shown in the
figure below. J2, indicated in red below, offers current measurement connectivity. J19 and J20, indicated in blue, are
configuration items.

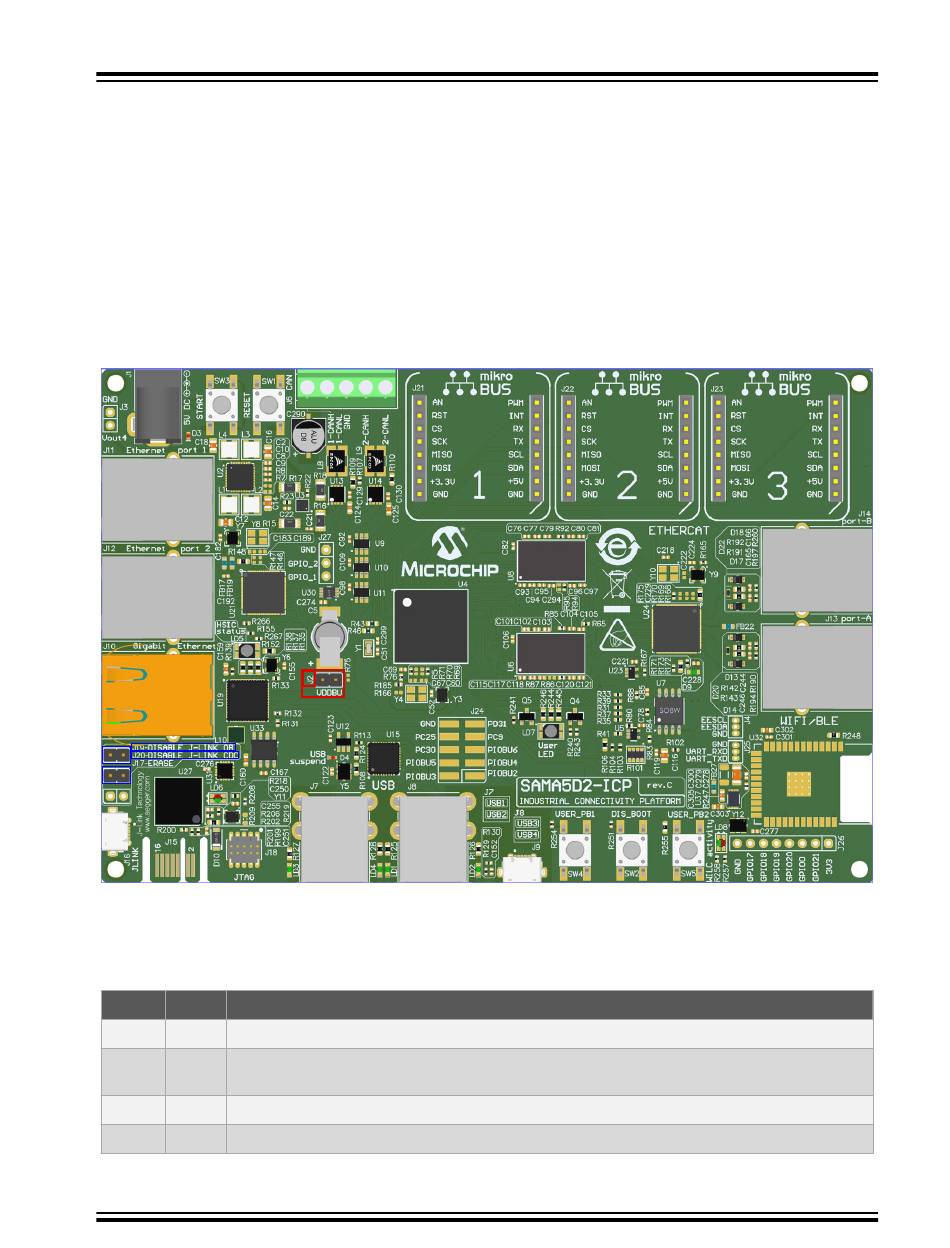

Figure 3-1. Board Overview
3.1.1
Default Jumper Settings
The following table shows the default jumper settings.
Table 3-1. SAMA5D2-ICP Jumper Settings
Jumper Default Function
J2
Closed VDDBU current measurement
J17
Open
J19
Open
J20
Open
©
2020 Microchip Technology Inc.
Erases SAM3U firmware (not populated, reserved for factory configuration, should never be
used by the end user).
Enables JTAG-OB (closed=disables JTAG-OB)
Enables JTAG-CDC (closed=disables JTAG-CDC)
User Guide
ATSAMA5D2-ICP
Board Components
Reference
Documents.
DS60001592A-page 6
