ATBTLC1000 Xplained Pro User Guide

Introduction

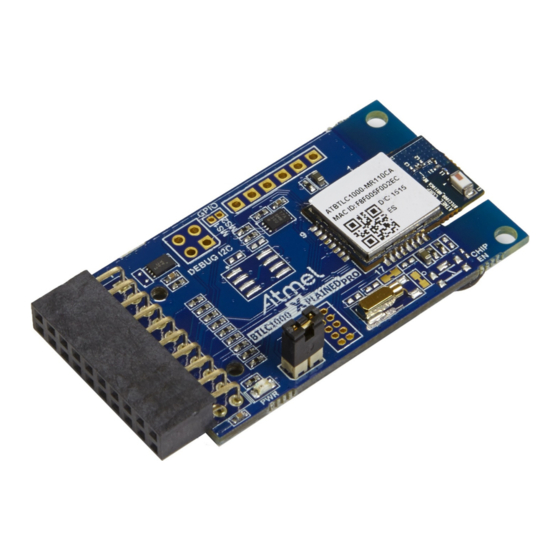

The ATBTLC1000 Xplained Pro is an extension board to evaluate the performance of the ultra-low power
®
Bluetooth
Low Energy 5.0 ATBTLC1000-MR110CA module. The ATBTLC1000 Xplained Pro board is
designed to provide BLE functionality to the Xplained Pro evaluation platform. This kit provides access to
the features of the ATBTLC1000-MR110CA module and explains how to integrate the module in a custom
design.

Features

• ATBTLC1000-MR110CA Bluetooth Module
– Compliant with Bluetooth V5.0 Core Specification, ETSI EN 300 328 and EN 300 440 Class 2,
FCC CFR47 Part 15, and ARIB STD-T66
®
®
– ARM
Cortex
-M0 32-bit processor
• AT30TSE758A Digital Temperature Sensor
– Integrated temperature sensor, non-volatile registers, and serial EEPROM
2
– Two wire I
C and SMBus compatible serial interface
• Xplained Pro Hardware Identification System using ATSHA204A
• Power LED
• Power Debugger Support using Current Measurement Header
• Provision for External Flash (Footprint Only). Recommended MPN: IS25LD020-JNLE.
2
• Debug I
C Header
• Debug UART/SPI Extension Port
• CHIP EN Switch for ATBTLC1000 Module (Footprint Only)
• SWD Header
• 32 kHz Crystal
©
2019 Microchip Technology Inc.
ATBTLC1000-XPRO
User Guide
DS50002847A-page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATBTLC1000 Xplained Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Microchip Technology ATBTLC1000 Xplained Pro

  • Page 1: Introduction

    ATBTLC1000-XPRO ATBTLC1000 Xplained Pro User Guide Introduction The ATBTLC1000 Xplained Pro is an extension board to evaluate the performance of the ultra-low power ® Bluetooth Low Energy 5.0 ATBTLC1000-MR110CA module. The ATBTLC1000 Xplained Pro board is designed to provide BLE functionality to the Xplained Pro evaluation platform. This kit provides access to the features of the ATBTLC1000-MR110CA module and explains how to integrate the module in a custom design.
  • Page 2: Table Of Contents

    8. Document Revision History..................19 The Microchip Web Site....................20 Customer Change Notification Service................20 Customer Support......................20 Microchip Devices Code Protection Feature..............20 Legal Notice........................21 Trademarks........................21 Quality Management System Certified by DNV.............22 User Guide DS50002847A-page 2 © 2019 Microchip Technology Inc.
  • Page 3 ATBTLC1000-XPRO Worldwide Sales and Service..................23 User Guide DS50002847A-page 3 © 2019 Microchip Technology Inc.
  • Page 4: Kit Overview

    ATBTLC1000-XPRO Kit Overview Kit Overview The ATBTLC1000 Xplained Pro is an extension board containing the ultra-low power Bluetooth module ATBTLC1000-MR110CA for the Xplained Pro platform. The kit can be connected to any extension header on an Xplained Pro MCU board.
  • Page 5: Getting Started

    Download and install Atmel Studio. Launch Atmel Studio. Connect the ATBTLC1000 Xplained Pro extension board with an Xplained Pro MCU board and connect a USB cable to the DEBUG USB port on the Xplained Pro MCU board. When the Xplained Pro MCU kit is connected to the computer for the first time, the operating system ®...
  • Page 6 ATBTLC1000-XPRO Getting Started • ATBTLC1000 BluSDK - Software, firmware, applications, and tools packages. Located in the software section of the page. User Guide DS50002847A-page 6 © 2019 Microchip Technology Inc.
  • Page 7: Xplained Pro

    The extension headers can be used to connect a variety of Xplained Pro extensions to Xplained Pro MCU boards or to access the pins of the target microcontroller on the Xplained Pro boards. User Guide DS50002847A-page 7 © 2019 Microchip Technology Inc.
  • Page 8 SPI master out slave in pin. Always connected, bus type. SPI_MISO SPI master in slave out pin. Always connected, bus type. SPI_SCK SPI clock pin. Always connected, bus type. Ground pin for extension boards. Power pin for extension boards. User Guide DS50002847A-page 8 © 2019 Microchip Technology Inc.
  • Page 9: Hardware Specifications

    Hardware Specifications Electrical Characteristics ATBTLC1000 Xplained Pro can be connected to several Xplained Pro MCU boards and manually connected to other hardware. Xplained Pro MCU board(s) that does not have 3.3V as its primary target voltage will read all ID devices on connected extensions to check if they support the target voltage before enabling it to the extension headers.
  • Page 10 C SCL Ground C SDA Not connected Table 4-4. Extension Port Pin on Extension Port Pin on ATBTLC1000 Module Function UART RX/ SPI SCK UART TX/SPI MOSI DBG_UART_RX/SPI SSN DBG_UART_TX/SPI MISO Ground Ground User Guide DS50002847A-page 10 © 2019 Microchip Technology Inc.
  • Page 11: Peripherals

    4.3.1 External Flash The ATBTLC1000 Xplained Pro provides a footprint for an external Flash (U103). The design is tested with an ISSI IS25LD020-JNLE 2 Mb Flash. By default, the Flash is connected to the SPI master/slave interface of the ATBTLC1000 module, which is also connected to the Xplained Pro extension header.
  • Page 12 The ATBTLC1000 has a 32.768kHz RTC oscillator that is used for BLE activities involving connection events. There is also a provision to reconfigure the ATBTLC1000 Xplained Pro board to bypass the external crystal oscillator with an external signal capable of driving 2pF on the RTC_CLK_P pin of the ATBTLC1000-MR110CA.
  • Page 13: Hardware Revision History And Known Issues

    Revision 2 is the initially released revision. The ATBTLC1000 Xplained Pro revision 2 is partially incompatible with SAM L21 Xplained Pro extension header EXT1; pin 10 (Chip Enable) is shared with the user button SW0 on the SAM L21 Xplained Pro. A...
  • Page 14 Master Enable for chip Not Connected Some ATBTLC1000 Xplained Pro kits are already modified according to the instructions above. These kits are marked with a round, green sticker in the upper right corner as shown in the following image. Figure 5-2. Modified ATBTLC1000 Xplained Pro Kits...
  • Page 15: Atbtlc1000Xpro-Adp Adapter Board

    ATBTLC1000XPRO-ADP Adapter Board Kit Overview The ATBTLC1000XPRO-ADP is an adapter board designed for the ATBTLC1000 Xplained Pro with the ATBTLC1000-MR110CA Bluetooth module. It is designed to allow direct connection of the ATBTLC1000 Xplained Pro with different Xplained Pro MCU boards for providing UART hardware flow control functionality.
  • Page 16 The male extension header is used to connect it to the ATBTLC1000 Xplained Pro. The jumpers on the pin headers have to be placed based on the Xplained Pro board used and the UART Flow Control mode of the ATBTLC1000 Xplained Pro (6-Wire mode or 4-Wire mode), as shown in the following table.
  • Page 17: Evaluation Kit Interface Details (Without Adapter Board)

    This section describes the hardware interface details required between the SAMG55/D21/L21/L22 Xplained Pro boards and the ATBTLC1000 Xplained Pro board for both the UART 4-wire and 6-wire configurations. The required connections can be made with loose wires as shown in the following figure.
  • Page 18 SAM L22 Xplained Pro User Guide • SAM L21 Xplained Pro User Guide • SAM D21 Xplained Pro User Guide • SAM G55 Xplained Pro User Guide • SAM 4S Xplained Pro User Guide User Guide DS50002847A-page 18 © 2019 Microchip Technology Inc.
  • Page 19: Document Revision History

    Comment 42538C 05/2016 Added ATBTLC1000XPRO-ADP Adapter Board chapter. 42538B 11/2015 Added revision 2 ERRATA. Added temperature sensor, and electrical characteristics chapter. Updated the external flash chapter. 42538A 09/2015 Initial document release. User Guide DS50002847A-page 19 © 2019 Microchip Technology Inc.
  • Page 20: The Microchip Web Site

    Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property. • Microchip is willing to work with the customer who is concerned about the integrity of their code. User Guide DS50002847A-page 20 © 2019 Microchip Technology Inc.
  • Page 21: Legal Notice

    SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.
  • Page 22: Quality Management System Certified By Dnv

    ATBTLC1000-XPRO © 2019, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved. ISBN: 978-1-5224-4187-8 Quality Management System Certified by DNV ISO/TS 16949 Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California ®...
  • Page 23 New York, NY Sweden - Stockholm Tel: 631-435-6000 Tel: 46-8-5090-4654 San Jose, CA UK - Wokingham Tel: 408-735-9110 Tel: 44-118-921-5800 Tel: 408-436-4270 Fax: 44-118-921-5820 Canada - Toronto Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS50002847A-page 23 © 2019 Microchip Technology Inc.
