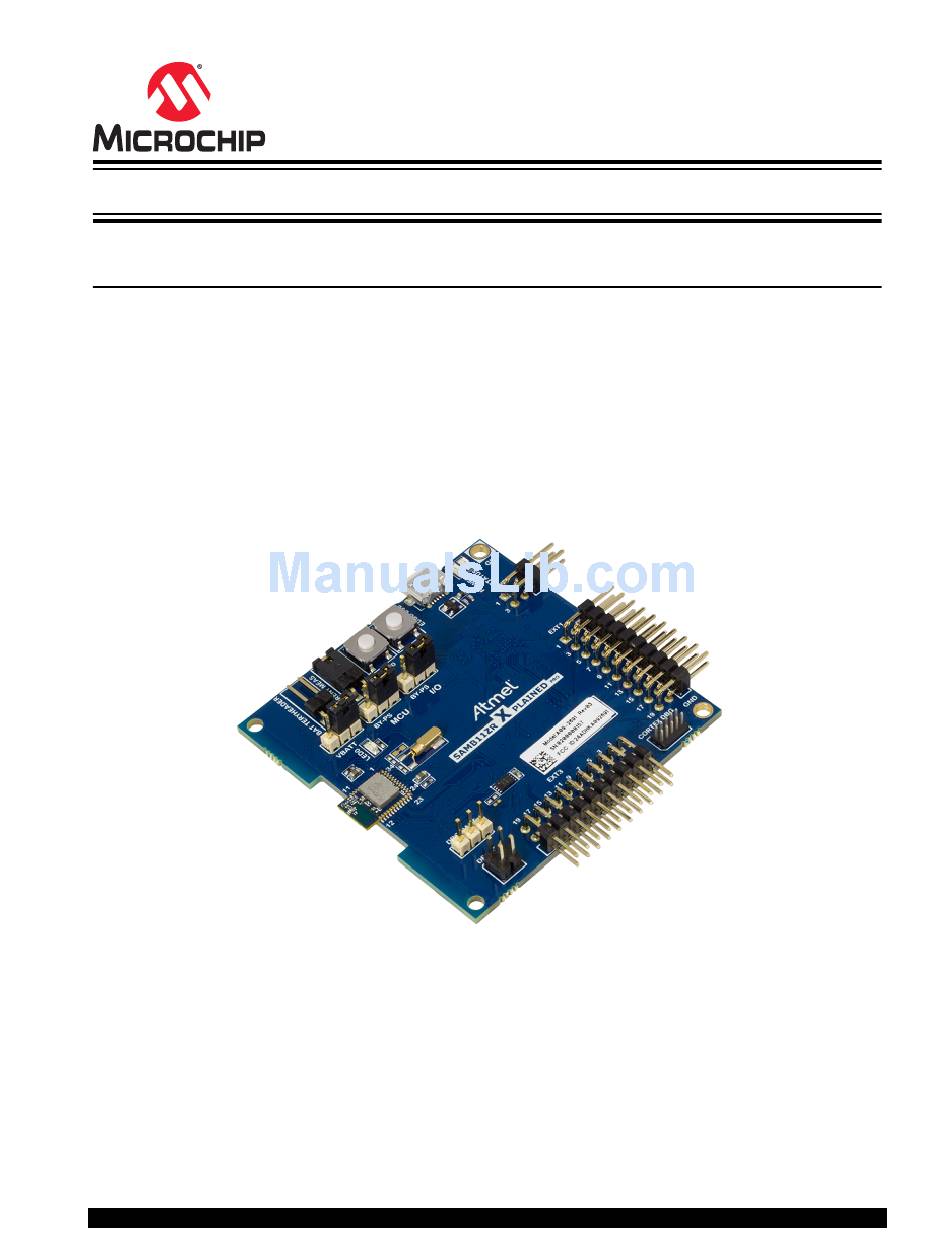

SAM B11ZR Xplained Pro User Guide
Description
Microchip's SAM B11ZR Xplained Pro evaluation kit is a hardware platform used to evaluate the
ATSAMB11ZR-210CA module.
Supported by the Atmel Studio integrated development platform, the kit provides easy access to the
features of the ATSAMB11ZR and explains how to integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger, and no external
tools are necessary to program or debug the ATSAMB11ZR.
The Xplained Pro extension kits offer additional peripherals to extend the features of the board and ease
the development of custom designs.
User Guide
DS70005334A-page 1
©
2017 Microchip Technology Inc.
Advertisement
Table of Contents
Related Manuals for Microchip Technology SAM B11ZR Xplained Pro
Summary of Contents for Microchip Technology SAM B11ZR Xplained Pro
-
Page 1: Description
ATSAMB11ZR SAM B11ZR Xplained Pro User Guide Description Microchip's SAM B11ZR Xplained Pro evaluation kit is a hardware platform used to evaluate the ATSAMB11ZR-210CA module. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATSAMB11ZR and explains how to integrate the device in a custom design. -
Page 2: Table Of Contents
Customer Change Notification Service................22 Customer Support......................22 Product Identification System..................23 Microchip Devices Code Protection Feature..............23 Legal Notice........................24 Trademarks........................24 Quality Management System Certified by DNV.............25 Worldwide Sales and Service..................26 User Guide DS70005334A-page 2 © 2017 Microchip Technology Inc. -
Page 3: Introduction
Supported with application examples in Atmel Software Framework Kit Overview The SAM B11ZR Xplained Pro evaluation kit is a hardware platform used to evaluate the ATSAMB11ZR-210CA module. The kit offers a set of features that enable the user to get started with the ATSAMB11ZR-210CA module peripherals right away, and to understand how to integrate the device in their own design. - Page 4 ATSAMB11ZR User Guide DS70005334A-page 4 © 2017 Microchip Technology Inc.
-
Page 5: Xplained Pro Getting Started
Data Visualizer can receive data from various sources such as the Embedded Debugger Data Gateway Interface found on Xplained Pro boards and COM ports. • SAM B11ZR Xplained Pro BluSDK - Software, firmware, applications, and tools packages. User Guide DS70005334A-page 5 ©... -
Page 6: Xplained Pro
DGI. The EDBG controls two LEDs on the SAM B11ZR Xplained Pro, a power LED and a status LED. The following table provides details on how the LEDs are controlled in different operation modes. -
Page 7: Xplained Pro Analog Module
The XAM consists of: • Calibration circuitry • Voltage reference circuitry • Analog front-end: – Shunt resistors with a range selection switch – Pre-amplifier – Two active filters with gain • Control MCU User Guide DS70005334A-page 7 © 2017 Microchip Technology Inc. -
Page 8: Hardware Identification System
Pro extension is connected to an Xplained Pro evaluation kit, the information is read and sent to the Atmel Studio. The following table shows the data fields stored in the ID chip with example content. User Guide DS70005334A-page 8 © 2017 Microchip Technology Inc. -
Page 9: Power Sources
3600 Maximum current [mA] uint16_t Power Sources The SAM B11ZR Xplained Pro kit can be powered by several power sources as listed in the table below. Table 3-4. Power Sources for SAM B11ZR Xplained Pro Power input Voltage requirements Current requirements... -
Page 10: Xplained Pro Headers And Connectors
Slave select for SPI. This pin should preferably not be connected to anything else. SPI_MOSI SPI master out slave in pin. Always connected, bus type. SPI_MISO SPI master in slave out pin. Always connected, bus type. User Guide DS70005334A-page 10 © 2017 Microchip Technology Inc. - Page 11 Xplained Pro Power Header The power header can be used to connect external power to the SAM B11ZR Xplained Pro kit. The kit automatically detects and switches to any external power if supplied. The power header can also be used to supply power to external peripherals or extension boards.
-
Page 12: Hardware User Guide
Xplained Pro Extension Headers The SAM B11ZR Xplained Pro headers EXT1 and EXT3 offers access to the I/O of the microcontroller in order to expand the board e.g., by connecting extensions to the board. These headers are based on the... - Page 13 2 [GND] Ground 3 [ADC(+)] GPIO_MS3 4 [ADC(-)] GPIO_MS4 5 [GPIO1] LP_GPIO_5 GPIO/UART1_RTS EXT1 6 [GPIO2] LP_GPIO_4 GPIO/UART1_CTS EXT1 7 [PWM(+)] 8 [PWM(-)] 9 [IRQ/GPIO] AO_GPIO_1 IRQ/GPIO User Guide DS70005334A-page 13 © 2017 Microchip Technology Inc.
- Page 14 An angled 1x2, 100mil pin-header marked with MCU current measurement is located at the upper edge of the SAM B11ZR Xplained Pro. All power to the ATSAMB11ZR is exclusively routed through this header (excluding power to headers and peripherals). To measure the power consumption of the device, remove the jumper and replace it with an ammeter.
-
Page 15: Peripherals
AO_GPIO_0 EXT1 4.2.3 There is one yellow LED available on the SAM B11ZR Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. User Guide DS70005334A-page 15 ©... - Page 16 4.2.5 Battery Header The SAM B11ZR Xplained Pro has a BATTERY HEADER for connecting the battery to power the ATSAMB11ZR-210CA module. The battery header has a VCC and GND pin and is reverse polarity protected. The battery power supply can be given to the device by placing a jumper over pin 1-2 on the 3- pin VBAT SELECT header.
-
Page 17: Embedded Debugger Implementation
I²C,EXT3 Embedded Debugger Implementation SAM B11ZR Xplained Pro contains an Embedded Debugger (EDBG) that can be used to program and debug the ATSAMB11ZR using Serial Wire Debug (SWD). The Embedded Debugger also includes a Virtual Com port interface over UART, a Data Gateway Interface (DGI) over SPI, and I C , and also includes four of the SAM B11ZR GPIOs. - Page 18 SAM B11ZR Xplained Pro XAM Configuration On the SAM B11ZR Xplained Pro the MCU and the MCU peripherals (e.g. extensions) are powered by their own regulator, as shown in the following figure. All other parts of the board, mainly the embedded debugger and accompanying Xplained Pro Analog Module (XAM), are powered from a separate regulator.
- Page 19 ATSAMB11ZR Figure 4-2. SAMB11ZR XAM Implementation Block Diagram On the SAM B11ZR Xplained Pro the XAM can be used in four configurations: No current measurement or external MCU current measurement: The XAM is bypassed and thus the MCU and peripherals are supplied directly by the regulator. Set both jumpers in the "BYPASS"...
-
Page 20: Hardware Revision History
The serial number string has the following format: "nnnnrrssssssssss" n = product identifier r = revision s = serial number The product identifier for the SAM B11ZR Xplained Pro is A09-2691. Hardware Revision Revision 4 is the initially released revision. User Guide DS70005334A-page 20 ©... -
Page 21: Document Revision History
ATSAMB11ZR Document Revision History Rev A - 09/2017 Section Changes Document Initial Release User Guide DS70005334A-page 21 © 2017 Microchip Technology Inc. -
Page 22: The Microchip Web Site
Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document. Technical support is available through the web site at: http://www.microchip.com/support User Guide DS70005334A-page 22 © 2017 Microchip Technology Inc. -
Page 23: Product Identification System
Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property. • Microchip is willing to work with the customer who is concerned about the integrity of their code. User Guide DS70005334A-page 23 © 2017 Microchip Technology Inc. -
Page 24: Legal Notice
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 25: Quality Management System Certified By Dnv
® DSCs, KEELOQ code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified. User Guide DS70005334A-page 25 © 2017 Microchip Technology Inc. -
Page 26: Worldwide Sales And Service
Sweden - Stockholm Tel: 408-735-9110 Tel: 86-29-8833-7252 Tel: 66-2-694-1351 Tel: 46-8-5090-4654 Tel: 408-436-4270 Fax: 86-29-8833-7256 Fax: 66-2-694-1350 UK - Wokingham Canada - Toronto Tel: 44-118-921-5800 Tel: 905-695-1980 Fax: 44-118-921-5820 Fax: 905-695-2078 User Guide DS70005334A-page 26 © 2017 Microchip Technology Inc.
