ATmega4809 Xplained Pro
ATmega4809 Xplained Pro
Preface

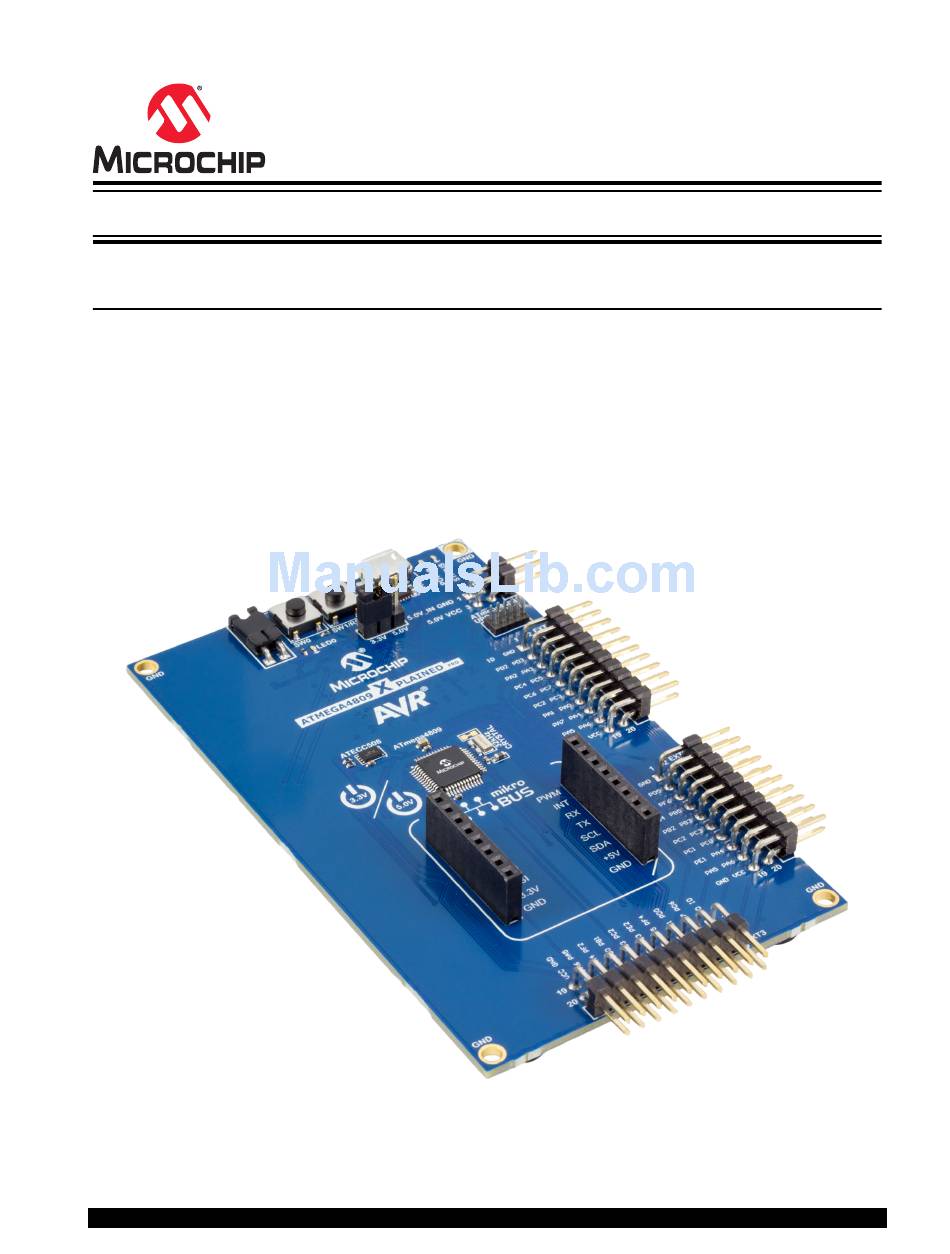

The ATmega4809 Xplained Pro evaluation kit is a hardware platform to evaluate the ATmega4809
microcontroller.
Supported by the integrated development platform Atmel Studio, the kit provides easy access to the
features of the ATmega4809 and explains how to integrate the device into a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger and no external
tools are necessary to program or debug the ATmega4809.
The Xplained Pro extension kits offer additional peripherals to extend the features of the board and ease
the development of custom designs.
User Guide
DS50002716A-page 1
©
2018 Microchip Technology Inc.
Advertisement
Table of Contents
Related Manuals for Microchip Technology ATmega4809 Xplained Pro
Summary of Contents for Microchip Technology ATmega4809 Xplained Pro
-
Page 1: Preface
ATmega4809 Xplained Pro ATmega4809 Xplained Pro Preface The ATmega4809 Xplained Pro evaluation kit is a hardware platform to evaluate the ATmega4809 microcontroller. Supported by the integrated development platform Atmel Studio, the kit provides easy access to the features of the ATmega4809 and explains how to integrate the device into a custom design. -
Page 2: Table Of Contents
ATmega4809 Xplained Pro Table of Contents Preface..........................1 1. Introduction........................4 1.1. Features............................4 1.2. Kit Overview..........................4 2. Getting Started......................6 2.1. Xplained Pro Quick Start......................6 2.2. Design Documentation and Relevant Links................. 6 3. Xplained Pro......................7 3.1. Embedded Debugger........................7 3.2. -
Page 3: User Guide Ds50002716A
ATmega4809 Xplained Pro Quality Management System Certified by DNV.............31 Worldwide Sales and Service..................32 User Guide DS50002716A-page 3 © 2018 Microchip Technology Inc. -
Page 4: Introduction
USB powered Kit Overview The ATmega4809 Xplained Pro evaluation kit is a hardware platform to evaluate the ATmega4809. The kit offers a set of features that enables the ATmega4809 user to get started with the ATmega4809 peripherals right away and to get an understanding of how to integrate the device into their own design. - Page 5 ATmega4809 Xplained Pro Introduction Figure 1-1. ATmega4809 Xplained Pro Evaluation Kit Overview CURRENT MEASUREMENT SW0 USER BUTTON HEADER RESET BUTTON DEBUG USB USER LED0 POWER HEADER TARGET VOLTAGE SELECT HEADER AVR DEBUG FOR EXTERNAL DEBUGGER ATECC508A EXTENSION 1 HEADER CRYPTO DEVICE 32.768kHz Crystal...
-
Page 6: Getting Started
• ATmega4809 Xplained Pro website - Kit information, latest user guide and design documentation. • ATmega4809 Xplained Pro on Microchip Direct - Purchase this kit on Microchip Direct. User Guide DS50002716A-page 6 © 2018 Microchip Technology Inc. -
Page 7: Xplained Pro
DGI. The EDBG controls two LEDs on the ATmega4809 Xplained Pro, a power LED and a status LED. The following table provides details on how the LEDs are controlled in different operation modes. -
Page 8: Hardware Identification System
Maximum voltage [mV] uint16_t 3600 Maximum current [mA] uint16_t Power Sources The ATmega4809 Xplained Pro kit can be powered by several power sources, as listed in the following table. Table 3-3. Power Sources for ATmega4809 Xplained Pro Power Source Voltage Requirements Current Requirements... -
Page 9: Xplained Pro Headers And Connectors
ATmega4809 Xplained Pro Xplained Pro Power Source Voltage Requirements Current Requirements Connector Marking host operation is not required. Embedded debugger 4.4V to 5.25V (according 500 mA (according to DEBUG USB to USB specification) USB specification) The kit automatically detects the available power sources and chooses which to use according to the following priority: External power. - Page 10 3.4.2 Xplained Pro Power Header The power header can be used to connect external power to the ATmega4809 Xplained Pro kit. The kit automatically detects and switches to any external power, if supplied. The power header can also be used to supply power to external peripherals or extension boards. Ensure that the total current does not exceed the recommended current limit of the on-board regulator when using the 3.3V pin.
-
Page 11: Hardware User Guide
The following sections describe the implementation of the relevant connectors, headers, and peripherals on ATmega4809 Xplained Pro, and their connection to the ATmega4809. The tables of connections in the sections also describe which signals are shared between the connectors, headers, and peripherals. The figure below shows all available headers, connectors, jumpers, and peripherals on ATmega4809 Xplained Pro. -
Page 12: Power Distribution
If not, the EDBG power LED will blink rapidly and the switch will stay closed resulting in no power provided to the ATmega4809, on-board peripherals, and connectors. As the ATmega4809 Xplained Pro can be powered by 5.0V care must be taken not to connect CAUTION any Xplained Pro extensions that do not support this voltage, doing so may result in permanent damage. -
Page 13: Connectors
ATmega4809 Xplained Pro Hardware User Guide Connectors 4.2.1 Xplained Pro Standard Extension Headers The Xplained Pro extension headers EXT1, EXT2, and EXT3 offer access to the I/O of the microcontroller to expand the board, for example, by connecting extensions to the board. These headers are based on the standard Xplained Pro extension header specification and the connections are shown in the table below. - Page 14 ATmega4809 Xplained Pro Hardware User Guide Table 4-2. Extension Header EXT2 EXT2 Pin ATmega4 Function Shared Functionality 809 Pin 1 [ID] Communication line to the ID chip on an extension board 2 [GND] Ground 3 [ADC(+)] ADC0 AIN4 4 [ADC(-)] ADC0 AIN5...
- Page 15 20 [VCC] Power for extension board 4.2.2 mikroBUS Socket ATmega4809 Xplained Pro has one mikroBUS socket that can be used with MikroElektronika click modules. The table below shows the signals connected to the mikroBUS socket. Table 4-4. mikroBUS Socket Function ATmega4809...
- Page 16 4.2.3 AVR Debugger Connector ATmega4809 Xplained Pro has a 10-pin 50-mil AVR Debug Connector (J202) with UPDI that can be used to attach external debuggers to the ATmega4809. Microchip debugging tools like the Atmel-ICE and Power Debugger can connect directly to this connector.
-
Page 17: Peripherals
4.3.1 Crystals ATmega4809 Xplained Pro has a 32.768 kHz crystal that can be used as clock source for the ATmega4809 device. There are cut-straps located close to the crystals that can be used to measure the oscillator safety factor. This is done by cutting the strap and adding a resistor across the strap. More... -
Page 18: Embedded Debugger Implementation
EXT2, DEBUG, EDBG 4.3.3 There is one yellow LED available on the ATmega4809 Xplained Pro board that can be turned ON and OFF. The LED can be activated by driving the connected I/O line to GND. Table 4-8. LED Connection ATmega4809 Pin... - Page 19 ATmega4809 Xplained Pro Hardware User Guide 4.4.1 UPDI The UPDI interface uses one pin to communicate with the target. For further information on how to use the programming and debugging capabilities of the EDBG, see Embedded Debugger. Table 4-10. UPDI Connections...
-
Page 20: Kit Modifications
LED0 Kit Modifications ATmega4809 Xplained Pro has several components that can be used to disconnect I/O pins of the ATmega4809 from connectors and on-board ICs, and to disconnect power signals. The table and figure below show components to modify connections to the EDBG and power supplies. - Page 21 ATmega4809 Xplained Pro Hardware User Guide Designat Value From Comment R526 330Ω EDBG CDC UART PC1 USART1 RxD EDBG CDC interface R527 0Ω EDBG CDC UART PC0 USART1 TxD User Guide DS50002716A-page 21 © 2018 Microchip Technology Inc.
- Page 22 ATmega4809 Xplained Pro Hardware User Guide Figure 4-3. Assembly Drawing Bottom User Guide DS50002716A-page 22 © 2018 Microchip Technology Inc.
- Page 23 4.5.1 Operation at Other Voltages The ATmega4809 Xplained Pro board is operated at 3.3V or 5.0V by default, but it also has the possibility of running at other voltages from an external supply. All signals between the EDBG and the ATmega4809 are level-shifted through level shifters compatible with supply voltages from 1.65V to 5.5V.
-
Page 24: Appendix
ATmega4809 Xplained Pro Appendix Appendix Getting Started with IAR ® ® IAR Embedded Workbench for AVR is a proprietary high-efficiency compiler which is not based on ™ GCC. Programming and debugging of Xplained Pro kits are supported in IAR Embedded Workbench for AVR using the Atmel-ICE interface. - Page 25 ATmega4809 Xplained Pro Appendix Figure 5-2. Select Debugger Figure 5-3. Configure Interface User Guide DS50002716A-page 25 © 2018 Microchip Technology Inc.
-
Page 26: Hardware Revision History
Revision 4 has a new PCB that fixes the SPI MISO/MOSI issue in revision 3. Instead of the crystal documented in Crystals, the 32.768 kHz crystal on ATmega4809 Xplained Pro revision 4 is a Kyocera Corporation ST3215SB32768E0HPWBB 9 pF crystal. This crystal configuration is not optimally matches and has a capacitance mismatch that causes the oscillation frequency to be off by ~30 ppm. -
Page 27: Revision 3
ATmega4809 Xplained Pro Hardware Revision History Revision 3 Revision 3 is the initially released revision. Engineering samples with part number ATMEGA4809-MFRES is mounted on revision 3 of ATmega4809 Xplained Pro. Pin 10 of the AVR UPDI debug connector (J202) is not connected to GND on revision 3 of ATmega4809 Xplained Pro. -
Page 28: Document Revision History
ATmega4809 Xplained Pro Document Revision History Document Revision History Doc. Rev. Date Comment 02/2018 Initial document release. User Guide DS50002716A-page 28 © 2018 Microchip Technology Inc. -
Page 29: The Microchip Web Site
ATmega4809 Xplained Pro The Microchip Web Site Microchip provides online support via our web site at http://www.microchip.com/. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information: •... -
Page 30: Legal Notice
SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 31: Quality Management System Certified By Dnv
ATmega4809 Xplained Pro © 2018, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved. ISBN: 978-1-5224-2534-2 Quality Management System Certified by DNV ISO/TS 16949 Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California ®... -
Page 32: Worldwide Sales And Service
New York, NY Sweden - Stockholm Tel: 631-435-6000 Tel: 46-8-5090-4654 San Jose, CA UK - Wokingham Tel: 408-735-9110 Tel: 44-118-921-5800 Tel: 408-436-4270 Fax: 44-118-921-5820 Canada - Toronto Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS50002716A-page 32 © 2018 Microchip Technology Inc.
