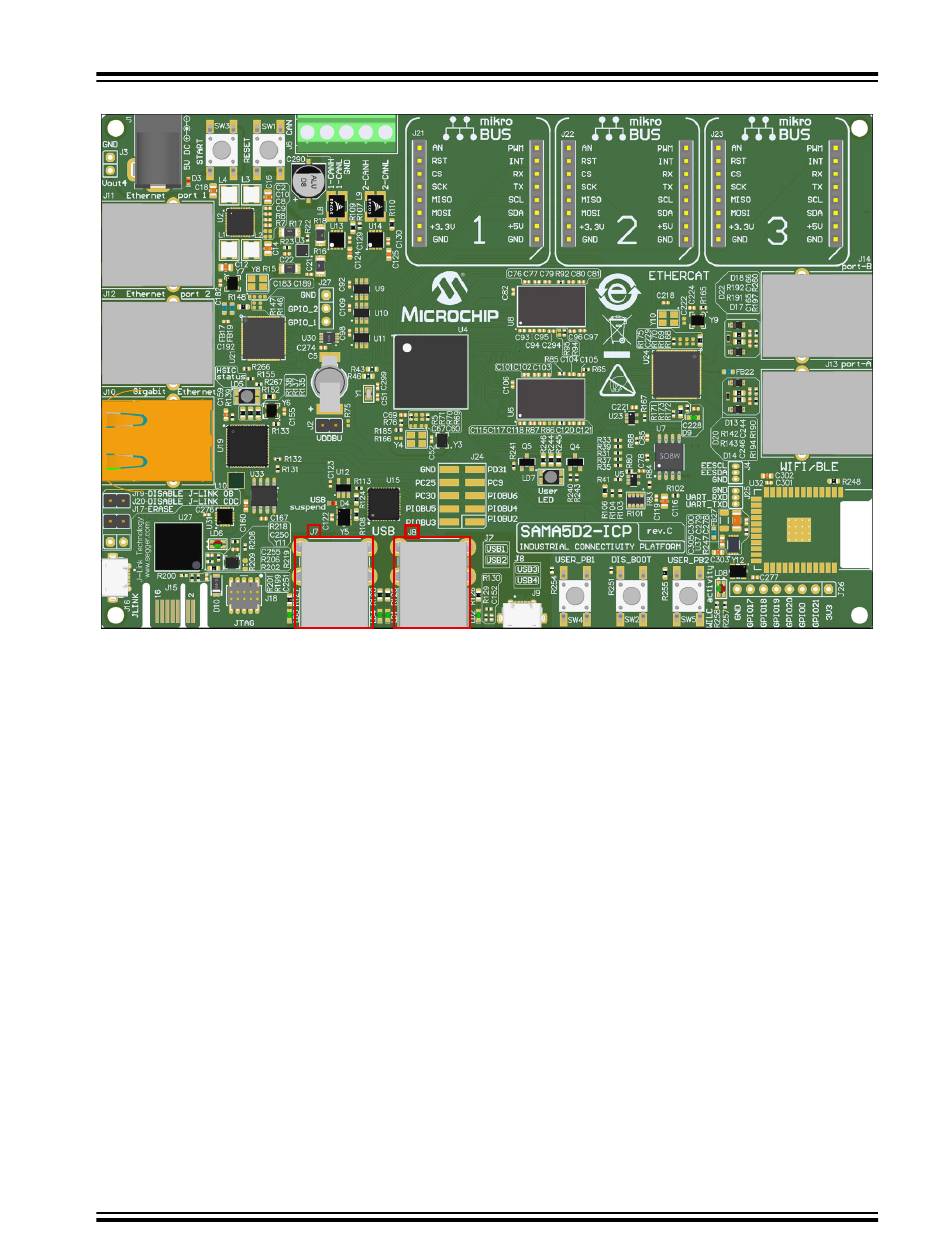

Figure 3-30. Connectors J7 and J8 Location
3.2.8.7.2 Port Power LEDs
LD1 to LD4 indicate when 5V DC port power is available to the associated downstream USB port(s).
3.2.8.7.3 Connectors
The USB2534 interface provides four connectors of type A for downstream ports. For more details on the pinout of
these connectors, refer to the USB2534 schematics.
©
