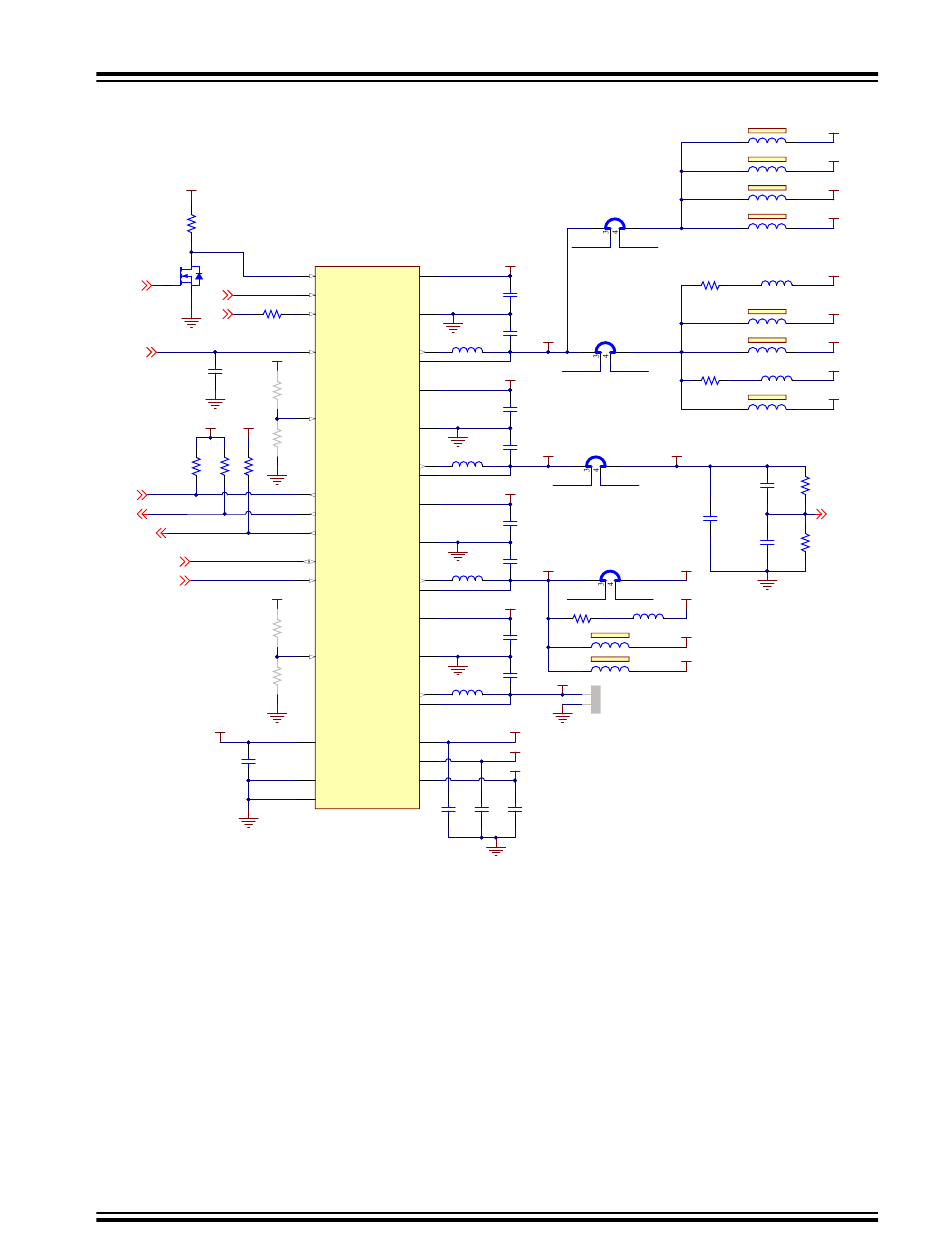

Figure 3-5. Board Power Management
VDD_MAIN_5V
R72
100k
0402
1%
3
Q6
1 BSS138
PIOBU7
2
PC31
R6
SHDN
GND
NSTART
VDD_MAIN_5V
C2
0.1uF
16V DNP
0402
GND
3V3 VDDBU
DNP
R1 R2 R256
10k 10k 10k
GND
PB18
NRST
WAKE_UP
PC28_MCP16502
PC29_MCP16502
VDD_MAIN_5V
DNP
DNP
VDD_MAIN_5V GND
C3
2.2uF
10V
0402
GND
The MCP16502 is a Fast mode Plus device, supporting data transfers at up to 1 Mbit/s as described in the I
specification. The MCP16502 is a slave-only device without clock stretching capability. The MCP16502 assumes that
2
the I C logic levels on the bus are generated by a device operating from a nominal supply voltage of 3.3V (with ±10%
tolerance). This is typically the I/O voltage generated by Buck1 (VDDIO). Therefore, VIH and VIL are not related to
the SVIN voltage value. The SDA and SCL lines should not be pulled up to the MCP16502 SVIN voltage, but to the
2
I C master interface supply voltage (3.3V nominal). The MCP16502 I
OFF state, as long as the SVIN pin is powered. In the OFF state, the VDDIO voltage from Buck1 is turned off and
2
therefore the I C pullup rail must be provided externally.
For more information, refer to the PMIC MCP16502 data sheet.
©
