AT42QT1010 - Evaluation Kit User's Guide

Preface

Important:  Notice to customers:
All documentation becomes dated, and this manual is no exception. Microchip tools and
documentation are constantly evolving to meet customer needs, so some actual dialogs and/or
tool descriptions may differ from those in this document. Please refer to our website
(www.microchip.com) to obtain the latest documentation available.
Documents are identified with a "DS" number. This number is located on the bottom of each
page, in front of the page number. The numbering convention for the DS number is
"DSXXXXXA", where "XXXXX" is the document number and "A" is the revision level of the
document.
For the most up-to-date information on development tools, see the MPLAB
Select the Help menu, and then Topics to open a list of available online help files.
Introduction

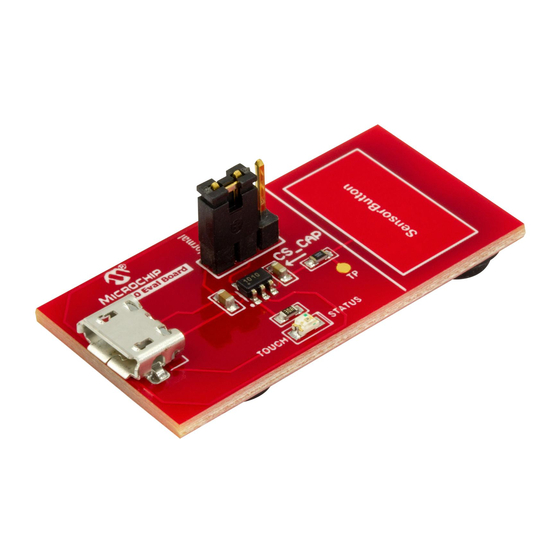

The AT42QT1010 Evaluation Kit shows touch and proximity capabilities of the AT42QT series of touch
turnkey products.
The kit has one self-capacitance touch button with the option to connect an external sensing electrode
using SMD test pad (TP). An on-board LED indicates the touch status.
Recommended Reading
For the latest information on the device, refer to
AT42QT1010.
©
2018 Microchip Technology Inc.
AT42QT1010
https://www.microchip.com/wwwproducts/en/
User Guide
®
IDE online help.
DS40002062A-page 1
