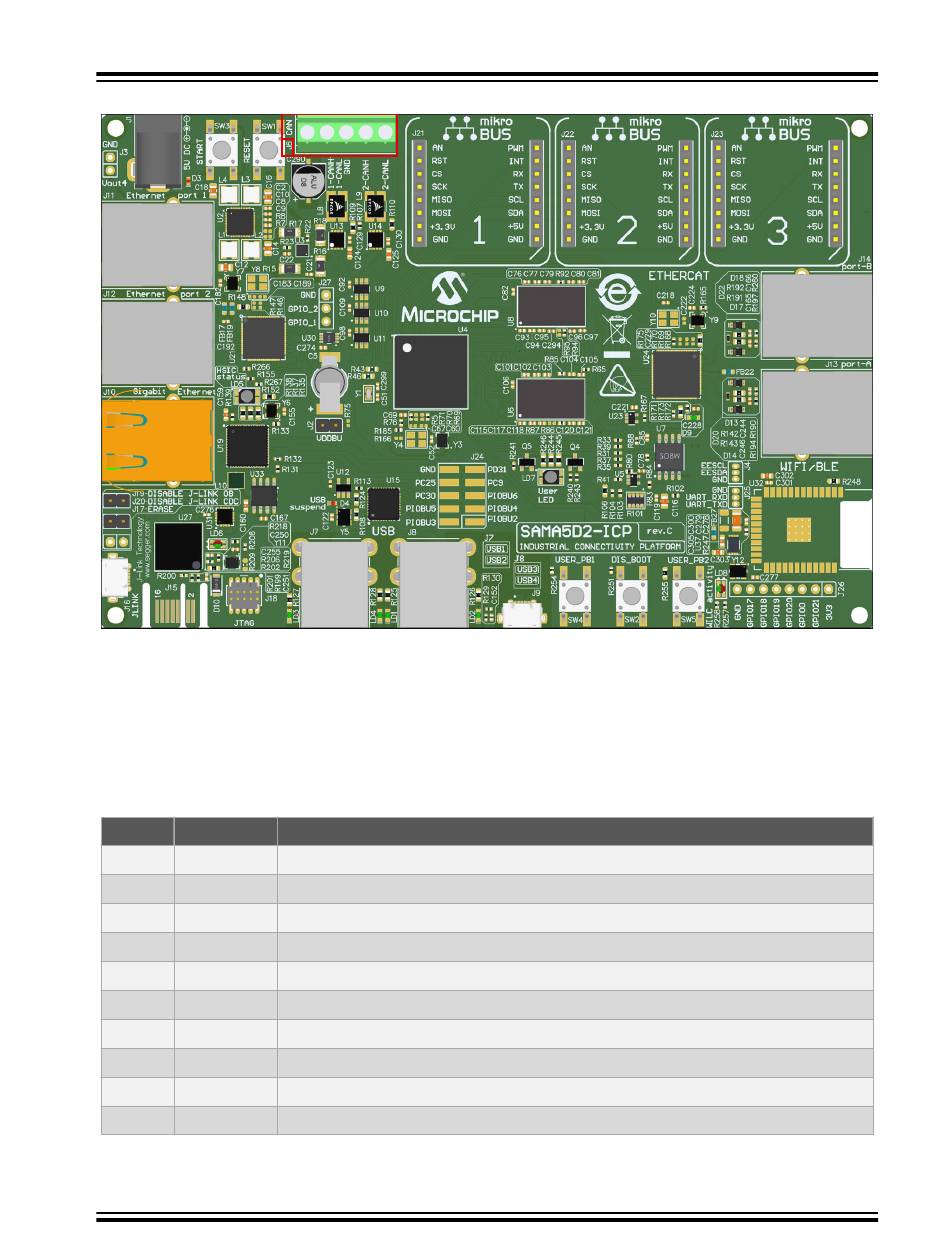

Figure 3-35. CAN Connector J6 Location
3.3

External Interfaces

3.3.1 On-Board LEDs
The board features signaling LEDs for the USB Hub, the Ethernet HSIC, the on-board J-Link, the EtherCAT interface
and the WILC3000 module. It also provides an RGB LED that is connected directly to the GPIOs of the MPU.
Table 3-20. On-Board LED Signal Descriptions
LED STATE
D3
D4
LD1 Green
LD2 Green
LD3 Green
LD4 Green
LD5
LD5 Green
LD5
LD6
©
2020 Microchip Technology Inc.
Red
Red
Red
Blue
Red
Signal Description
Main power +5V
Hub USB2534 "SUSPEND"
Power enabled on USB3
Power enabled on USB4
Power enabled on USB1
Power enabled on USB2
Ethernet HISC LAN7850 "DUPLEX/COLLISION"
Ethernet HISC LAN7850 "LINK/ACTIVITY"
Ethernet HISC LAN7850 "SUSPEND"
J-Link-OB/J-Link-CDC
User Guide
ATSAMA5D2-ICP
Board Components
